GEAR SHIFTING

RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)

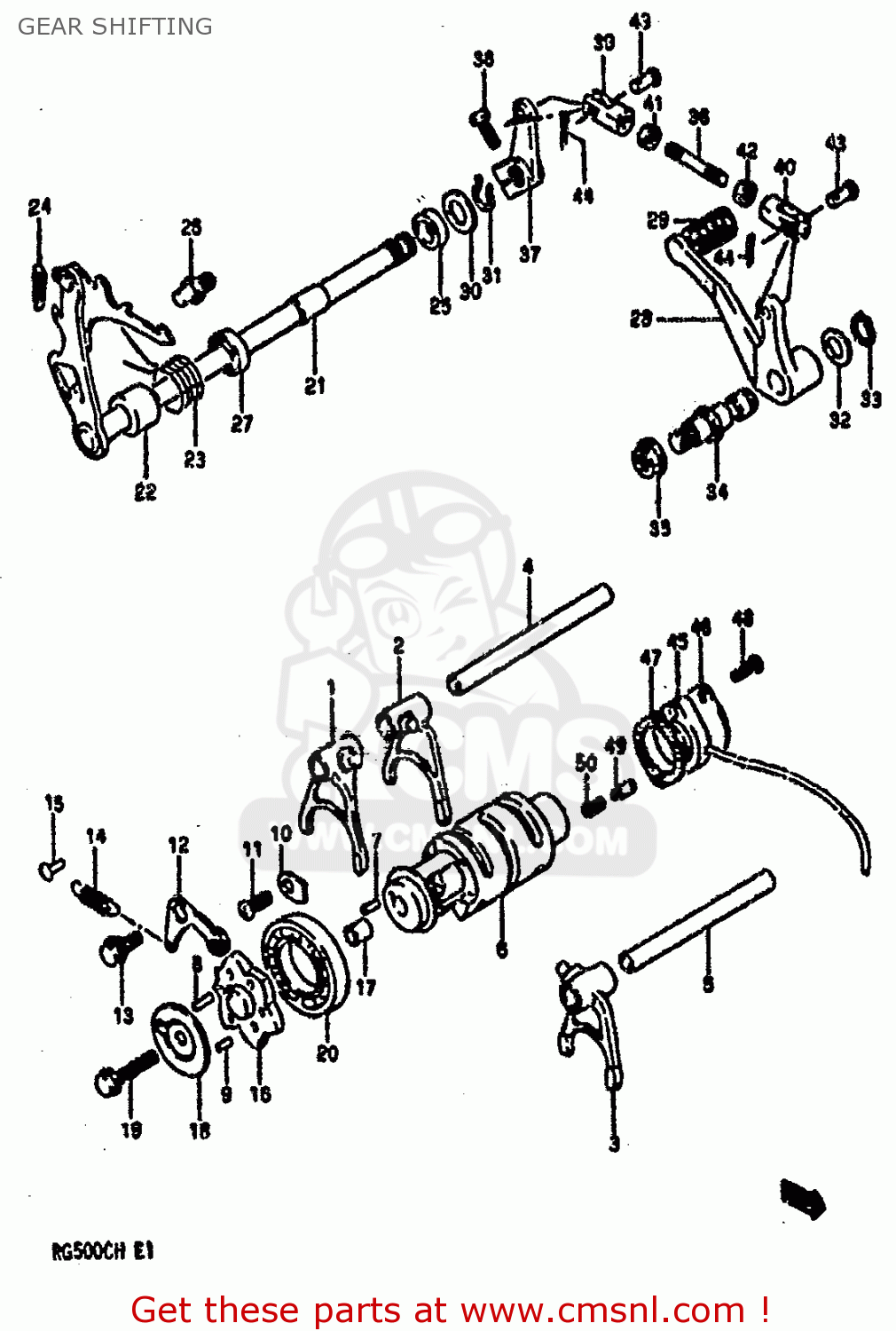

Gear shifting diagram RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)

GEAR SHIFTING RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)
GEAR SHIFTING RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)
GEAR SHIFTING RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)
prices are in EUR
ref
part #
description
quantity
1
2521120A02
ref: 1
FORK,NO.1
2521120A02
€ 69.00
2
2522120A02
ref: 2
FORK,GEAR SHIFT NO.2
2522120A02
€ 78.50
3
2523120A02
ref: 3
FORK,NO.3
2523120A02
€ 63.00
4-1
2541120A01
ref: 4-1
L:109,FOR 11300-2182
SHAFT,GEAR NO1
€ 11.50
4-2
2541120A02
ref: 4-2
L:106.5,FOR 11300-21
SHAFT,GEAR SHI
2541120A02
€ 20.50
5
2541120A10
ref: 5
SHAFT,FORK NO.2
€ 14.50
6
2531020A00
ref: 6
CAN
€ 194.50
7
0621104103
ref: 7
PIN
0621104103
€ 1.50
8
0926104002
ref: 8
ROLLER(4X13.8)
0926104002
€ 1.50
9
0926104011
ref: 9
PIN(4X11.8)
0926104011
€ 2.00
10
2474121A00
ref: 10
RETAINER
2474121A00
€ 2.00
11
0211206128
ref: 11
SCREW 6X12
0211206128
€ 2.00
12
2535020A00
ref: 12
STOPPER,CAM
€ 8.00
13
0911106019
ref: 13
BOLT
€ 1.50
14
0944307032
ref: 14
SPRING
€ 2.00
15
0922304001
ref: 15
RIVET
0922304001
€ 1.50
16
2538120A00
ref: 16
PLATE,SHIFT CAM STOPPER
2538120A00
€ 28.00
17
0421109109
ref: 17
PIN
0421109109
€ 2.00
18
2532220A00
ref: 18
RETAINER
€ 2.50
19
0151706258
ref: 19
BOLT
0151706258
€ 2.50
20
0926225002
ref: 20
BEARING
0926225002
€ 24.00
21
2551020A03
ref: 21
SHAFT,GEAR SHIFTING
€ 86.50
22
0918012083
ref: 22
SPACER(12X20X15.3)
0918012083
€ 2.50
23
0944426024
ref: 23
SPRING
€ 3.50
24
0944307030
ref: 24
SPRING
0944307030
€ 3.50
25
2552220A00
ref: 25
GUIDE,SHIFT SHAFT
2552220A00
€ 4.00
26
2567101000
ref: 26
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
27
0928512002
ref: 27
OIL SEAL
0928512002
€ 7.00
28
2561021A00
ref: 28
LEVER ASSY,GEAR SHIFTING
2561021A00
€ 54.00
29
2565249000
ref: 29
RUBBER,GEAR SHIFT PEDAL
€ 8.00
30
0916012004
ref: 30
WASHER (12.5X24X1.6)
0916012004
€ 2.00
31
0938412001
ref: 31
SPRING,RETAINER
0938412001
€ 2.00
32
0916012011
ref: 32
WASHER(12.5X20X1)
0916012011
€ 1.50
33
0833131128
ref: 33
CIRCLIP
0833131128
€ 2.00
34
2561720A00
ref: 34
SHAFT,GEAR SHIFT LEVER
2561720A00
€ 37.00
35
0831616108
ref: 35
NUT
0831616108
€ 2.00
36
2552520A00
ref: 36
ROD,GEAR SHIFT
2552520A00
€ 13.00
37
2552120A01
ref: 37
SCHAKELARM
2552120A01
€ 28.00
38
0110706207
ref: 38
BOLT
0110706207
€ 2.00
39
2552320A00
ref: 39
JOINT,GEAR SHF
2552320A00
€ 15.50
40
2552320A10
ref: 40
JOINT,GEAR SHIFTING LINK
2552320A10
€ 16.00
41
0831011068
ref: 41
NUT
0831011068
€ 2.50
42
0914006011
ref: 42
NUT
0914006011
€ 1.50
43
2552420A00
ref: 43
PIN,GEAR SHIFT LINK
2552420A00
€ 10.00
44
0938506001
ref: 44
CLIP
0938506001
€ 11.00
45
3772020A00
ref: 45
BODY,SWITCH
€ 17.00
46
3772120A00
ref: 46
PROTECTOR,SWITCH
3772120A00
€ 2.50
47
3771210200
ref: 47
GASKET (MCA)
3771210200
€ 4.50
48
0211205166
ref: 48
SCREW
€ 2.00
49
0920905011
ref: 49
PIN(5X15.5)
0920905011
€ 2.00
50
0944004010
ref: 50
SPRING
0944004010
€ 1.50
