CRANKCASE COVER

RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)

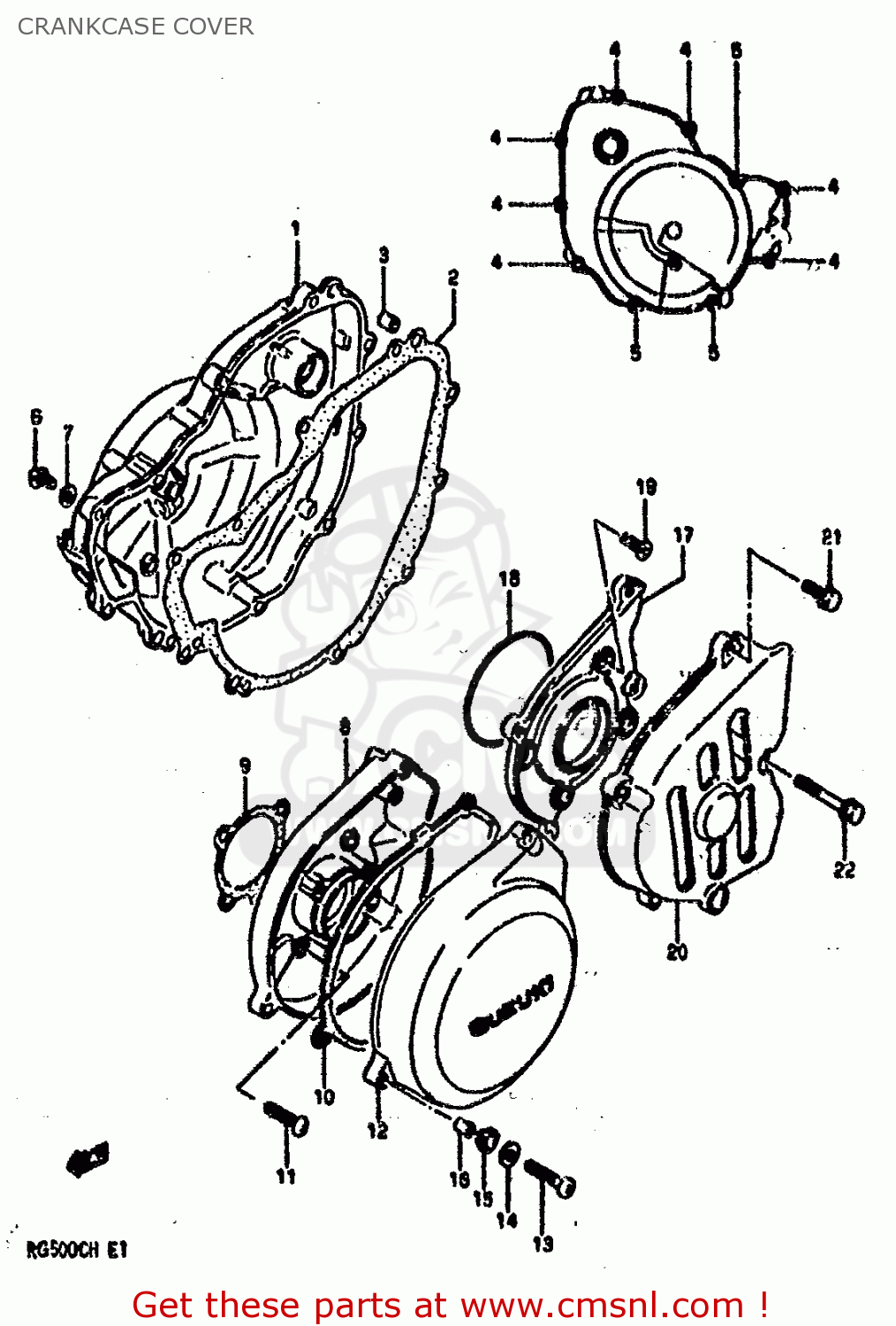

Crankcase cover diagram RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)

prices are in EUR

ref

part #

description

quantity

1134120A03
ref: 1

COVER,CLUTCH

€ 294.00

1148220A01
ref: 2

GASKET,CLUTCH COVER

€ 15.50

0421109129
ref: 3

PIN

€ 2.00

0154706254
ref: 4

BOLT 6X25

€ 2.50

0154706354
ref: 5

BOLT 6X35

€ 3.00

0912806043
ref: 6

SCREW (6X10)

€ 2.00

0916806004
ref: 7

GASKET(6.2X11X1).2 (NAS)

€ 1.50

1135120A02
ref: 8

COVER,MAGNETO INNER

€ 339.50

1148320A00
ref: 9

GASKET,MAGNETO COVER (MCA)

€ 6.50

1138920A00
ref: 10

CUSHION,MAGNETO COVER

€ 8.50

0211206258
ref: 11

SCREW

€ 2.00

1135220A02
ref: 12

COVER,MAGNETO OUTER

€ 79.50

0211206305
ref: 13

SCREW

€ 2.50

0916006092
ref: 14

WASHER

€ 2.50

0916109003
ref: 15

WASHER

€ 2.50

0918006155
ref: 16

SPACER

€ 5.50

1136120A02
ref: 17

COVER,SPROCKET INNER

€ 75.50

0928076007
ref: 18

O RING(D:2.4,ID:76.8)

€ 6.00

0212206208
ref: 19

SCREW

€ 2.00

1136220A01
ref: 20

COVER,SPROCKET OUTER

€ 46.50

0154706205
ref: 21

BOLT 6X20

€ 2.50

0154706004
ref: 22

BOLT

€ 0.00
