FRONT FENDER

RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)

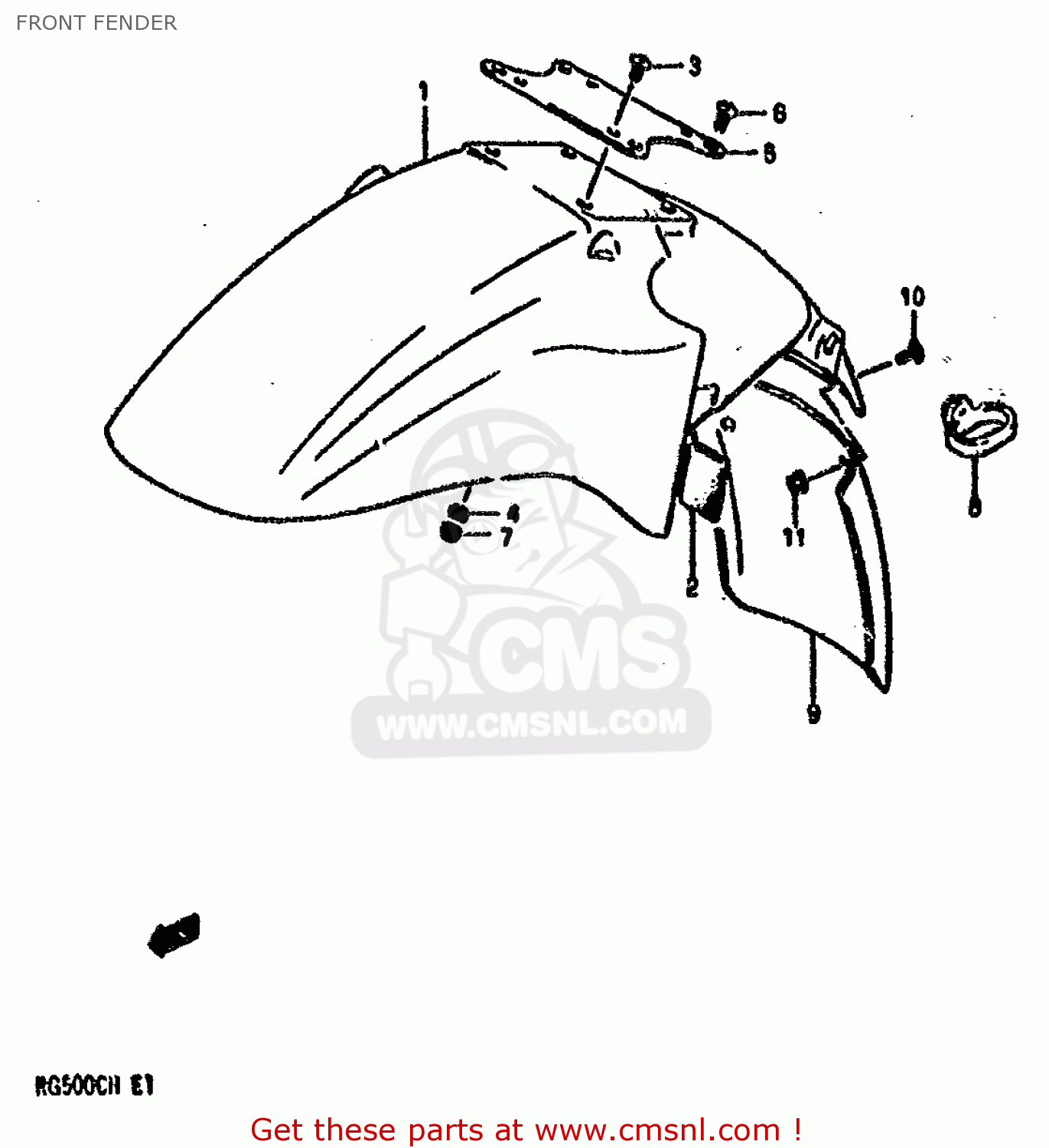

Front fender diagram RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)

prices are in EUR

ref

part #

description

quantity

1-1

5311120A0114L
ref: 1-1
MODEL G

FENDER,FRONT

€ 151.00

1-2

5311120A0130H
ref: 1-2
MODEL H

FENDER,FRONT (WHITE)

€ 151.00

1-3

5311120A1114L
ref: 1-3
MODEL G E15,E24

FENDER,FRONT (WHITE)

€ 151.00

1-4

5311120A1130H
ref: 1-4
MODEL H E15

FENDER,FRONT (WHITE)

€ 151.00

1-5

5311120A2014L
ref: 1-5
MODEL G E22

FENDER,FRONT (WHITE)

€ 151.00

1-6

5311120A2030H
ref: 1-6
MODEL H E22

FENDER,FRONT (WHITE)

€ 151.00

5314520A00
ref: 2

CUSHION,FR FENDER

€ 2.50

0913905025
ref: 3

SCREW(5X14)

€ 2.00

0916905008
ref: 4

WASHER

€ 3.00

5311420A00
ref: 5

BRACE,FRONT FENDER

€ 24.00

0913906027
ref: 6

SCREW(6X12)

€ 3.00

0831931056
ref: 7

NUT

€ 3.00

5862121203A
ref: 8

GUIDE,CABLE

€ 7.50

5311821A01
ref: 9
E15,E24

EXTENSION,FRONT FENDER

€ 0.00

0214205124
ref: 10
E15,E24

SCREW, FRONT & REAR

€ 1.50

0831931055
ref: 11
E15,E24

NUT

€ 3.00
