OIL TANK

RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)

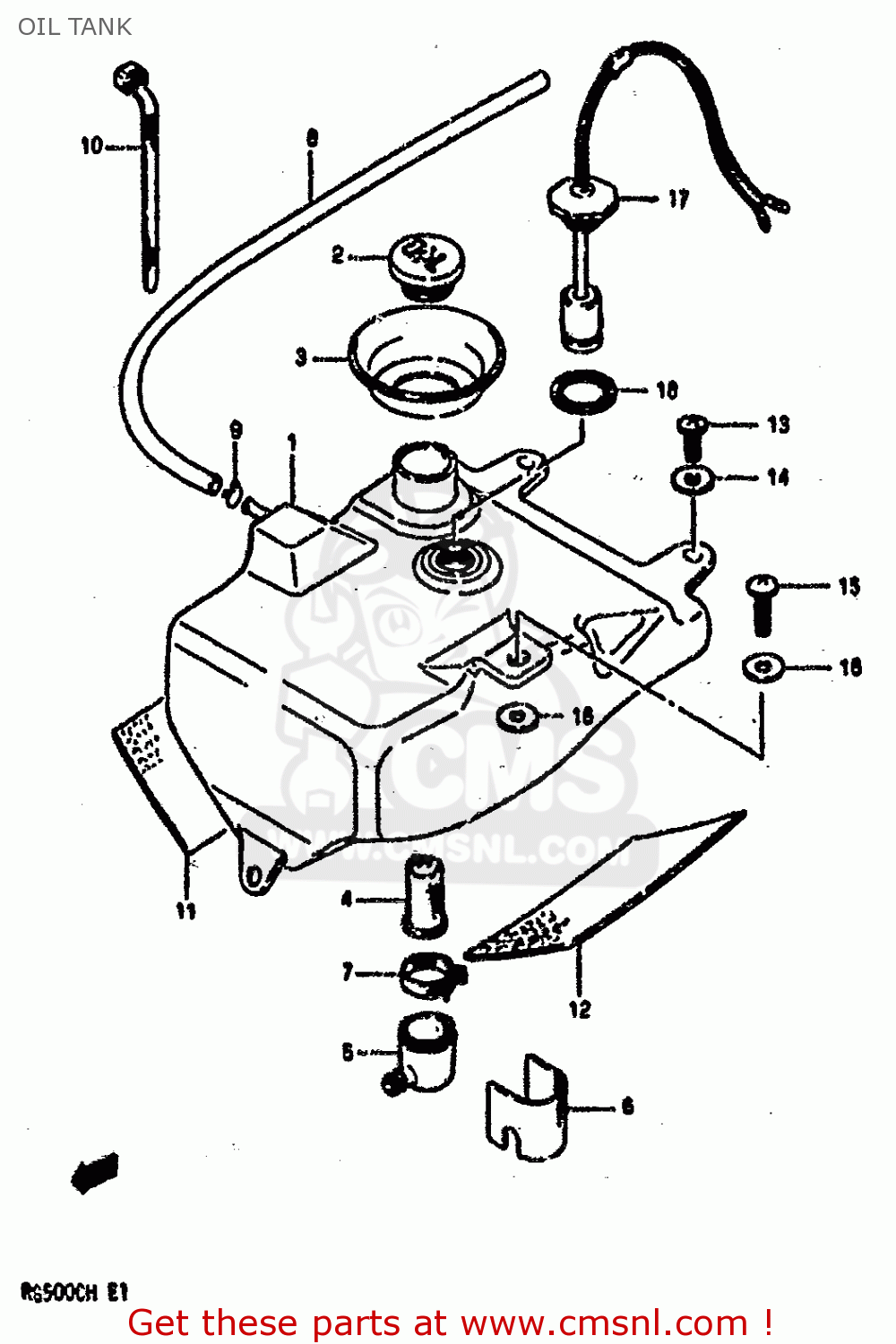

Oil tank diagram RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)

prices are in EUR

ref

part #

description

quantity

4461020A02
ref: 1

TANK,OIL

€ 53.50

4465120A00
ref: 2

CAP,OIL TANK

€ 4.00

4466748700
ref: 3

RUBBER,OIL TANK INLET

€ 6.50

4472120A00
ref: 4

BODY,OIL FILTER

€ 47.00

4473120A00
ref: 5

BODY,OIL OUTLET

€ 10.00

4469320A00
ref: 6

HEAT SHIELD,OUTLET

€ 0.00

0940126401
ref: 7

CLIP

€ 3.00

4476120A00
ref: 8

HOSE,BREATHER

€ 19.50

0940108401
ref: 9

CLIP

€ 1.50

0940714402
ref: 10

CLAMP

€ 4.00

4469420A00
ref: 11

HEAT SHIELD,OIL TANK RH

€ 17.00

4469520A00
ref: 12

HEAT SHIELD,OIL TANK LH

€ 18.00

0214206167
ref: 13

SCREW

€ 2.00

0916006006
ref: 14

WASHER

€ 2.00

0214206257
ref: 15

SCREW

€ 3.00

0916006006
ref: 16

WASHER

€ 2.00

3788020A00
ref: 17

SWITCH ASSY,OIL LEVEL

€ 40.50

4464331000
ref: 18

GASKET (NAS)

€ 2.50
