Buy Suzuki RG Parts Online


FUEL TANK

RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)

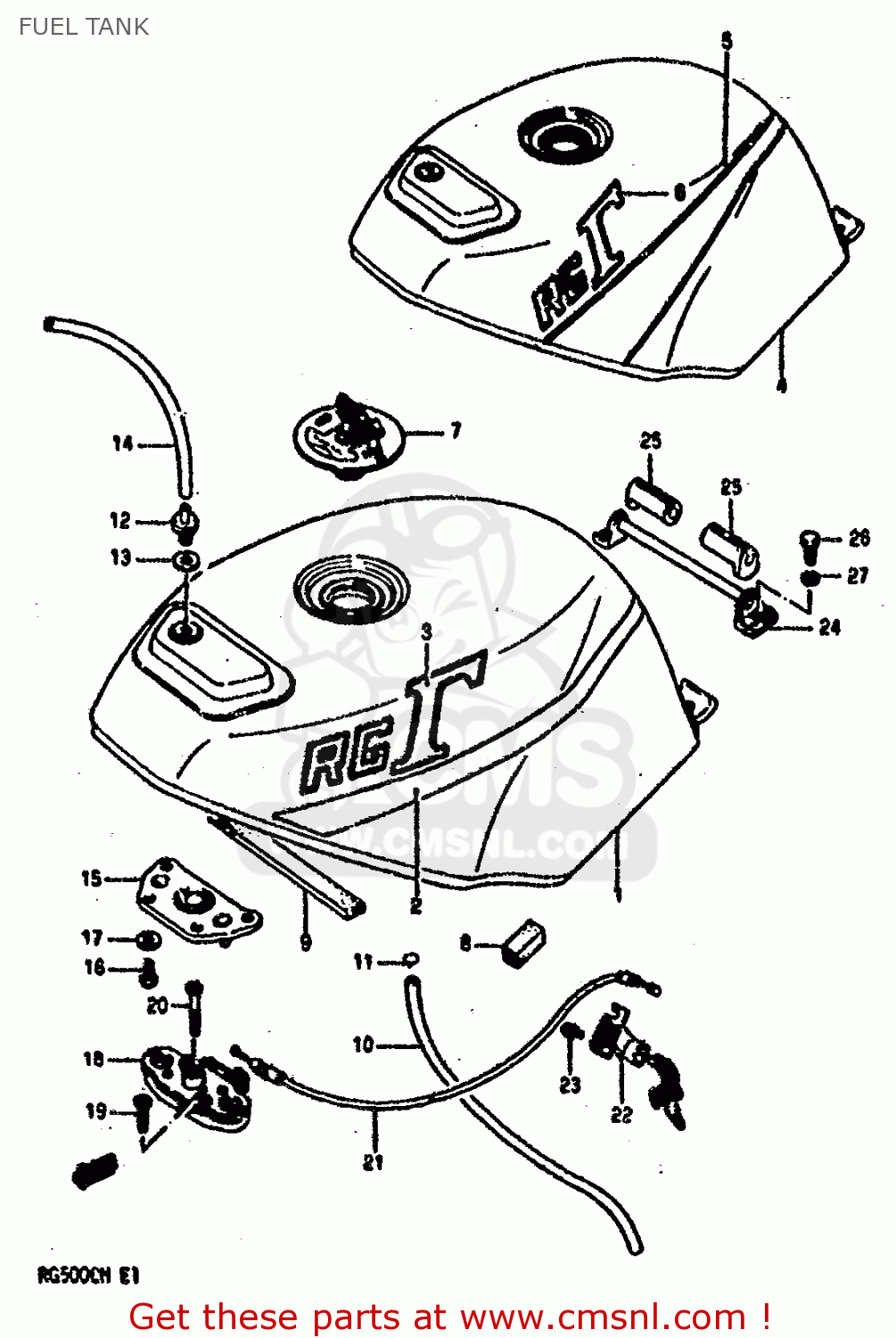

Fuel tank diagram RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)

FUEL TANK RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)
FUEL TANK RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)
FUEL TANK RG500 1986 (G) (E01 E02 E04 E06 E15 E16 E17 E21 22 24 25 34 39)
prices are in EUR
ref
part #
description
quantity
1-1
4410020A007GF
ref: 1-1
MODEL G
TANK ASSY,FUEL
€ 745.00
1-2
4410020A207GF
ref: 1-2
MODEL G E22
TANK ASSY,FUEL
€ 0.00
1-3
4410020A007TV
ref: 1-3
MODEL G
TANK ASSY,FUEL
€ 745.00
1-4
4410020A207TV
ref: 1-4
MODEL G E22
TANK ASSY,FUEL
€ 0.00
2-1
6811020A00765
ref: 2-1
MODEL G FOR 7GF
TAPE SET,FUEL TANK (BLUE)
€ 25.50
2-2
6811020A0024M
ref: 2-2
MODEL G FOR 7TV
TAPE SET,FUEL TANK (GRAY)
€ 0.00
3-1
68111167107TA
ref: 3-1
MODEL G FOR 7GF
EMBLEM
€ 12.00
3-2
681111671073F
ref: 3-2
MODEL G FOR 7TV
EMBLEM
681111671073F
€ 12.00
4-1
4410021A5085K
ref: 4-1
MODEL H
TANK ASSY,FUEL
€ 745.00
4-2
4410021A6085K
ref: 4-2
MODEL H E22
TANK ASSY,FUEL
€ 745.00
4-3
4410021A509EG
ref: 4-3
MODEL H
TANK ASSY,FUEL
€ 745.00
4-4
4410021A609EG
ref: 4-4
MODEL H E22
TANK ASSY,FUEL
€ 745.00
5-1
6811021A3089R
ref: 5-1
MODEL H FOR 85K
TAPE SET,FUEL TANK
€ 88.00
5-2
6811021A309EN
ref: 5-2
MODEL H FOR 9EG
TAPE SET,FUEL TANK
€ 86.50
6-1
681111671073F
ref: 6-1
MODEL H FOR 85K
EMBLEM
681111671073F
€ 12.00
6-2
68111167109EM
ref: 6-2
MODEL H FOR 9EG
EMBLEM
€ 12.00
7
4420020A00KEY
ref: 7
CAP SET,FUEL TANK
4420020A00KEY
€ 174.00
8
4454520A00
ref: 8
CUSHION,FUEL TANK SIDE
4454520A00
€ 5.50
9-1
1373620A01
ref: 9-1
MODEL G
CUSHION,AIR CLEANER
€ 8.00
9-2
1373620A02
ref: 9-2
MODEL H
CUSHION,AIR CLEANER
€ 8.00
10
0934305165
ref: 10
HOSE,FUEL
0934305165
€ 13.00
11
0940108401
ref: 11
CLIP
0940108401
€ 1.50
12
4424040A00
ref: 12
PLUG, FUEL TANK BREATHER
€ 36.00
13
0916812012
ref: 13
GASKET(12.5X20X2.5) (NAS)
0916812012
€ 2.00
14
0934305286
ref: 14
HOSE
0934305286
€ 4.50
15
4419020A01
ref: 15
PLATE,TANK LOCK
€ 0.00
16
0211206128
ref: 16
SCREW 6X12
0211206128
€ 2.00
17
0832121067
ref: 17
WASHER,LOCK
0832121067
€ 2.50
18
4522020A00
ref: 18
BRACKET,SEAT SUPPORT,RIGHT
€ 79.50
19
0212206308
ref: 19
SCREW
€ 2.00
20
0212206408
ref: 20
SCREW,CENTER
€ 2.50
21
4528020A00
ref: 21
CABLE,TANK LOCK
4528020A00
€ 16.00
22
9570013600KEY
ref: 22
LOCK, SEAT
€ 79.50
23
0712005105
ref: 23
BOLT
€ 2.00
24
4416020A01
ref: 24
PIPE,FUEL TANK REAR
€ 7.50
25
4454220A01
ref: 25
CUSHION,FUEL TANK RR
4454220A01
€ 7.50
26
0912806005
ref: 26
SCREW
0912806005
€ 2.50
27
0832121067
ref: 27
WASHER,LOCK
0832121067
€ 2.50
