AIR CLEANER (MODEL H/J)
RM125 1987 (H) (E01 E02 E04 E24)

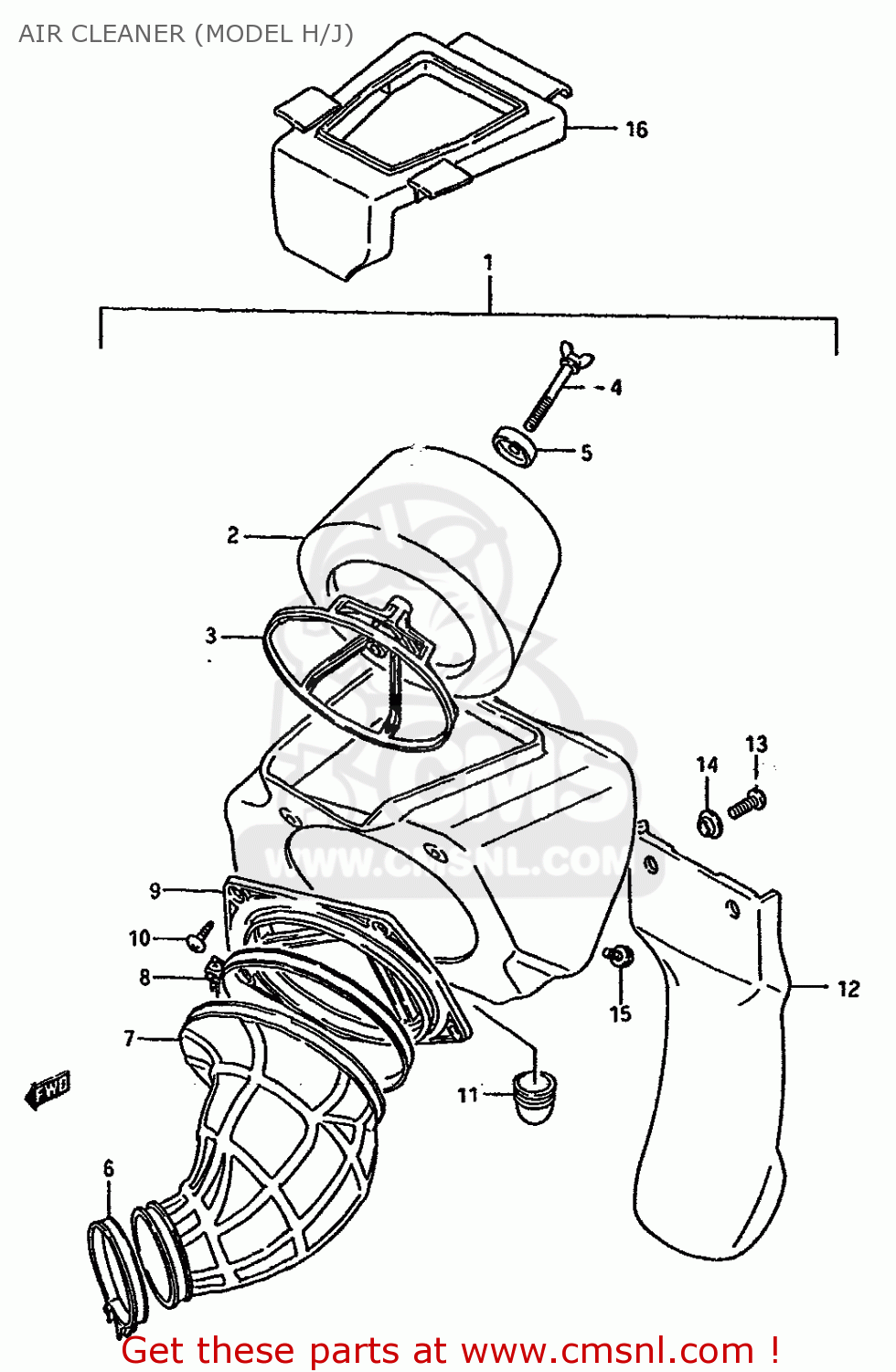

Air cleaner (model h/j) diagram RM125 1987 (H) (E01 E02 E04 E24)
AIR CLEANER (MODEL H/J) RM125 1987 (H) (E01 E02 E04 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370001B21
ref: 1-1
MODEL H
CLEANER ASSEMBLY,AIR (ASB)
€ 281.50
1-2
1370001B30
ref: 1-2
MODEL J
CLEANER ASSEMBLY,AIR
€ 303.00
2
1378000B20
ref: 2
FILTER,AIR CLEANER
€ 48.50
3
1379100B20
ref: 3
HOLDER,FILTER
€ 18.50
4
1383102B00
ref: 4
BOLT,WING
€ 4.00
5
1379213A01
ref: 5
WASHER,AIR CLEANER
€ 3.00
6-1
0940264208
ref: 6-1
MODEL H
CLAMP
€ 6.00
6-2
0940268208
ref: 6-2
MODEL J
CLAMP
€ 6.00
7-1
1388101B21
ref: 7-1
MODEL H
TUBE,AIR CLEANER OUTLET
€ 36.00
7-2
1388101B30
ref: 7-2
MODEL J
TUBE,AIR CLEANER OUTLET
€ 50.50
8
1382601B20
ref: 8
CLAMP
€ 9.00
9
1379001B20
ref: 9
HOLDER,FILTER
€ 26.50
10
0324105125
ref: 10
SCREW
€ 1.50
11
1387318900
ref: 11
HOSE,AIR CLEANER DRAIN
€ 4.00
12
1373801B00
ref: 12
GUARD,MUD
€ 19.00
13
0214206167
ref: 13
SCREW
€ 2.00
14
1383802B00
ref: 14
COLLAR
€ 2.50
15-1
0151706164
ref: 15-1
MODEL H
BOLT
€ 2.50
15-2
0151706123
ref: 15-2
MODEL J
BOLT
€ 2.50
16-1
1373900B20
ref: 16-1
MODEL H
GUARD,MUD
€ 27.50
16-2
1373900B22
ref: 16-2
MODEL J
MUD GUARD,B
€ 27.50
