FRONT CALIPER (MODEL H/J)

RM125 1987 (H) (E01 E02 E04 E24)

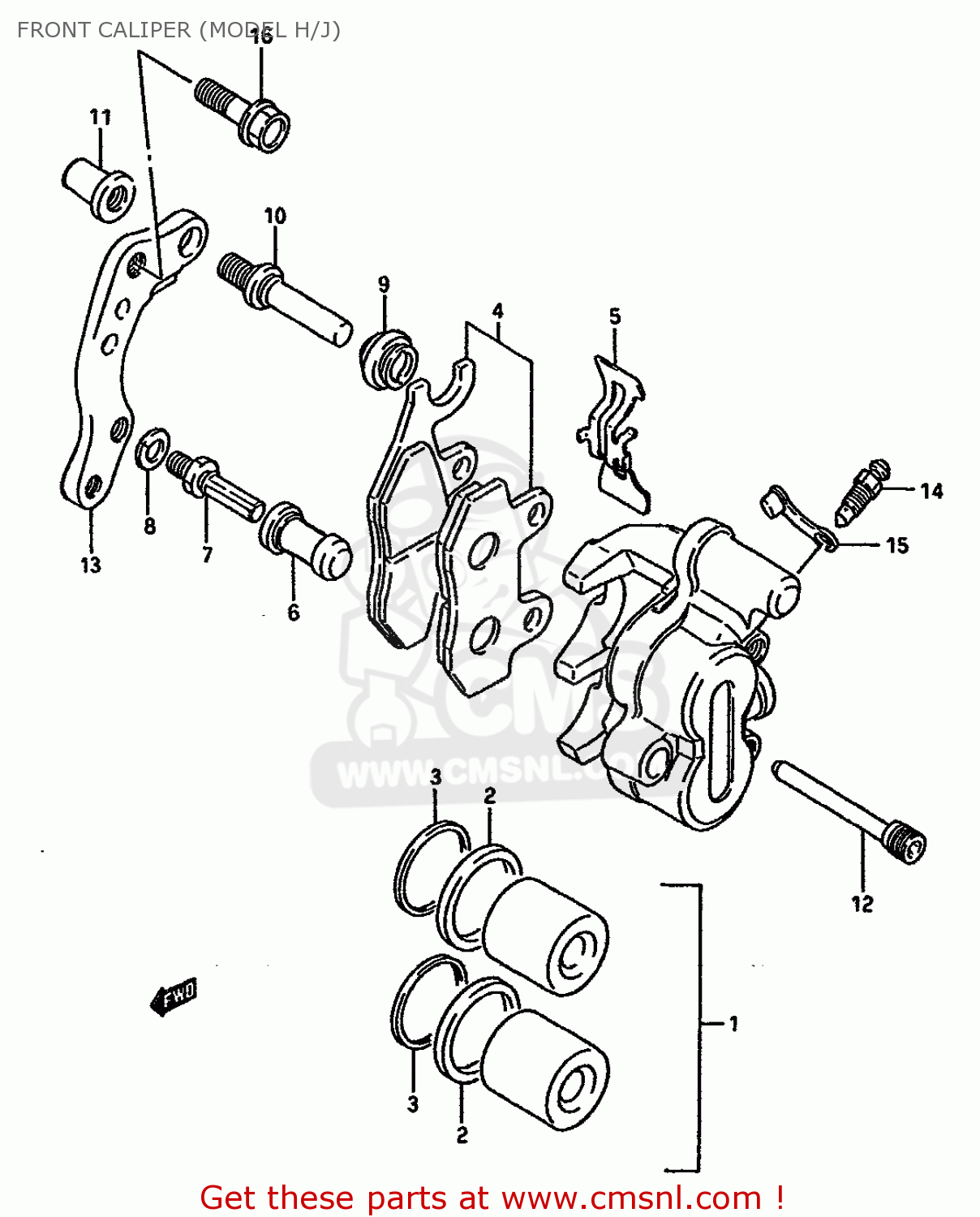

Front caliper (model h/j) diagram RM125 1987 (H) (E01 E02 E04 E24)

FRONT CALIPER (MODEL H/J) RM125 1987 (H) (E01 E02 E04 E24)
FRONT CALIPER (MODEL H/J) RM125 1987 (H) (E01 E02 E04 E24)
FRONT CALIPER (MODEL H/J) RM125 1987 (H) (E01 E02 E04 E24)
prices are in EUR
ref
part #
description
quantity
0
5930000B21
ref: 0
MODEL H
CALIPER ASSEMBLY,FRONT,LEFT
€ 384.00
0
5930026C00
ref: 0
MODEL J
CALIPER ASSY,LH
5930026C00
€ 384.00
1-1
5930000810
ref: 1-1
MODEL H,TO 59300-268
CALIPER ASSEMBLY,FRONT,LEFT
5930000810
€ 66.50
1-2
5930026840
ref: 1-2
MODEL J
PISTON SET
5930026840
€ 66.50
2
5910700B20
ref: 2
SEAL,PISTON
5910700B20
€ 13.00
3
5910800B20
ref: 3
SEAL,DUST
5910800B20
€ 10.50
4-1
5930000821
ref: 4-1
MODEL H
CALIPER ASSEMBLY,FRONT,LEFT
5930000821
€ 137.50
4-2
5930026830
ref: 4-2
MODEL J
PAD SET (MCA)
5930026830
€ 137.50
5
5931500B20
ref: 5
SPRING
5931500B20
€ 8.00
6
5938613A00
ref: 6
BOOT
5938613A00
€ 6.50
7
5938213A00
ref: 7
BOLT,PIN
5938213A00
€ 6.50
8
5931413A00
ref: 8
WASHER,WAVE
5931413A00
€ 2.00
9
5930314500
ref: 9
BOOT
5930314500
€ 5.50
10
5938700B20
ref: 10
PIN,SLIDE
5938700B20
€ 12.50
11
5938800B20
ref: 11
NUT
5938800B20
€ 10.00
12
5934500B20
ref: 12
PIN,HOLDER
5934500B20
€ 9.50
13
5935100B20
ref: 13
BRACKET
5935100B20
€ 60.50
14
5912101A00
ref: 14
BLEEDER
5912101A00
€ 8.50
15
5912201A00
ref: 15
CAP,BLEEDER
5912201A00
€ 4.50
16
0910308226
ref: 16
BOLT(8X24)
0910308226
€ 2.00
