MUFFLER (MODEL H/J)
RM125 1987 (H) (E01 E02 E04 E24)

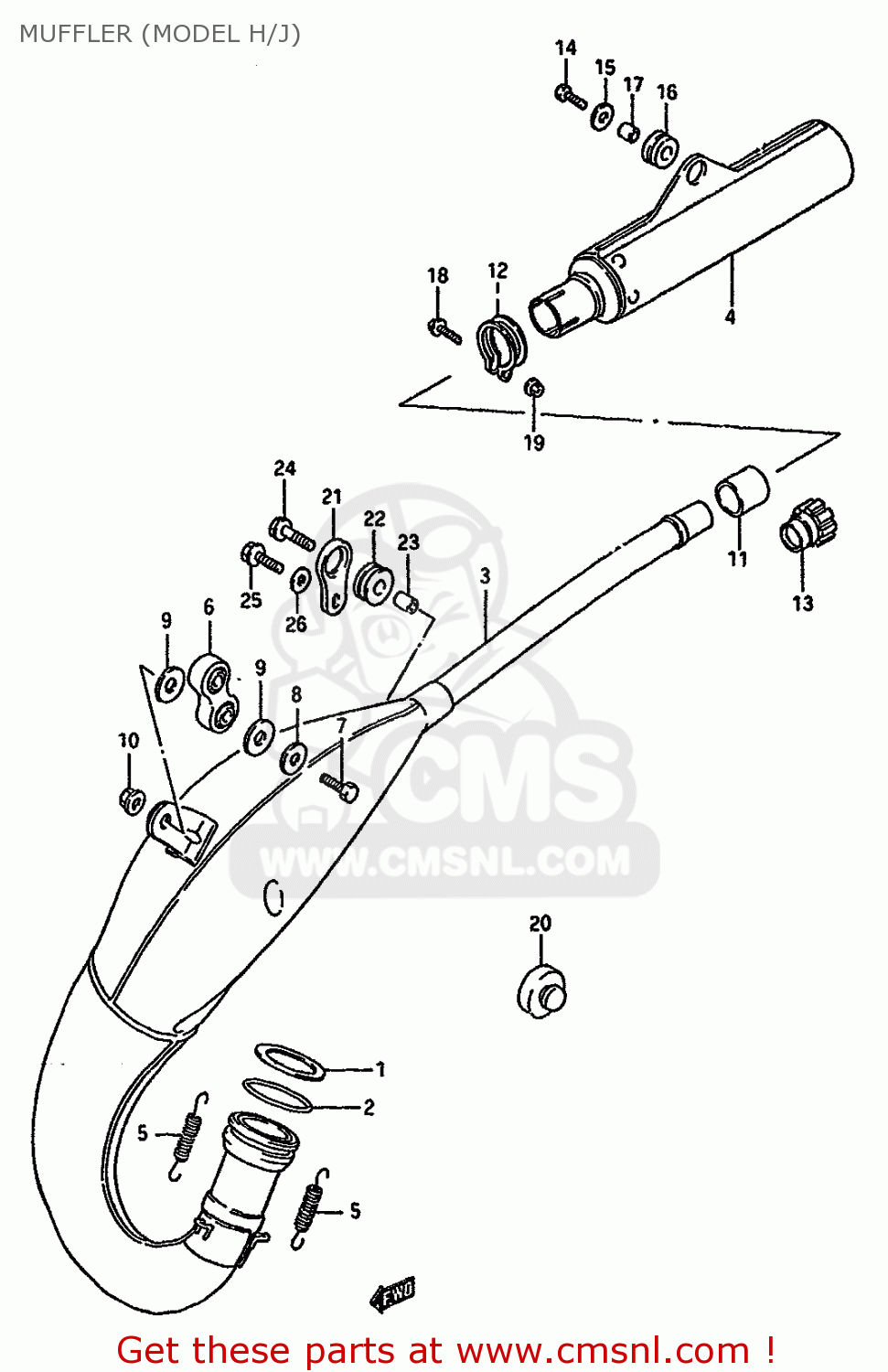

Muffler (model h/j) diagram RM125 1987 (H) (E01 E02 E04 E24)
MUFFLER (MODEL H/J) RM125 1987 (H) (E01 E02 E04 E24)
×
prices are in EUR
ref
part #
description
quantity
1
1417201B21
ref: 1
GASKET,EXHAUST PIPE (NAS)
€ 1.50
2
1417101B21
ref: 2
O-RING,EXHAUST
€ 19.00
3-1
1431001B40
ref: 3-1
MODEL H
MUFFLER,1ST
€ 341.00
3-2
1431001B61
ref: 3-2
MODEL J
MUFFLER,1ST
€ 341.00
4-1
1433001B05
ref: 4-1
MODEL H
MUFFLER,2ND
€ 275.00
4-2
1433001B22
ref: 4-2
MODEL J
MUFFLER,2ND
€ 96.50
5-1
0944312034
ref: 5-1
MODEL H
SPRING
€ 6.50
5-2
0944310034
ref: 5-2
MODEL J
SPRING
€ 6.50
6
1477040000
ref: 6
DAMPER,MUFFLER
€ 139.00
7
0910008176
ref: 7
BOLT(8X32)
€ 2.00
8
0916008035
ref: 8
WASHER
€ 2.00
9
0916113001
ref: 9
WASHER(13X28X1.6)
€ 2.50
10
0831626088
ref: 10
NUT
€ 3.00
11
1477114510
ref: 11
MODEL H
GASKET,SECOND MUFFLER (NAS)
€ 20.00
12
1477201B00
ref: 12
MODEL H
CLAMP,SECOND MUFFLER
€ 3.50
13
1477101B00
ref: 13
MODEL J
CONNECTOR,MUFFLER
€ 33.50
14-1
0910006039
ref: 14-1
MODEL H
BOLT 6X22
€ 2.50
14-2
0154706207
ref: 14-2
MODEL J
BOLT
€ 2.50
15
0916006004
ref: 15
WASHER (6.5X24X1.6)
€ 1.50
16
0932009027
ref: 16
CUSHION
€ 4.00
17
0918006090
ref: 17
SPACER (6.4X9X10.5)
€ 2.00
18
0151706358
ref: 18
MODEL H
BOLT 6X35
€ 2.50
19
0831626068
ref: 19
MODEL H
NUT 6MM
€ 2.00
20
0932110020
ref: 20
MODEL H
CUSHION
€ 8.50
21
1476101B00
ref: 21
MODEL J
PLATE,MUFFLER MTG
€ 10.50
22
1476201B00
ref: 22
MODEL J
CUSHION,MUFFLER
€ 3.00
23
0918006062
ref: 23
MODEL J
SPACER (6.4X9X13.5)
€ 2.00
24
0154706257
ref: 24
MODEL J
BOLT
€ 2.50
25
0154706167
ref: 25
MODEL J
BOLT
€ 2.00
26
0832221067
ref: 26
MODEL J
WASHER
€ 2.00
