REAR CALIPERS (MODEL J)
RM125 1987 (H) (E01 E02 E04 E24)

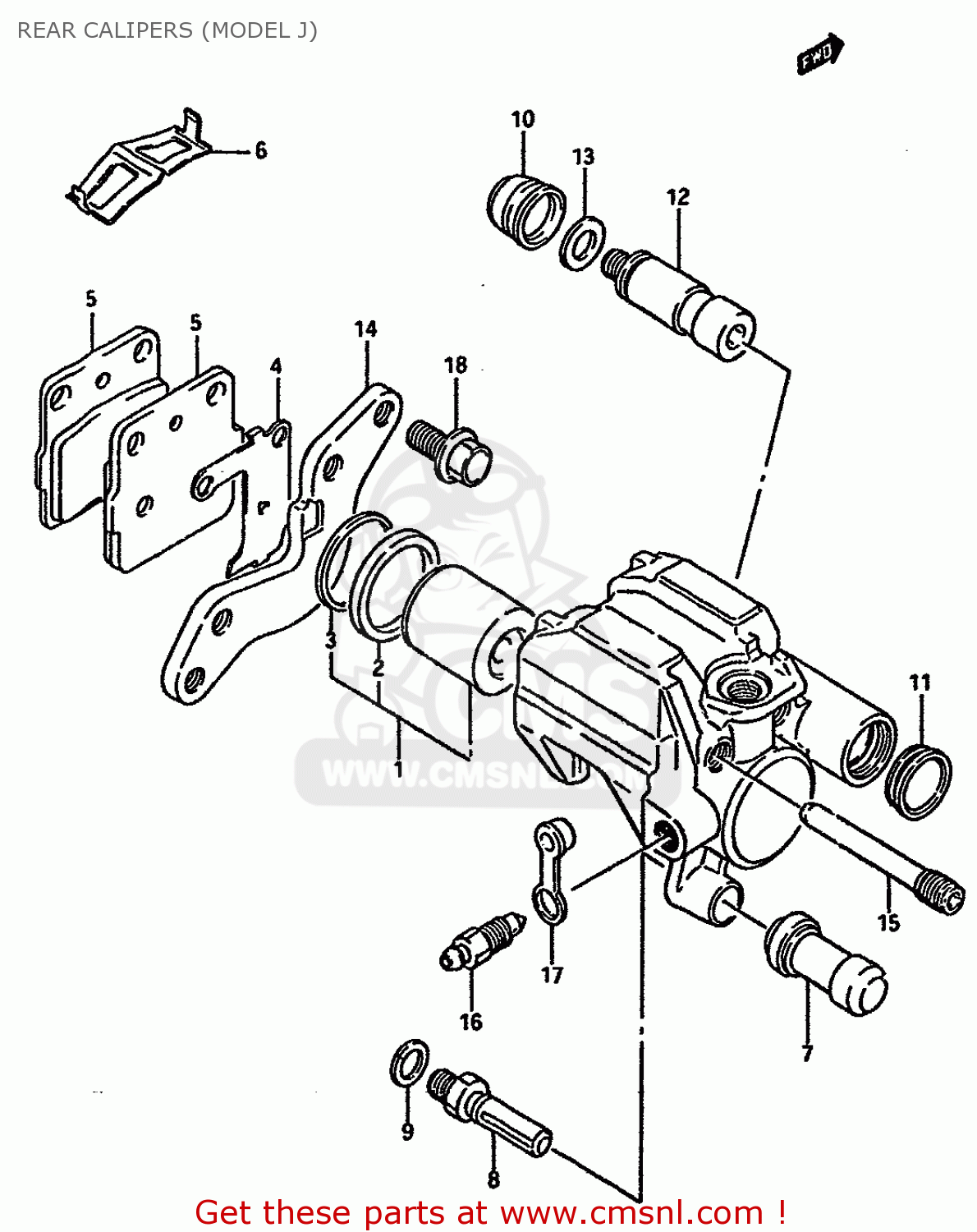

Rear calipers (model j) diagram RM125 1987 (H) (E01 E02 E04 E24)
REAR CALIPERS (MODEL J) RM125 1987 (H) (E01 E02 E04 E24)
×
prices are in EUR
ref
part #
description
quantity
0
6910026C00
ref: 0
CALIPER ASSEMBLY,REAR
€ 322.00
1
6910000820
ref: 1
PISTON SET
€ 30.50
2
5910700B20
ref: 2
SEAL,PISTON
€ 13.00
3
5910800B20
ref: 3
SEAL,DUST
€ 10.50
4
6937200B20
ref: 4
SHIM
€ 7.50
5
6914026C00
ref: 5
PAD (NAS)
€ 49.00
6
5931513A00
ref: 6
SPRING,PAD
€ 4.50
7
5938613A00
ref: 7
BOOT
€ 6.50
8
5938213A00
ref: 8
BOLT,PIN
€ 6.50
9
5931413A00
ref: 9
WASHER,WAVE
€ 2.00
10
5930313A00
ref: 10
BOOT,PIN
€ 5.00
11
5938413A00
ref: 11
DUST SEAL
€ 5.00
12
5930513A01
ref: 12
PIN,SLIDE
€ 10.50
13
5930613A00
ref: 13
SPRING,FRICTION
€ 2.50
14
6935100B20
ref: 14
BRACKET
€ 50.00
15
6934500B20
ref: 15
PIN
€ 9.50
16
5912101A00
ref: 16
BLEEDER
€ 8.50
17
5912201A00
ref: 17
CAP,BLEEDER
€ 4.50
18
0910308238
ref: 18
BOLT L:21
€ 4.50
