REAR BRAKE
RM125 1987 (H) (E01 E02 E04 E24)

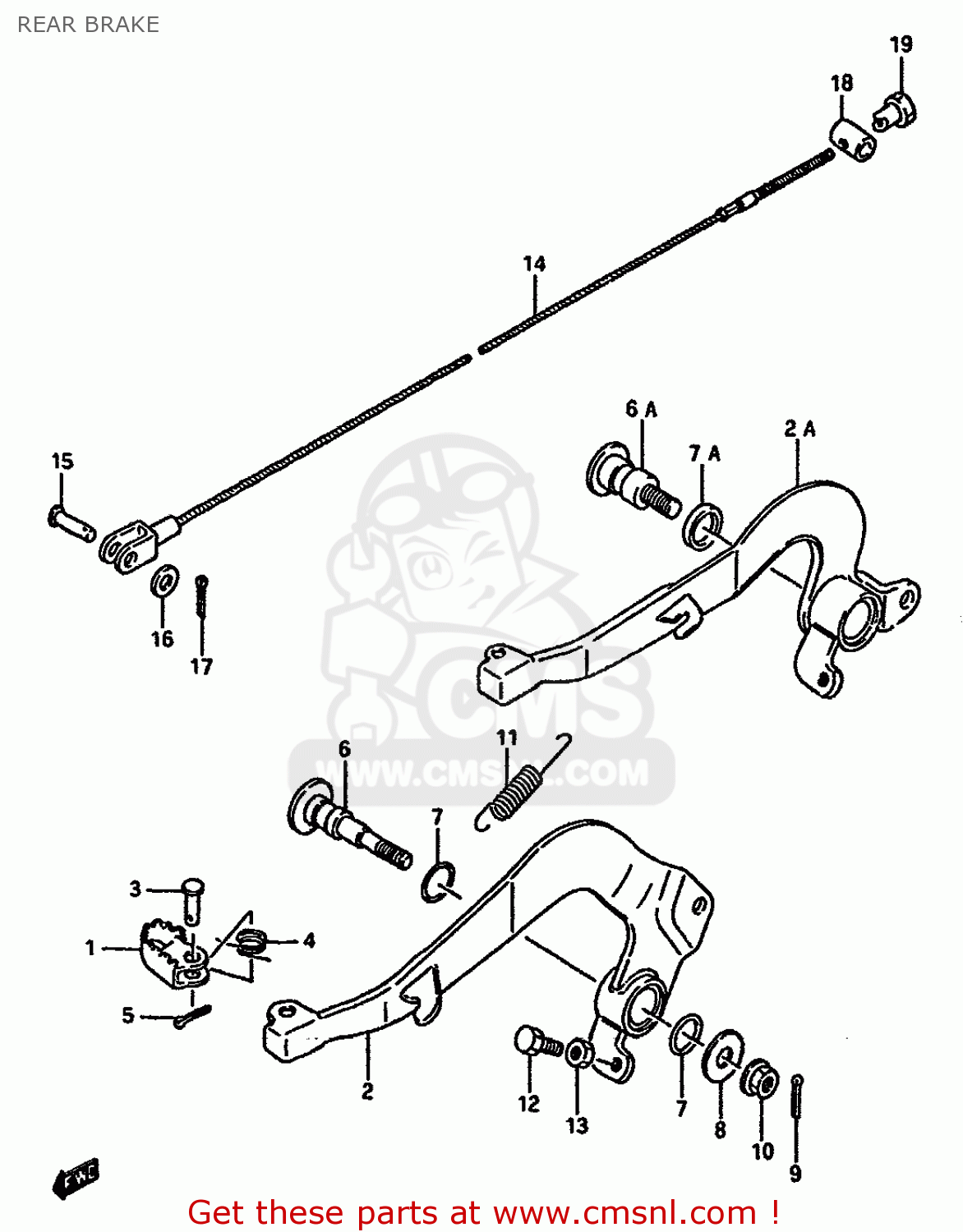

Rear brake diagram RM125 1987 (H) (E01 E02 E04 E24)
REAR BRAKE RM125 1987 (H) (E01 E02 E04 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
4311014130
ref: 1-1
MODEL G
PEDAL,BRAKE
€ 6.00
1-2
4311001B10
ref: 1-2
MODEL H/J
PEDAL,BRAKE
€ 10.00
2-1
4312001B01
ref: 2-1
MODEL G
ARM,BRAKE PEDAL
€ 44.50
2-2
4312001B10
ref: 2-2
MODEL H
ARM,BRAKE PEDAL
€ 44.50
2A
4312001B30
ref: 2A
MODEL J
ARM COMP,BRAKE PEDAL
€ 41.50
3-1
0920006038
ref: 3-1
MODEL G
PIN
€ 2.00
3-2
0920006060
ref: 3-2
MODEL H/J
PIN
€ 5.50
4-1
0944411004
ref: 4-1
MODEL G
SPRING
€ 3.00
4-2
0944411005
ref: 4-2
MODEL H/J
SPRING
€ 3.00
5
0411120158
ref: 5
PIN
€ 1.50
6-1
4314201B00
ref: 6-1
MODEL G
SHAFT,BRAKE PEDAL
€ 14.50
6-2
4314201B10
ref: 6-2
MODEL H
SHAFT,BRAKE PEDAL
€ 14.50
6A
4314201B30
ref: 6A
MODEL J
SHAFT,BRAKE PEDAL
€ 15.00
7
0928015001
ref: 7
MODEL G/H
O-RING,BOSS
€ 2.00
7A
0928415005
ref: 7A
MODEL J
SEAL,OIL(15X20X3)
€ 5.50
8
0821110261
ref: 8
WASHER
€ 2.50
9
0411120208
ref: 9
PIN 20X20
€ 1.50
10
0831931085
ref: 10
MODEL G/H
NUT
€ 2.50
11-1
0944313020
ref: 11-1
MODEL G
SPRING BRAKE PEDAL
€ 3.50
11-2
0944313023
ref: 11-2
MODEL H/J
SPRING BRAKE PEDAL
€ 3.50
12-1
0110706205
ref: 12-1
MODEL G
BOLT
€ 2.00
12-2
0110706207
ref: 12-2
MODEL H
BOLT
€ 2.00
12-3
0910006009
ref: 12-3
MODEL J
BOLT(6X23)
€ 1.50
13-1
0831011065
ref: 13-1
MODEL G
NUT
€ 2.00
13-2
0831012068
ref: 13-2
MODEL H/J
NUT
€ 2.50
14
5851001B00
ref: 14
MODEL G/H
CABLE,RR BRAKE
€ 16.00
15
0920005001
ref: 15
MODEL G/H
PIN(L:17.5)
€ 1.50
16
0832221067
ref: 16
MODEL G/H
WASHER
€ 2.00
17
0411120208
ref: 17
MODEL G/H
PIN 20X20
€ 1.50
18
0920913004
ref: 18
MODEL G/H
PIN
€ 7.50
19
0915006009
ref: 19
MODEL G/H
NUT (6MM)
€ 3.50
