KICK STARTER

RM125 1987 (H) (E01 E02 E04 E24)

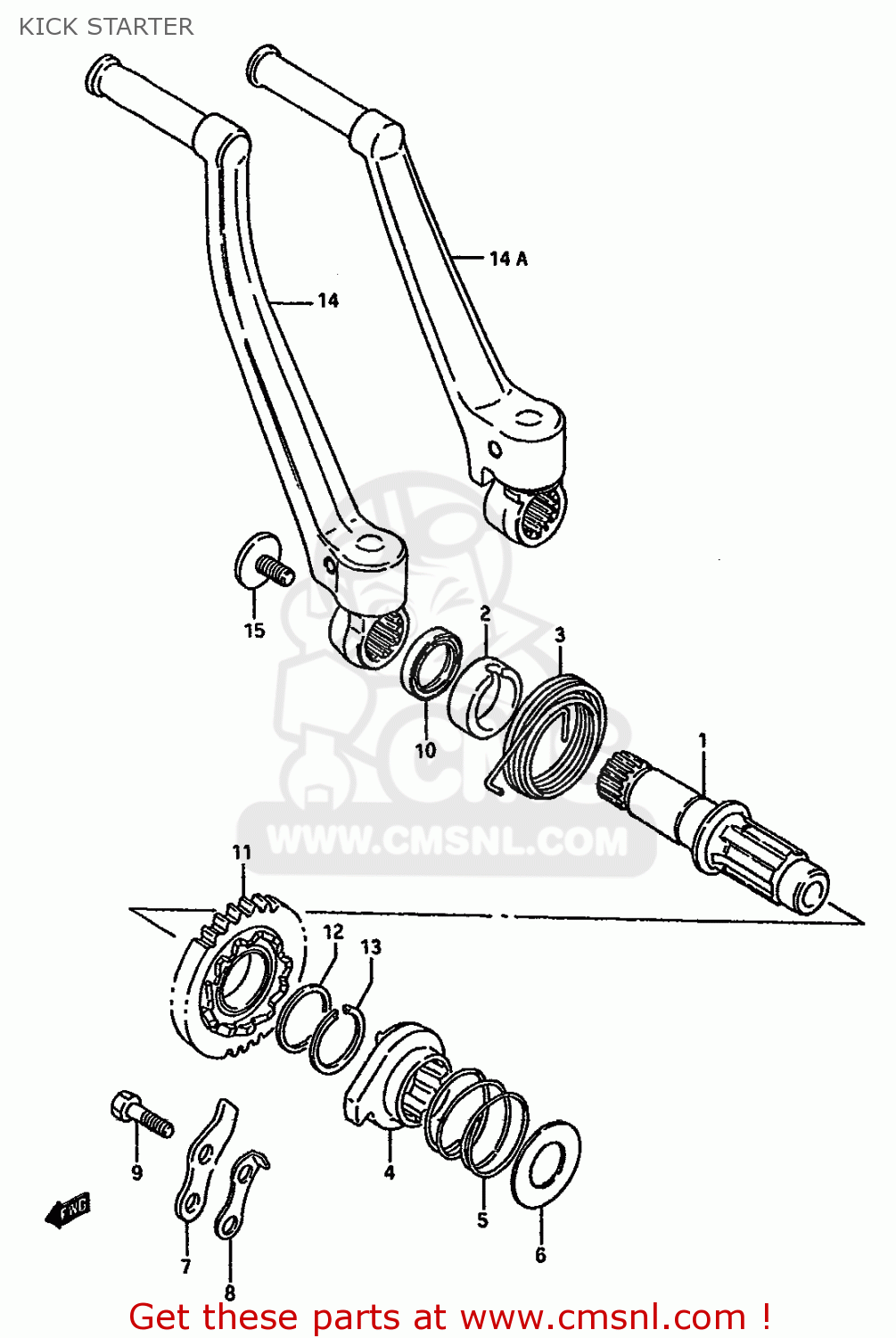

Kick starter diagram RM125 1987 (H) (E01 E02 E04 E24)

KICK STARTER RM125 1987 (H) (E01 E02 E04 E24)

KICK STARTER RM125 1987 (H) (E01 E02 E04 E24)

prices are in EUR

ref

part #

description

quantity

1

2621101B00
ref: 1

SHAFT,KICK STARTER

€ 69.00

2

2622101B00
ref: 2

GUIDE,KICK STARTER SHAFT

€ 3.00

3

0944848007
ref: 3

SPRING

€ 8.50

4

2623122A10
ref: 4

STARTER,KICK

€ 47.50

5

0944032002
ref: 5

SPRING

€ 2.00

6

0821117341
ref: 6

WASHER

€ 2.00

7

2623240200
ref: 7

GUIDE,KICK STARTER

€ 3.00

8

2623340200
ref: 8

STOPPER,KICK STARTER

€ 2.50

9

0110706166
ref: 9

BOLT

€ 2.00

10

0928320031
ref: 10

SEAL,OIL(20X27X5)

€ 5.00

11

2624014100
ref: 11

GEAR,KICK STARTER DRIVE

€ 57.00

12

0821122281
ref: 12

SHIM

€ 4.00

13

0938022006
ref: 13

CIRCLIP

€ 3.00

14-1

2630014500
ref: 14-1
MODEL G

LEVER ASSEMBLY,KICK STARTER

€ 298.00

14-2

2630001B10
ref: 14-2
MODEL H

LEVER ASSEMBLY,KICK STARTER

€ 298.00

14A

2630001B40
ref: 14A
MODEL J

LEVER ASSEMBLY,KICK STARTER

€ 135.50

15-1

0910608050
ref: 15-1
MODEL G

BOLT 8X14

€ 7.00

15-2

0910608073
ref: 15-2
MODEL H/J

BOLT

€ 6.50
