CRANKSHAFT (MODEL G)
RM125 1987 (H) (E01 E02 E04 E24)

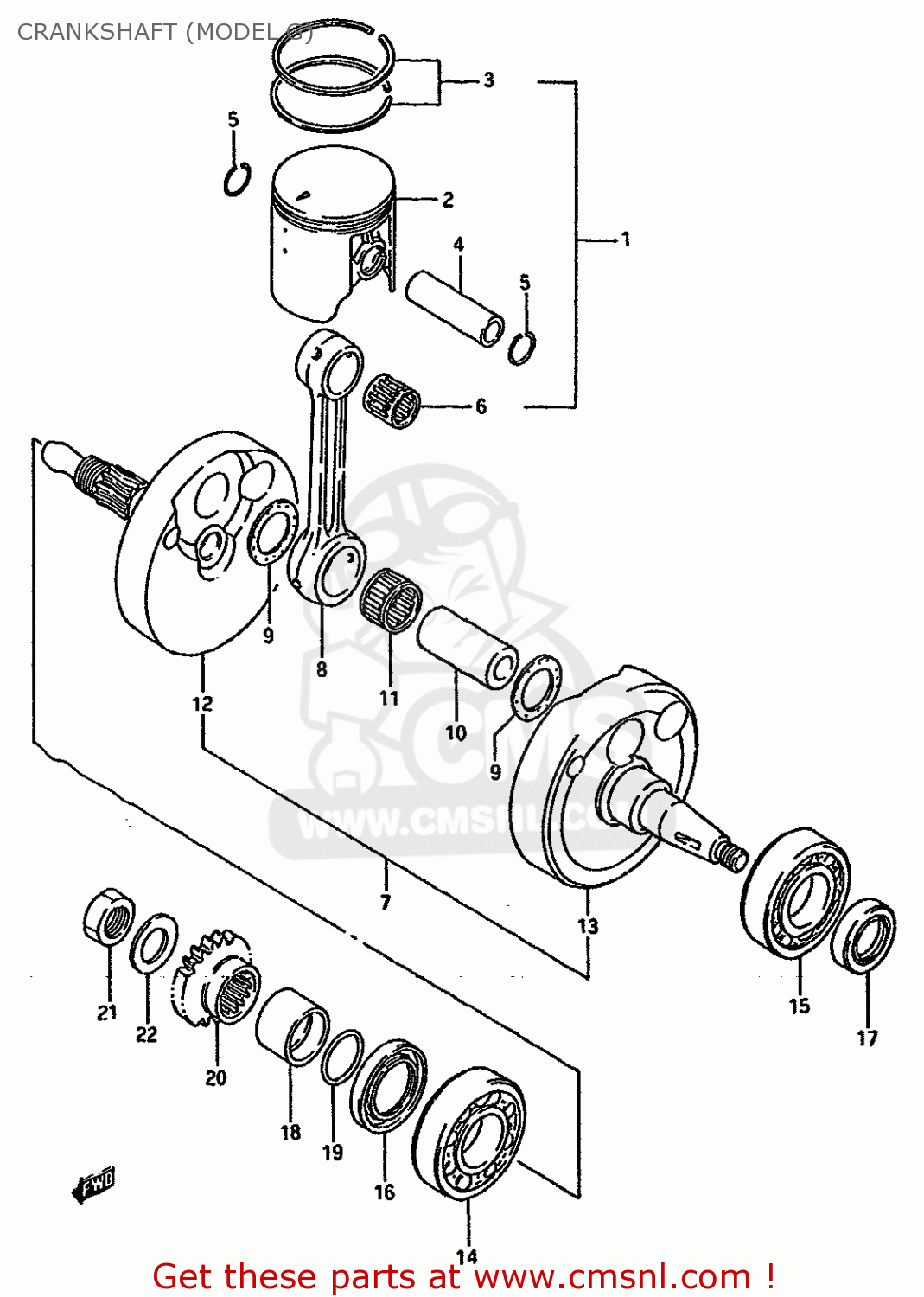

Crankshaft (model g) diagram RM125 1987 (H) (E01 E02 E04 E24)
CRANKSHAFT (MODEL G) RM125 1987 (H) (E01 E02 E04 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
1210114852
ref: 1-1
OPT
PISTON SET(STD)
€ 140.00
1-2
1210114852025
ref: 1-2
OPT
PISTON SET (OS:0.25)
€ 109.50
1-3
1210114852050
ref: 1-3
OPT
PISTON SET (OS:0.5)
€ 107.50
2-1
1211014513
ref: 2-1
PISTON (54.00MM)
€ 101.50
2-2
1211014513025
ref: 2-2
OPT
PISTON
€ 83.00
2-3
1211014513050
ref: 2-3
OPT
PISTON
€ 41.50
3-1
1214014110
ref: 3-1
RING SET,PISTON
€ 42.50
3-2
1214014110025
ref: 3-2
OPT
RING SET,PISTON(OS:0.25)
€ 39.50
3-3
1214014110050
ref: 3-3
OPT
RING SET,PISTON(OS:0.50)
€ 43.00
4
1215101B00
ref: 4
PIN,PISTON
€ 11.50
5
0938114001
ref: 5
RING,SNAP 14MM
€ 1.50
6
0926314012
ref: 6
TO 09263-14024
BEARING
€ 19.00
7
1220001B01
ref: 7
CRANKSHAFT ASSY
€ 551.00
8
1216101B00
ref: 8
CONNECTING ROD
€ 61.50
9
0916022010
ref: 9
WASHER(22X35X1)
€ 6.50
10
1221114501
ref: 10
PIN,CRANK
€ 30.50
11
09263220340C0
ref: 11
TO 09263-22047-0C0
BEARING
€ 64.00
12
1222101B02
ref: 12
CRANKSHAFT,R
€ 151.50
13
1226101B01
ref: 13
CRANKSHAFT,LEFT
€ 551.00
14
0926222012
ref: 14
BEARING
€ 63.50
15
09262250700A0
ref: 15
BEARING(25X52X15)
€ 31.50
16
0928928007
ref: 16
SEAL,OIL(28X40X8)
€ 9.50
17
0928318005
ref: 17
OIL SEAL
€ 13.50
18
1235914500
ref: 18
SPACER,PRIMARY DRIVE GEAR
€ 14.50
19
0928020004
ref: 19
O RING(D:2.4,ID:19.8)
€ 3.00
20
2111140202
ref: 20
GEAR,PRIMARY DRIVE
€ 29.00
21
0914016019
ref: 21
NUT
€ 4.00
22
0916416002
ref: 22
WASHER
€ 3.00
