FRONT BRAKE HOSE

RM125 1987 (H) (E01 E02 E04 E24)

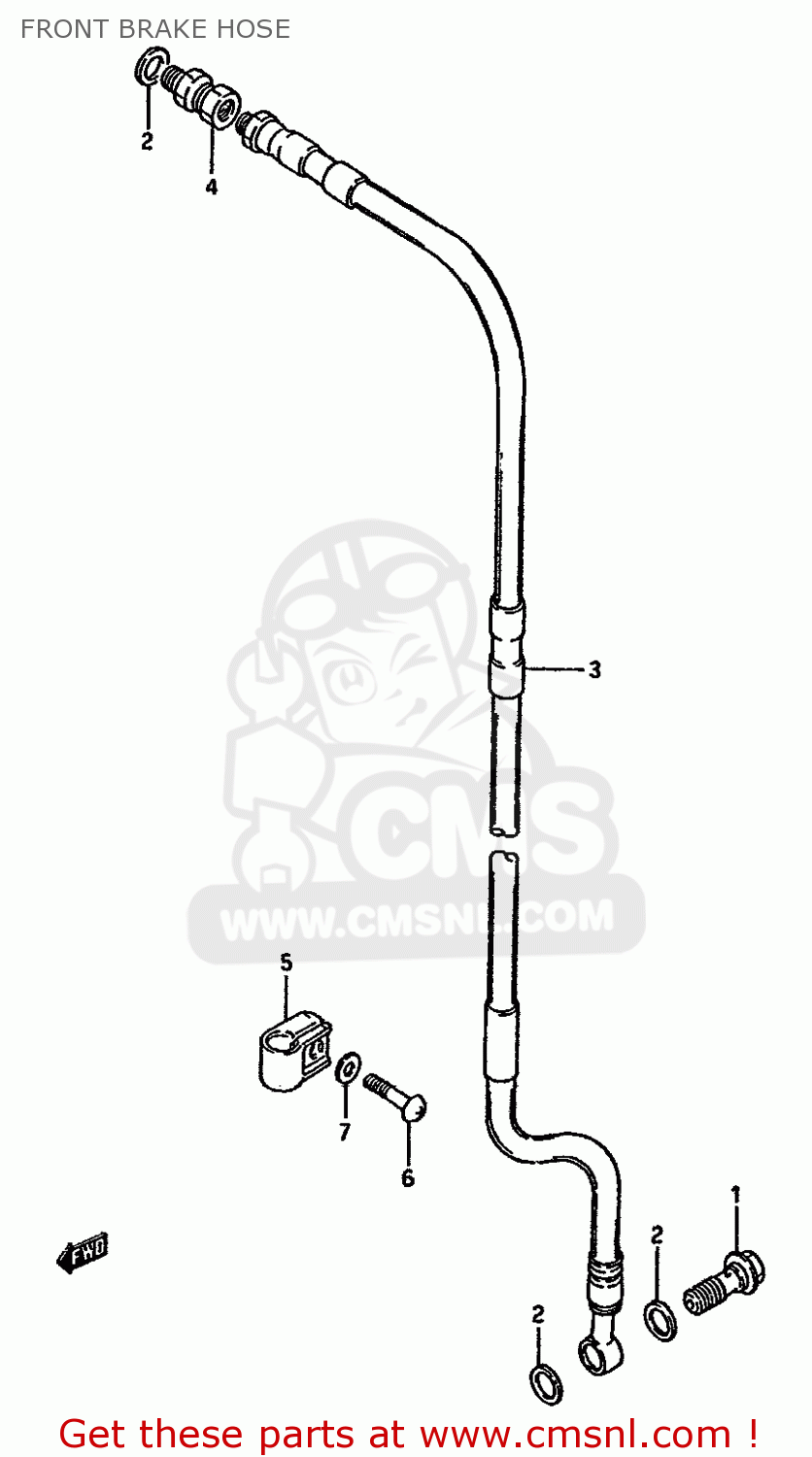

Front brake hose diagram RM125 1987 (H) (E01 E02 E04 E24)

FRONT BRAKE HOSE RM125 1987 (H) (E01 E02 E04 E24)

FRONT BRAKE HOSE RM125 1987 (H) (E01 E02 E04 E24)

prices are in EUR

ref

part #

description

quantity

1

0936010017
ref: 1

BOLT UNION

€ 6.50

2

0916110009
ref: 2

WASHER(10X15X1.5)

€ 2.00

3-1

5948014501
ref: 3-1
MODEL G

HOSE,FRONT BRAKE

€ 110.50

3-2

5948000B21
ref: 3-2
MODEL H/J

HOSE,FRONT BRAKE

€ 186.50

4

5929014500
ref: 4

ADAPTER,BRAKE HOSE

€ 18.50

5

5924314500
ref: 5

CLAMP,FRONT BRAKE HOSE

€ 6.50

6

0211206167
ref: 6

SCREW

€ 2.50

7

0832221067
ref: 7

WASHER

€ 2.00
