REAR WHEEL (MODEL G)
RM125 1987 (H) (E01 E02 E04 E24)

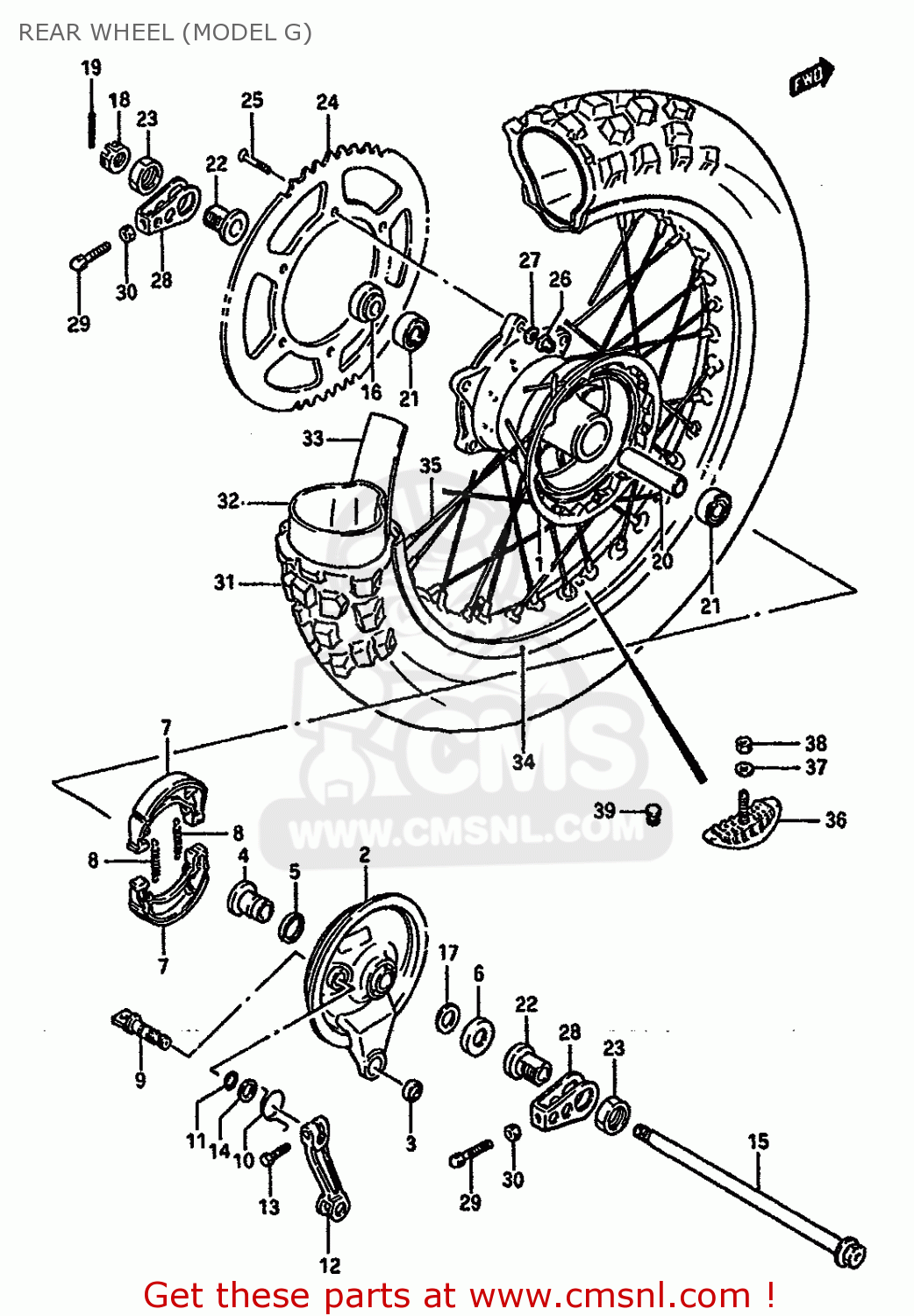

Rear wheel (model g) diagram RM125 1987 (H) (E01 E02 E04 E24)
REAR WHEEL (MODEL G) RM125 1987 (H) (E01 E02 E04 E24)
×
prices are in EUR
ref
part #
description
quantity
1
6411001B00
ref: 1
HUB,REAR WHEEL
€ 310.50
2
6420014881
ref: 2
PANEL SET,REAR
€ 155.50
3
6435214500
ref: 3
BEARING
€ 39.50
4
6421301B00
ref: 4
SPACER,RR BR AHR PNL
€ 16.50
5
0928320031
ref: 5
SEAL,OIL(20X27X5)
€ 5.00
6
6484514100
ref: 6
CVR,RR BRAKE AHR PNL DUST SEAL
€ 10.00
7
6441014100
ref: 7
SHOE,BRAKE (MCA)
€ 41.50
8
0944307001
ref: 8
SPRING(L:34)
€ 2.50
9
5444114101
ref: 9
CAM,FR BRAKE
€ 16.00
10
0944830007
ref: 10
SPRING
€ 19.00
11
0928012001
ref: 11
O RING(D:2.5,ID:11.4)
€ 2.50
12
6445114500
ref: 12
LEVER,REAR BRAKE CAM
€ 247.00
13
0110706257
ref: 13
BOLT
€ 2.00
14
0916012011
ref: 14
WASHER(12.5X20X1)
€ 1.50
15
6471101B00
ref: 15
AXLE,REAR
€ 32.50
16
6475014500
ref: 16
SPACER,RR AXLE,L
€ 15.00
17
0821115281
ref: 17
WASHER,THRUST
€ 2.50
18
0914114004
ref: 18
NUT
€ 5.00
19
0411130308
ref: 19
COTTER PIN
€ 1.50
20
6473001B00
ref: 20
SPACER,REAR HUB BEARING
€ 30.00
21
0926215021
ref: 21
BEARING(15X35X11)
€ 14.00
22
6478114500
ref: 22
SPACER,CHAIN ADJUSTER
€ 14.00
23
0914022006
ref: 23
NUT
€ 6.00
24-1
6451140261
ref: 24-1
SPROCKET,RR(NT:51 AL)
€ 87.50
24-2
6451140271
ref: 24-2
OPT
SPROCKET,REAR
€ 99.00
24-3
6451140266
ref: 24-3
OPT
SPROCKET,REAR (NT:52)(AL)
€ 118.50
25
0912008004
ref: 25
SCREW(8X33.5)
€ 3.00
26
0831931087
ref: 26
NUT
€ 2.50
27
0916408011
ref: 27
WASHER
€ 3.50
28
6141040200
ref: 28
ADJUSTER,CHAIN
€ 19.00
29
0910408027
ref: 29
BOLT(8X43)
€ 9.00
30
0831012088
ref: 30
NUT
€ 2.00
31
6510001B00
ref: 31
DUNLOP,TO 65100-01B1
TIRE
€ 106.50
32
6520014540
ref: 32
TUBE ASSEMBLY,WHEEL,INNER
€ 34.00
33
6526114540
ref: 33
PROTECTOR
€ 5.50
34
6531101B00
ref: 34
RIM,REAR WHEEL
€ 248.00
35
6532001B00
ref: 35
SPOKE SET,RR WHEEL
€ 78.50
36
6527046910
ref: 36
STOPPER,BEAD
€ 30.50
37
0832211088
ref: 37
WASHER
€ 2.00
38
0831022088
ref: 38
NUT 8MM
€ 2.00
39
0925008013
ref: 39
CAP(OD:12)
€ 2.00
