RADIATOR
RM125 1987 (H) (E01 E02 E04 E24)

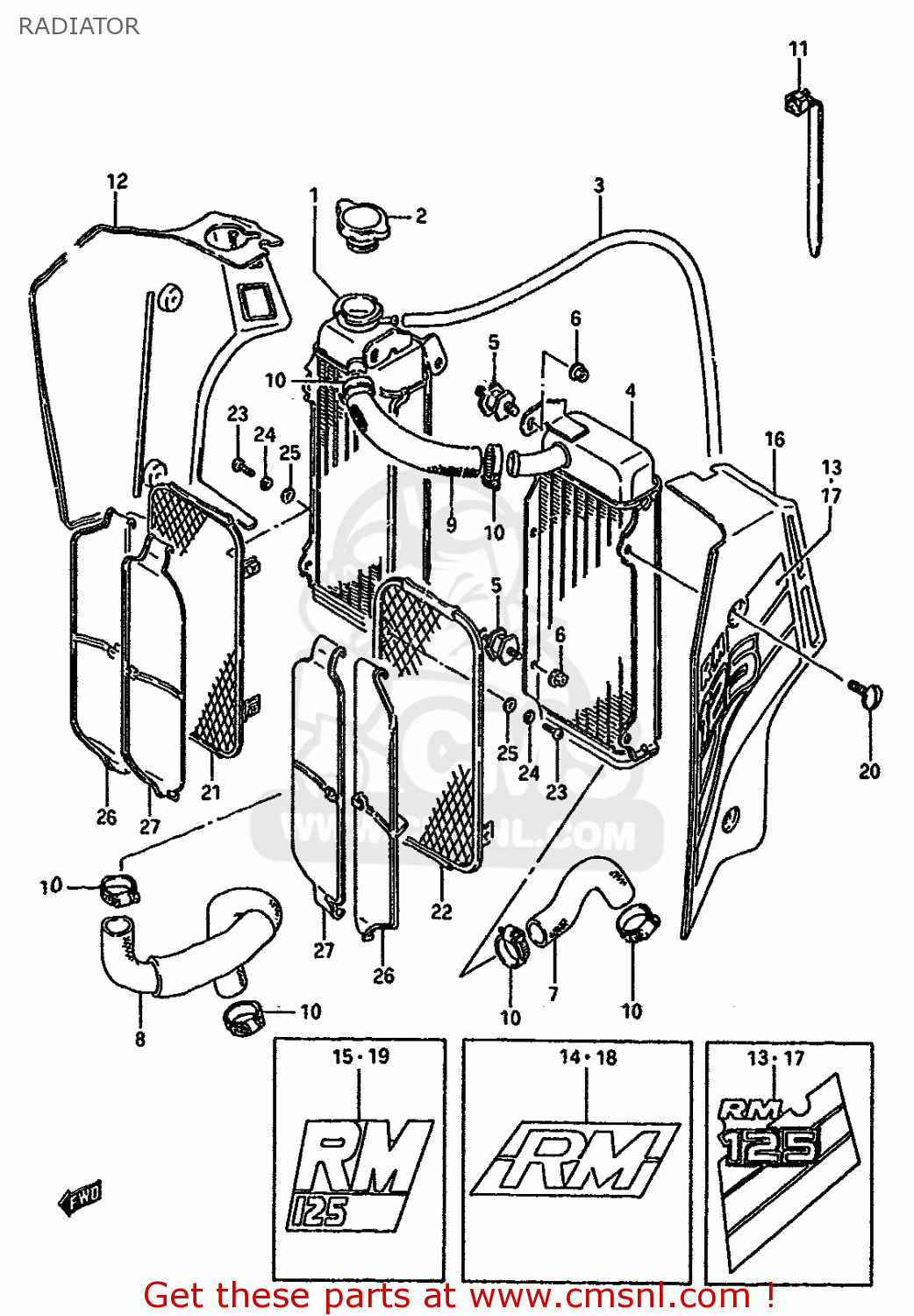

Radiator diagram RM125 1987 (H) (E01 E02 E04 E24)
RADIATOR RM125 1987 (H) (E01 E02 E04 E24)
×
prices are in EUR
ref
part #
description
quantity
1
1771001B00
ref: 1
RADIATOR COMP,WATER,RIGHT
€ 435.50
2
1773020930
ref: 2
CAP,RADIATOR 1.1
€ 40.00
3
0934305347
ref: 3
L:760 650
HOSE
€ 19.50
4
1772001B00
ref: 4
RADIATOR COMP,WATER,LEFT
€ 380.00
5
1778814500
ref: 5
BOLT,RADIATOR CUSHION
€ 12.00
6
0831616064
ref: 6
NUT 6MM
€ 2.50
7
1785101B02
ref: 7
HOSE,RADIATOR
€ 7.00
8
1785201B02
ref: 8
HOSE,RADIATOR OUTLET
€ 15.00
9
1785314500
ref: 9
HOSE,RADIATOR JOINT
€ 14.50
10-1
0940225501
ref: 10-1
MODEL G
CLAMP
€ 8.50
10-2
0940225502
ref: 10-2
MODEL H/J
CLAMP
€ 8.50
11
0940718402
ref: 11
CLAMP(L:165)
€ 2.50
12-1
1776114500163
ref: 12-1
MODEL G
COVER,RADIATOR
€ 36.00
12-2
177611450025Y
ref: 12-2
MODEL H/J
COVER,RADIATOR,R(YELLOW)
€ 36.00
13
6866001B0274H
ref: 13
MODEL G
TAPE SET,RADIATOR COVER
€ 18.50
14
6866001B109BV
ref: 14
MODEL H
TAPE SET,RADIATOR COVER STRIPE
€ 13.50
15
6866101B209UR
ref: 15
MODEL J
EMBLEM,RADIATOR COVER
€ 17.50
16-1
1776214500163
ref: 16-1
MODEL G
COVER,RADIATOR
€ 36.00
16-2
177621450025Y
ref: 16-2
MODEL H/J
COVER,RADIATOR,L(YELLOW)
€ 36.00
17
6867001B0274H
ref: 17
MODEL G
TAPE SET,RADIATOR COVER
€ 18.50
18
6867001B109BV
ref: 18
MODEL H
TAPE SET,RADIATOR COVER STRIPE
€ 25.00
19
6867101B209UR
ref: 19
MODEL J
EMBLEM,RADIATOR COVER
€ 16.00
20
0912506045
ref: 20
SCREW(6X14)
€ 13.50
21
1781014500
ref: 21
BUMPER,RADIATOR,RIGHT
€ 35.50
22
1782014500
ref: 22
BUMPER,RADIATOR,LEFT
€ 35.50
23
0211206104
ref: 23
SCREW
€ 1.50
24
0832121064
ref: 24
WASHER,LOCK
€ 2.00
25
0832221064
ref: 25
WASHER
€ 2.00
26
1783114500
ref: 26
LOUVER,RADIATOR NO.1
€ 8.00
27
1783214500
ref: 27
LOUVER,RADIATOR NO.2
€ 8.00
