STEERING STEM (MODEL J)
RM125 1987 (H) (E01 E02 E04 E24)

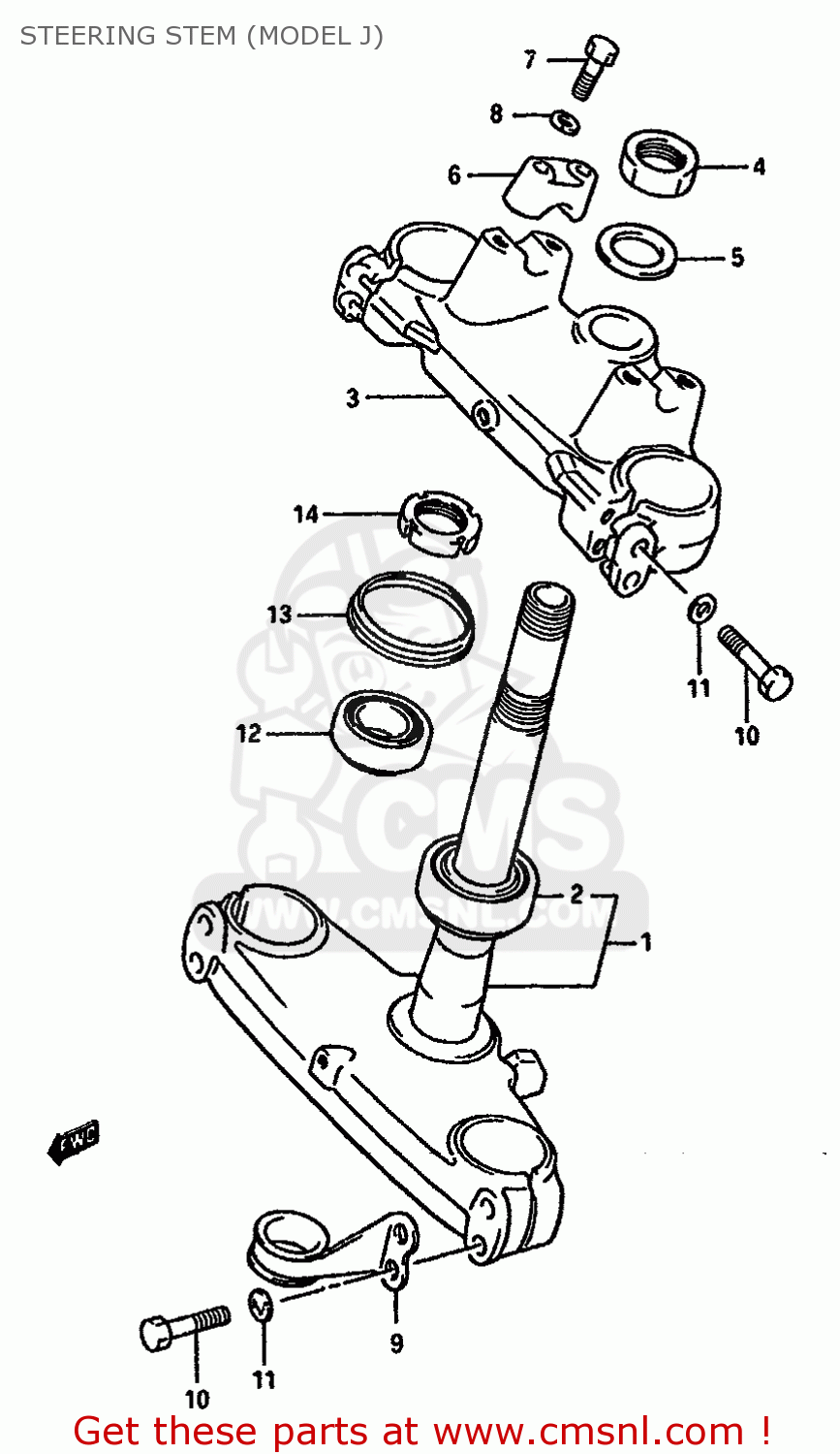

Steering stem (model j) diagram RM125 1987 (H) (E01 E02 E04 E24)
STEERING STEM (MODEL J) RM125 1987 (H) (E01 E02 E04 E24)
×
prices are in EUR
ref
part #
description
quantity
1
5141001B40
ref: 1
STEM,STEERING
€ 450.00
2
0926530005
ref: 2
BEARING
€ 49.50
3
5131101B40
ref: 3
HEAD,STEERING STEM
€ 190.00
4
5135324A00
ref: 4
NUT,STEERING STEM
€ 13.50
5
5135601B20
ref: 5
WASHER
€ 3.00
6
5621127100
ref: 6
HOLDER,HANDLEBAR
€ 12.50
7
0110708358
ref: 7
BOLT
€ 3.50
8
0832121088
ref: 8
LOCK WASHER
€ 2.00
9
5862100B00
ref: 9
CLIP
€ 13.50
10
0110708408
ref: 10
BOLT 8X40
€ 3.00
11
0832121088
ref: 11
LOCK WASHER
€ 2.00
12
0926525008
ref: 12
TAPER,ROLLER BEARING
€ 48.50
13
5164340200
ref: 13
SEAL,STEERING UPR DUST
€ 7.50
14
5163140200
ref: 14
NUT,STEERING STEM
€ 12.00
14
0110710458
ref: 14
BOLT
€ 2.00
15
0832121108
ref: 15
LOCK WASHER
€ 2.00
16-1
5161140201
ref: 16-1
MODEL G
RACE,STEERING INNER (SUJ)
€ 8.50
16-2
5161101B10
ref: 16-2
MODEL H
RACE, STEERING INNER UPPER
€ 14.00
17
5162140200
ref: 17
RACE,STEERING,OUTER,UPPER
€ 17.00
18
0611108003
ref: 18
BALL
€ 1.50
19-1
5164340200
ref: 19-1
MODEL G
SEAL,STEERING UPR DUST
€ 7.50
19-2
5164301B10
ref: 19-2
MODEL H
SEAL,STEERING UPR DUST
€ 6.00
20
5163140200
ref: 20
NUT,STEERING STEM
€ 12.00
