CYLINDER (MODEL H/J)
RM125 1987 (H) (E01 E02 E04 E24)

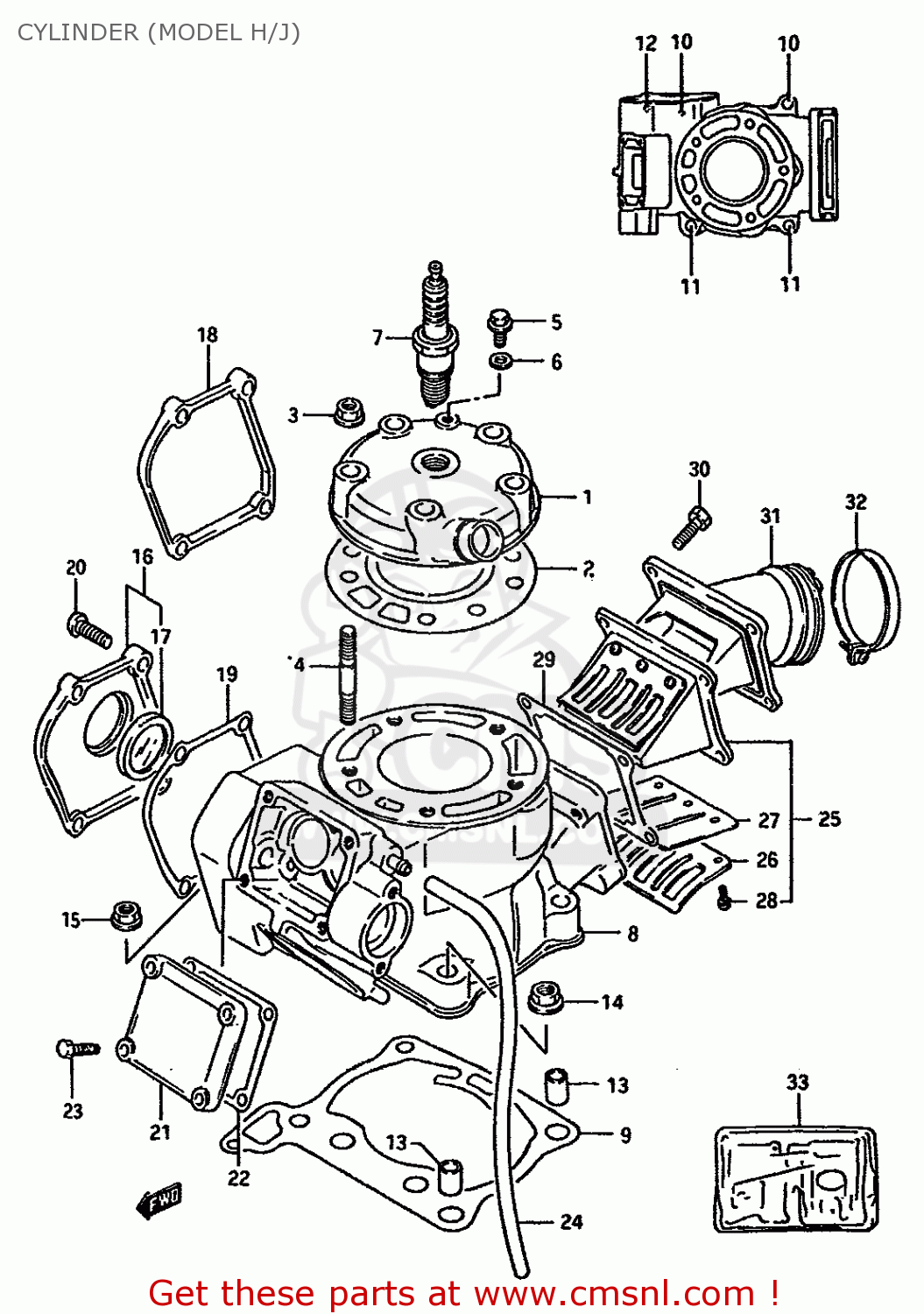

Cylinder (model h/j) diagram RM125 1987 (H) (E01 E02 E04 E24)
CYLINDER (MODEL H/J) RM125 1987 (H) (E01 E02 E04 E24)
×
prices are in EUR
ref
part #
description
quantity
1
1111101830
ref: 1
HEAD,CYLINDER
€ 0.00
2
1114101832
ref: 2
GASKET,CYLINDER HEAD
€ 0.00
3
0831616088
ref: 3
NUT
€ 2.50
4
0910808198
ref: 4
BOLT,STUD
€ 5.00
5
0936006007
ref: 5
UNION
€ 3.00
6
0916806004
ref: 6
GASKET(6.2X11X1).2 (NAS)
€ 1.50
7-1
0948200209
ref: 7-1
PLUG,SPARK(NGK B-8EN)
€ 19.50
7-2
0948200271111
ref: 7-2
MODEL H
SPARK PLUG
€ 3.00
7-3
0948200396111
ref: 7-3
MODEL J
SPARK PLUG W27ES-ZU
€ 3.00
7-4
0948200115
ref: 7-4
E4
SPARK PLUG BR9EV
€ 81.50
8-1
1120001810
ref: 8-1
MODEL H
CYLINDER
€ 451.50
8-2
1120001821
ref: 8-2
MODEL J
CYLINDER
€ 469.50
9
1124101820
ref: 9
GASKET,CYLINDER
€ 0.00
10
0910808211
ref: 10
STUD
€ 3.00
11
0910808212
ref: 11
BOLT,STUD
€ 2.50
12
0910806097
ref: 12
STUD
€ 0.00
13
0421111169
ref: 13
PIN
€ 2.00
14
0831616088
ref: 14
NUT
€ 2.50
15
0915906017
ref: 15
NUT
€ 2.50
16
1123001830
ref: 16
MODEL H
COVER,CYLINDER NO. 1
€ 0.00
17
1123201800
ref: 17
MODEL H
LENS
€ 0.00
18
1123101831
ref: 18
MODEL J
COVER,CYLINDER NO. 1
€ 0.00
19
1123301830
ref: 19
GASKET,CYLINDER COVER NO. 1
€ 0.00
20
0211206208
ref: 20
SCREW
€ 2.00
21
1124801830
ref: 21
COVER,CYLINDER NO. 2
€ 0.00
22
1123801830
ref: 22
GASKET,CYLINDER COVER NO. 2
€ 11.50
23
0110705167
ref: 23
BOLT
€ 1.50
24
0934304104
ref: 24
L:600 250
HOSE
€ 3.00
25
1315001820
ref: 25
VALVE ASSY, REED
€ 0.00
26
1315201820
ref: 26
STOPPER
€ 0.00
27
1315301820
ref: 27
VALVE,REED
€ 0.00
28
1315414500
ref: 28
SCREW,REED VALVE
€ 1.50
29
1315601820
ref: 29
GASKET,REED VALVE
€ 0.00
30
0110706207
ref: 30
BOLT
€ 2.00
31-1
1311101820
ref: 31-1
MODEL H
PIPE,INTAKE
€ 0.00
31-2
1311101821
ref: 31-2
MODEL J
PIPE,INTAKE
€ 0.00
32-1
0940254306
ref: 32-1
MODEL H
CLAMP
€ 4.00
32-2
0940252306
ref: 32-2
MODEL J
CLAMP
€ 6.00
33
1140001820
ref: 33
OPT
GASKET SET (MCA)
€ 73.50
