EXHAUST VALVE (MODEL G)
RM125 1987 (H) (E01 E02 E04 E24)

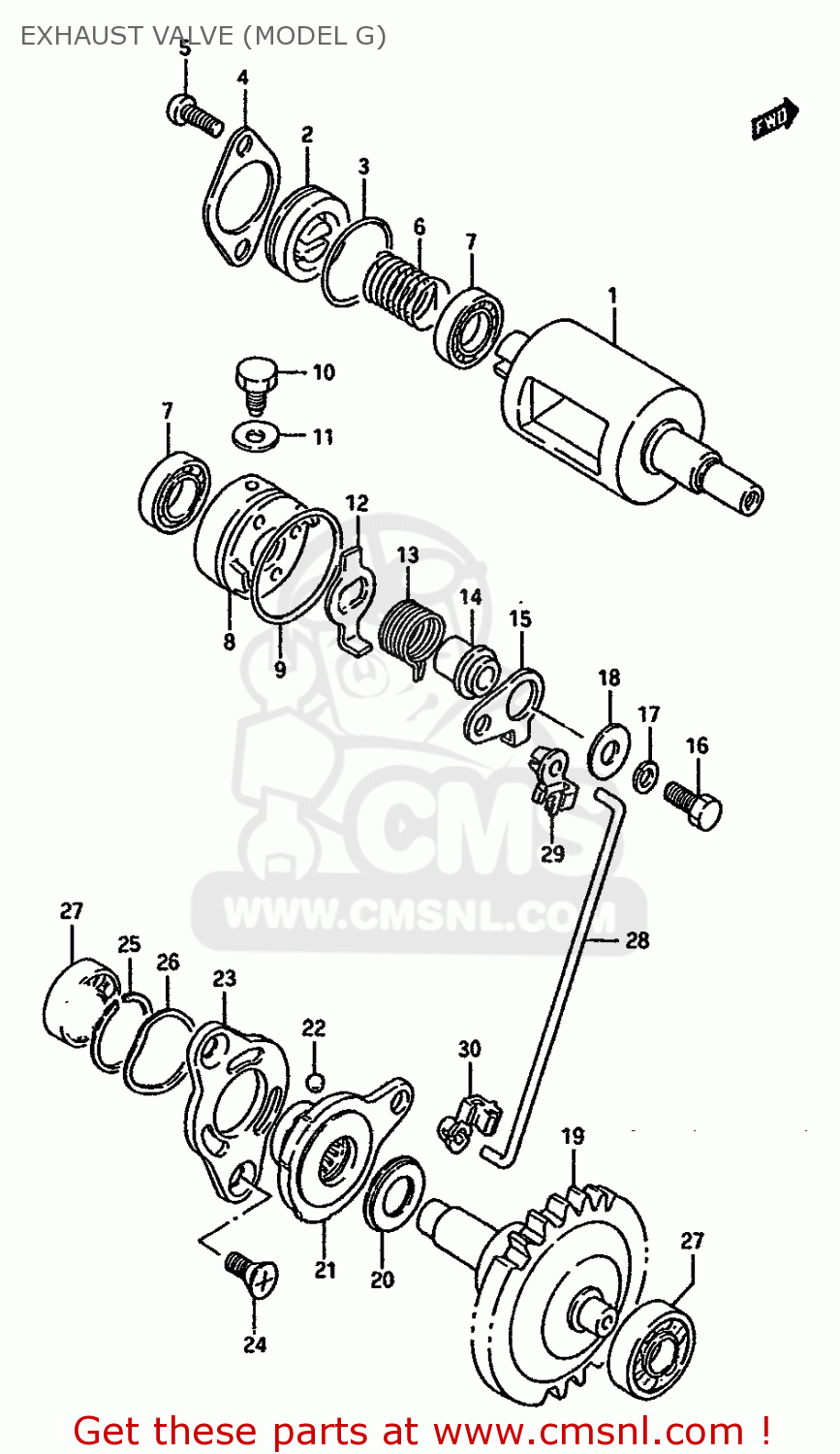

Exhaust valve (model g) diagram RM125 1987 (H) (E01 E02 E04 E24)
EXHAUST VALVE (MODEL G) RM125 1987 (H) (E01 E02 E04 E24)
×
prices are in EUR
ref
part #
description
quantity
1
1125601B00
ref: 1
VALVE,EXHAUST
€ 87.00
2
1125801B00
ref: 2
CAP,EXHAUST VALVE
€ 52.00
3
0928023002
ref: 3
O RING(D:1.9,ID:22.6)
€ 2.50
4
1126501B00
ref: 4
RETAINER,EXHAUST VALVE
€ 1.50
5
0211205128
ref: 5
SCREW
€ 2.50
6
0944415005
ref: 6
SPRING
€ 4.00
7
0811068010
ref: 7
BEARING
€ 25.50
8
1126301B00
ref: 8
HOLDER,EXHAUST VALVE
€ 78.00
9
0928028005
ref: 9
O RING(D:2.4,ID:27.7)
€ 2.00
10
0913506002
ref: 10
BOLT
€ 2.50
11
0916806004
ref: 11
GASKET(6.2X11X1).2 (NAS)
€ 1.50
12
1126701B00
ref: 12
LEVER,EXHAUST VALVE NO
€ 1.50
13
0944415004
ref: 13
SPRING
€ 4.50
14
1126801B00
ref: 14
SPACER,EXHAUST VALVE
€ 8.50
15
1126601B00
ref: 15
LEVER,EXHAUST VALVE NO.1
€ 5.50
16
0110405126
ref: 16
BOLT
€ 1.50
17
0832121056
ref: 17
LOCK WASHER
€ 3.00
18
0916005017
ref: 18
WASHER (5.5X16X1.2)
€ 2.50
19
1267001B00
ref: 19
GOVERNOR ASSEMBLY,EXHAUST
€ 87.00
20
0926310002
ref: 20
BEARING(10X22X2.8)
€ 8.50
21
1268001810
ref: 21
ACTUATOR,EXHAUST VALVE
€ 56.00
22
0611106003
ref: 22
BALL
€ 1.50
23
1268201B02
ref: 23
STARTER,EXHAUST VALVE ACTUATOR
€ 26.50
24
0212205128
ref: 24
SCREW 5X12
€ 2.50
25
0938019003
ref: 25
CIRCLIP
€ 2.50
26
0916419001
ref: 26
WASHER
€ 7.00
27
0926208005
ref: 27
BEARING(8X22X7)
€ 12.50
28
1268501B00
ref: 28
ROD,EXHAUST VALVE
€ 2.50
29
1268601B00
ref: 29
BUSH,EXHAUST VALVE ROD NO.1
€ 2.00
30
1268701B00
ref: 30
BUSH,EXHAUST VALVE ROD NO.2
€ 2.00
