FRONT WHEEL
RM125 1987 (H) (E01 E02 E04 E24)

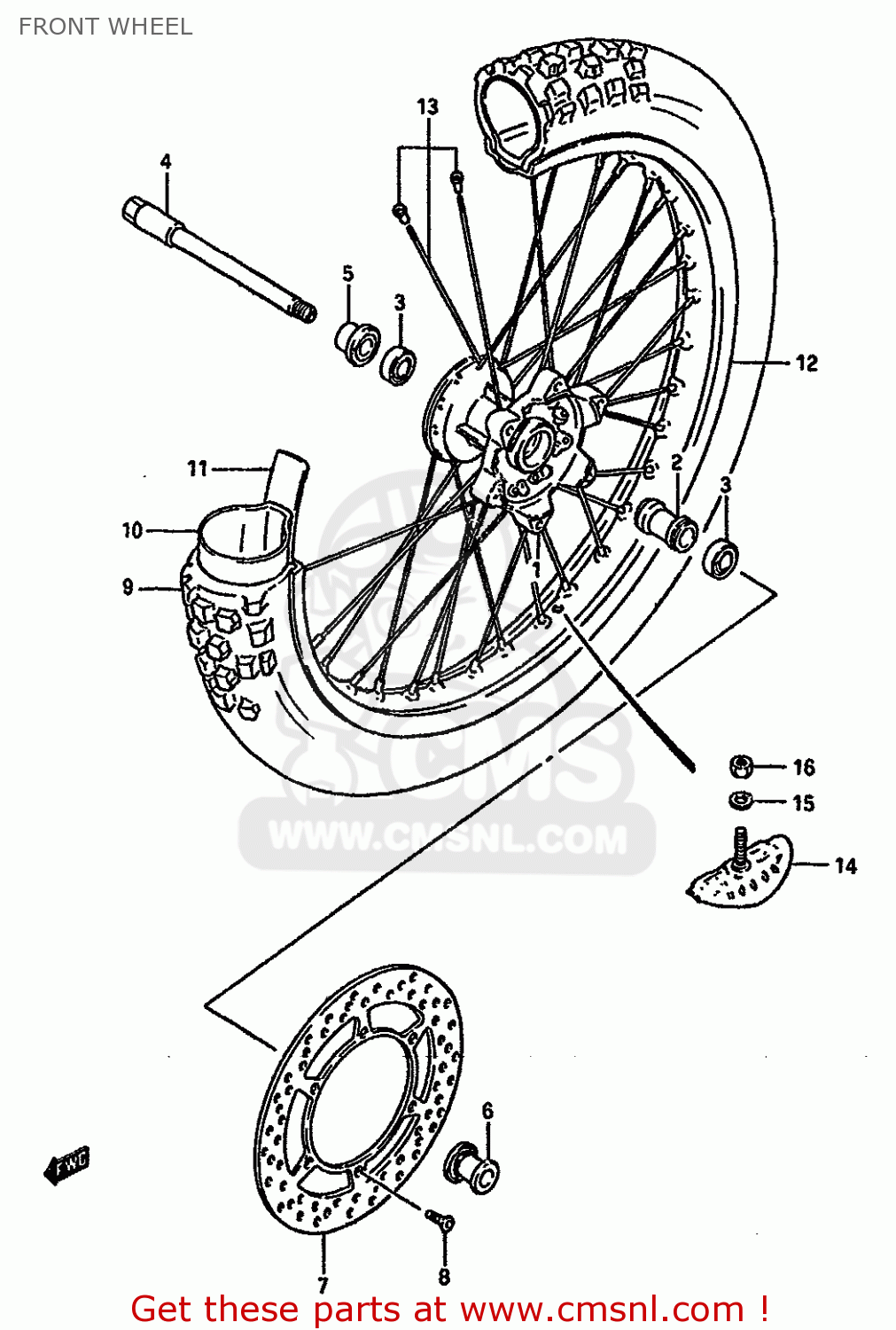

Front wheel diagram RM125 1987 (H) (E01 E02 E04 E24)
FRONT WHEEL RM125 1987 (H) (E01 E02 E04 E24)
×
prices are in EUR
ref
part #
description
quantity
1
5411114501
ref: 1
HUB,FRONT
€ 165.50
2-1
5473014100
ref: 2-1
MODEL G
SPACER,FRONT HUB BEARING
€ 23.00
2-2
5473001B00
ref: 2-2
MODEL H/J
SPACER,FR HUB BEARING
€ 34.00
3-1
0812362027
ref: 3-1
MODEL G
BEARING
€ 14.50
3-2
0812360037
ref: 3-2
MODEL H/J
BEARING
€ 16.50
4-1
5471114510
ref: 4-1
MODEL G
AXLE,FRONT
€ 46.50
4-2
5471101B00
ref: 4-2
MODEL H/J
AXLE,FRONT
€ 58.00
5-1
5474014501
ref: 5-1
MODEL G
SPACER,FRONT AXLE,RIGHT
€ 8.00
5-2
5474001B00
ref: 5-2
MODEL H/J
SPACER,FRONT AXLE,RIGHT
€ 12.50
6-1
5475014501
ref: 6-1
MODEL G
SPACER,FRONT AXLE,LEFT
€ 12.00
6-2
5475001B00
ref: 6-2
MODEL H/J
SPACER,FRONT AXLE,LEFT
€ 8.50
7-1
5922114500
ref: 7-1
MODEL G
DISC,BRAKE
€ 204.00
7-2
5922114510
ref: 7-2
MODEL H/J
DISC,FRONT BRAKE
€ 204.00
8
0212206167
ref: 8
SCREW
€ 2.00
9-1
5510001B00
ref: 9-1
MODEL G,DUNLOP
TIRE,FRONT
€ 164.00
9-2
5510001B10
ref: 9-2
MODEL H/J,DUNLOP
TIRE,FRONT
€ 164.00
9-3
5510001B20
ref: 9-3
MODEL J E2
TIRE,FRONT (80/100-21)
€ 164.00
10
5520014540
ref: 10
TUBE,INNER
€ 32.50
11
5526114540
ref: 11
PROTECTOR,WHEEL INNER
€ 5.00
12
5531101B00
ref: 12
RIM,FRONT WHEEL
€ 322.50
13
5532001B00
ref: 13
SPOKE SET,FRONT
€ 97.00
14
6527014300
ref: 14
STOPPER,BEAD
€ 26.00
15
0832211088
ref: 15
WASHER
€ 2.00
16
0831022088
ref: 16
NUT 8MM
€ 2.00
