CRANKSHAFT (MODEL J)
RM125 1987 (H) (E01 E02 E04 E24)

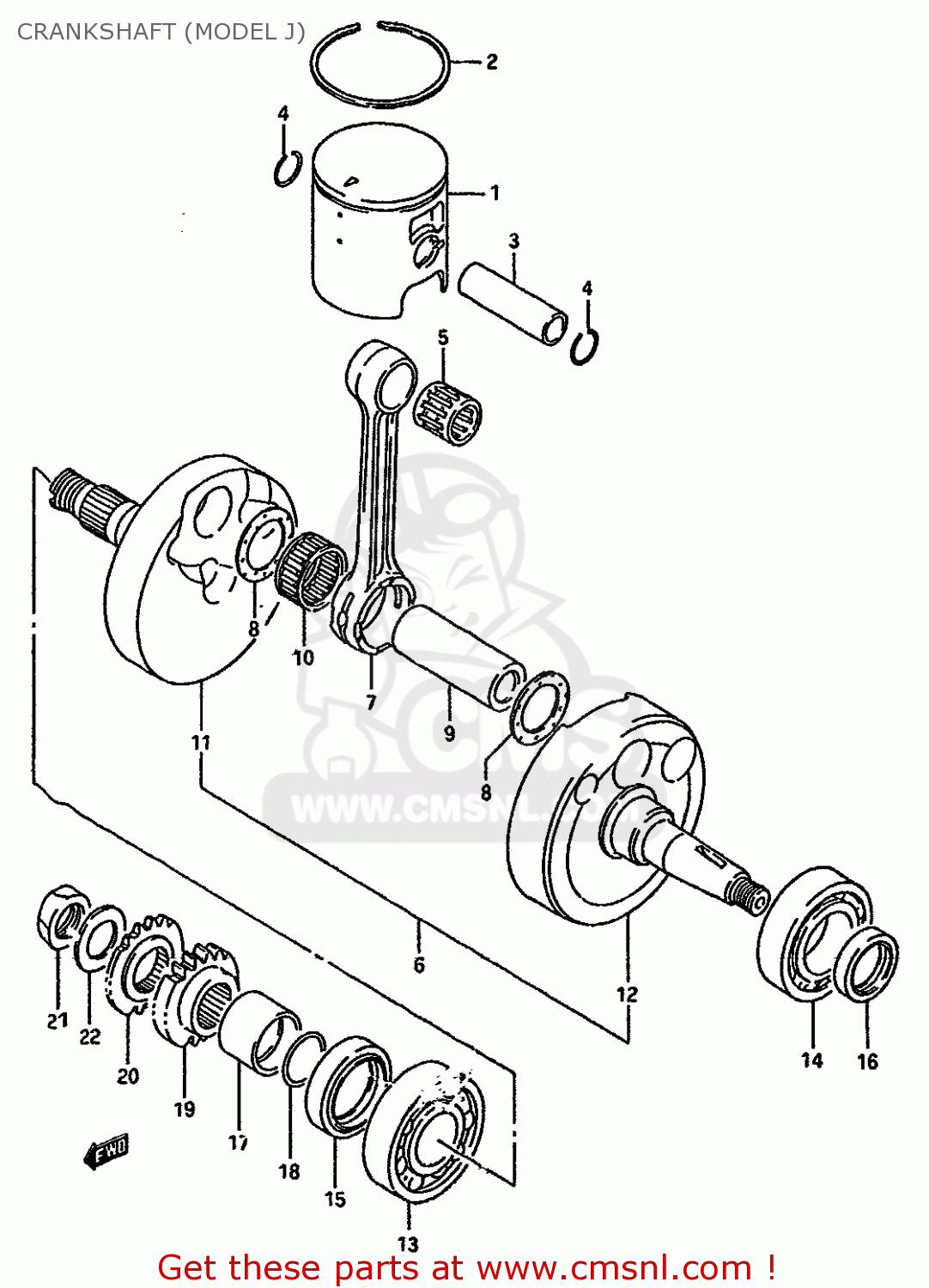

Crankshaft (model j) diagram RM125 1987 (H) (E01 E02 E04 E24)
CRANKSHAFT (MODEL J) RM125 1987 (H) (E01 E02 E04 E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
1210001860
ref: 1-1
OPT
PISTON KIT (STD)
€ 95.50
1-2
1210001860025
ref: 1-2
OPT
PISTON KIT (OS:0.25)
€ 51.00
1-3
1210001860050
ref: 1-3
OPT
PISTON SET
€ 105.00
2-1
1211001B410F0
ref: 2-1
PISTON
€ 94.00
2-2
1211001B41025
ref: 2-2
OPT
PISTON
€ 83.50
2-3
1211001B41050
ref: 2-3
OPT
PISTON
€ 53.50
3-1
1214101B10
ref: 3-1
RING,PISTON
€ 35.50
3-2
1214101B10025
ref: 3-2
OPT
RING,PISTON (OS:0.25)
€ 13.00
3-3
1214101B10050
ref: 3-3
OPT
RING,PISTON (OS:0.5)
€ 17.50
4
1215101B41
ref: 4
PIN,PISTON
€ 16.00
5
0938115001
ref: 5
CIRCLIP
€ 1.50
6
0926315040
ref: 6
BEARING(15X19X20)
€ 20.00
7
1220001B40
ref: 7
CRANKSHAFT ASSEMBLY
€ 491.00
8
1216101B41
ref: 8
CONNECTING ROD
€ 66.00
9
0916022010
ref: 9
WASHER(22X35X1)
€ 6.50
10
1221114502
ref: 10
PIN,CRANK
€ 30.50
11
09263220490B0
ref: 11
BEARING(22X28X16)
€ 103.50
12
1222101B41
ref: 12
CRANKSHAFT,RIGHT
€ 151.00
13
1226101B20
ref: 13
CRANKSHAFT,LEFT
€ 132.00
14
0926222020
ref: 14
BEARING
€ 63.50
15
09262250700A0
ref: 15
BEARING(25X52X15)
€ 31.50
16
0928928007
ref: 16
SEAL,OIL(28X40X8)
€ 9.50
17
0928318006
ref: 17
SEAL,OIL(18X30X6)
€ 13.50
18
1235914500
ref: 18
SPACER,PRIMARY DRIVE GEAR
€ 14.50
19
0928020004
ref: 19
O RING(D:2.4,ID:19.8)
€ 3.00
20
2111101B40
ref: 20
GEAR,PRIMARY DRIVEN
€ 28.00
21
1267401B40
ref: 21
GEAR, GOVERNOR DRIVE (NT:19)
€ 38.00
22
0914016019
ref: 22
NUT
€ 4.00
23
0916416002
ref: 23
WASHER
€ 3.00
