AIR CLEANER

VL1500 1999 (X)

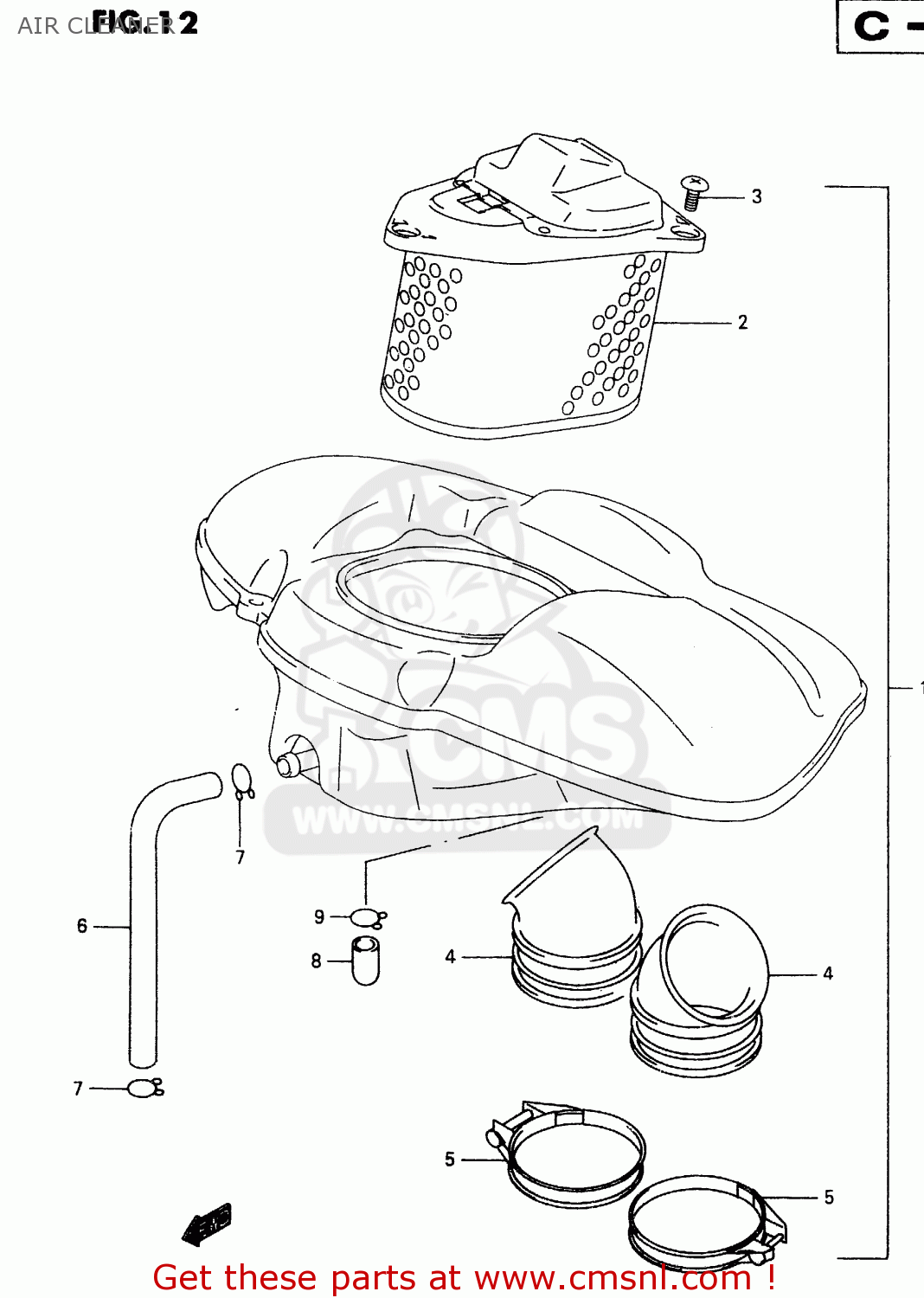

Air cleaner diagram VL1500 1999 (X)

AIR CLEANER VL1500 1999 (X)

AIR CLEANER VL1500 1999 (X)

prices are in EUR

ref

part #

description

quantity

1-1

1370010F00
ref: 1-1

CLEANER ASSY,AIR

€ 243.00

1-2

1370010F10
ref: 1-2
E18

CLEANER ASSEMBLY,AIR

€ 243.00

2

1378010F00
ref: 2

FILTER,AIR CLEANER

€ 41.00

3

0214205123
ref: 3

SCREW 5X12

€ 1.50

4

1388110F00
ref: 4

TUBE,OUTLET

€ 21.00

5

1382602F00
ref: 5

CLAMP

€ 7.50

6

1385310F00
ref: 6

TUBE,BREATHER

€ 16.50

7

0940114301
ref: 7

CLIP

€ 2.00

8-1

1385941B10
ref: 8-1

PLUG

€ 5.50

8-2

1385941B10
ref: 8-2
E18

PLUG

€ 5.50

9-1

0940114301
ref: 9-1

CLIP

€ 2.00

9-2

0940114301
ref: 9-2
E18

CLIP

€ 2.00
