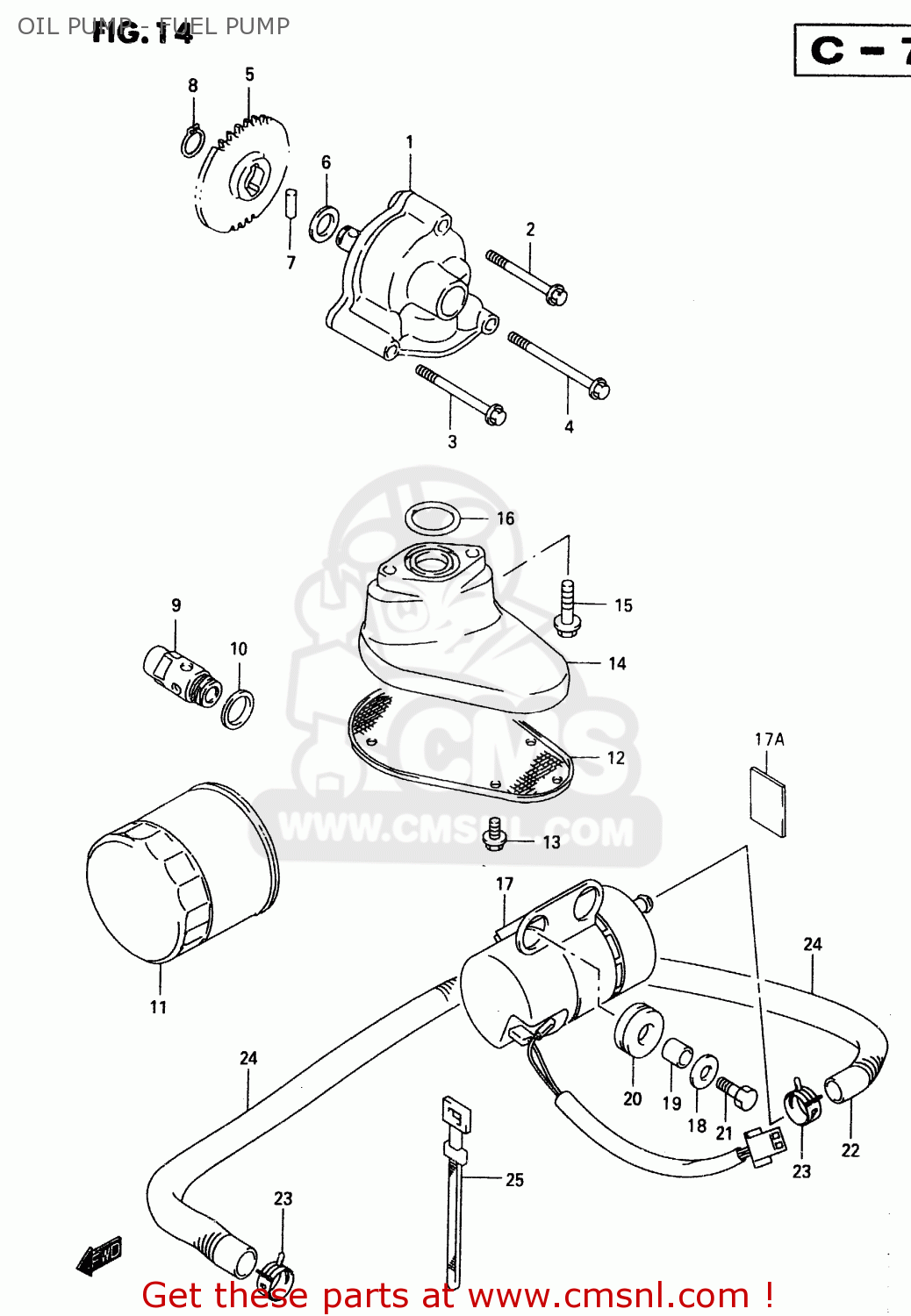

OIL PUMP - FUEL PUMP - VL1500 1999 (X)

ref

part #

description

quantity

1

1640038B10
ref: 1

PUMP ASSY,ENGINE OIL

€ 242.50

2

0154706453
ref: 2

BOLT

€ 3.00

3

0154706553
ref: 3

BOLT

€ 3.00

4

0154706653
ref: 4

BOLT

€ 2.00

5

1633138B01
ref: 5

GEAR,OIL PUMP DRIVEN

€ 61.50

6

0918112158
ref: 6

SHIM(12X20X0.5)

€ 2.00

7

0926105006
ref: 7

PIN(5X18)

€ 1.50

8

0833131126
ref: 8

CIRCLIP,12 MM

€ 2.00

9

1644017C20
ref: 9

VALVE ASSY,OIL RELIEF

€ 39.00

10

0916816002
ref: 10

GASKET(16X22X2) (NAS)

€ 2.00

11

1651034E00
ref: 11

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

12

1652038B10
ref: 12

STRAINER,ENGINE OIL

€ 21.00

13

0155005103
ref: 13

BOLT

€ 2.50

14

1652538B10
ref: 14

HOLDER,OIL STR

€ 24.00

15

0155006253
ref: 15

BOLT

€ 2.50

16

0928022008
ref: 16

O RING(D:3.1,ID:22.7)

€ 2.50

17

1510010F00
ref: 17

PUMP ASSY,FUEL

€ 270.50

17A

6137408010
ref: 17A

CUSHION,CHAIN CASE

€ 4.00

18

0916006077
ref: 18

WASHER(6.5X20X1.2)

€ 2.00

19

0918006263
ref: 19

SPACER(6.5X9X9)

€ 2.00

20

0932009009
ref: 20

CUSHION

€ 5.00

21

0150006207
ref: 21

BOLT

€ 2.00

22

1580110F00
ref: 22

HOSE,FUEL PUMP & CARB

€ 22.50

23

0940111407
ref: 23

CLIP

€ 2.50

24

0944014047
ref: 24

SPRING

€ 13.50

25

0940718402
ref: 25

CLAMP(L:165)

€ 2.50

OIL PUMP - FUEL PUMP

all assemblies
