CYLINDER

VL1500 1999 (X)

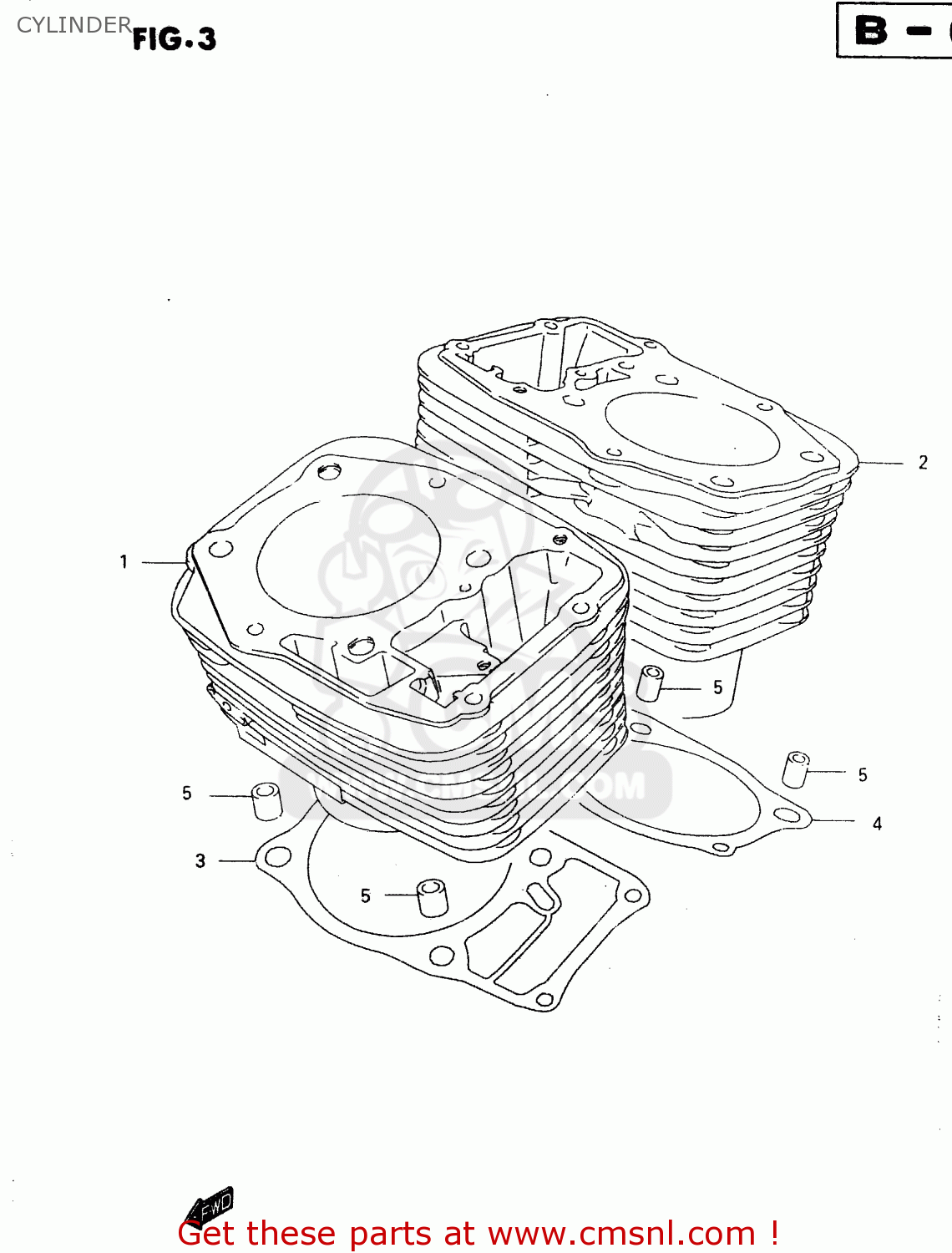

Cylinder diagram VL1500 1999 (X)

CYLINDER VL1500 1999 (X)

CYLINDER VL1500 1999 (X)

prices are in EUR

ref

part #

description

quantity

1-1

1121110F000F0
ref: 1-1

CYLINDER,FR

€ 689.50

1-2

1121110F100F0
ref: 1-2
E18

CYLINDER,FR

€ 672.00

2-1

1122110F000F0
ref: 2-1

CYLINDER,RR

€ 689.50

2-2

1122110F100F0
ref: 2-2
E18

CYLINDER,RR

€ 736.00

3

1124110F00
ref: 3

GASKET,CYLINDER FR (NAS)

€ 14.00

4

1124210F00
ref: 4

GASKET,CYLINDER RR (NAS)

€ 14.00

5

0421113189
ref: 5

PIN

€ 2.50
