BATTERY

VL1500 1999 (X)

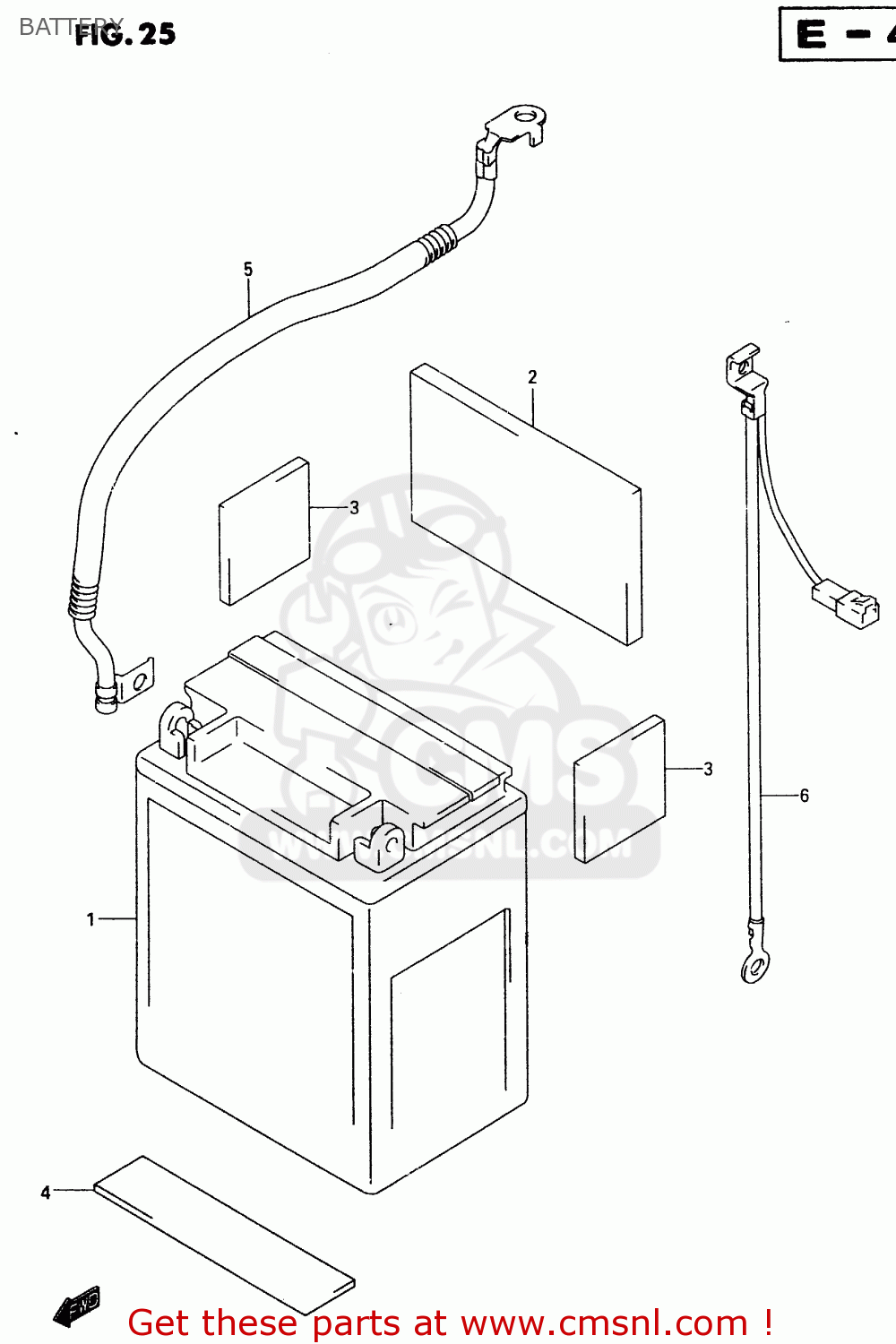

Battery diagram VL1500 1999 (X)

BATTERY VL1500 1999 (X)

BATTERY VL1500 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

3361038B50
ref: 1
FTH16-BS-1

BATTERY ASSEMBLY 12V14AH,F

€ 74.50

2

3365220C00
ref: 2

PROTECTOR(50X50X5)

€ 2.50

3

3365137000
ref: 3
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

4

3365219B00
ref: 4

CUSHION,BATTERY(80X27X3)

€ 4.50

5

3382010F00
ref: 5

WIRE,BATTERY PLUS LEAD

€ 30.00

6

3386010F00
ref: 6

WIRE,BATTERY MINUS LEAD

€ 41.50
