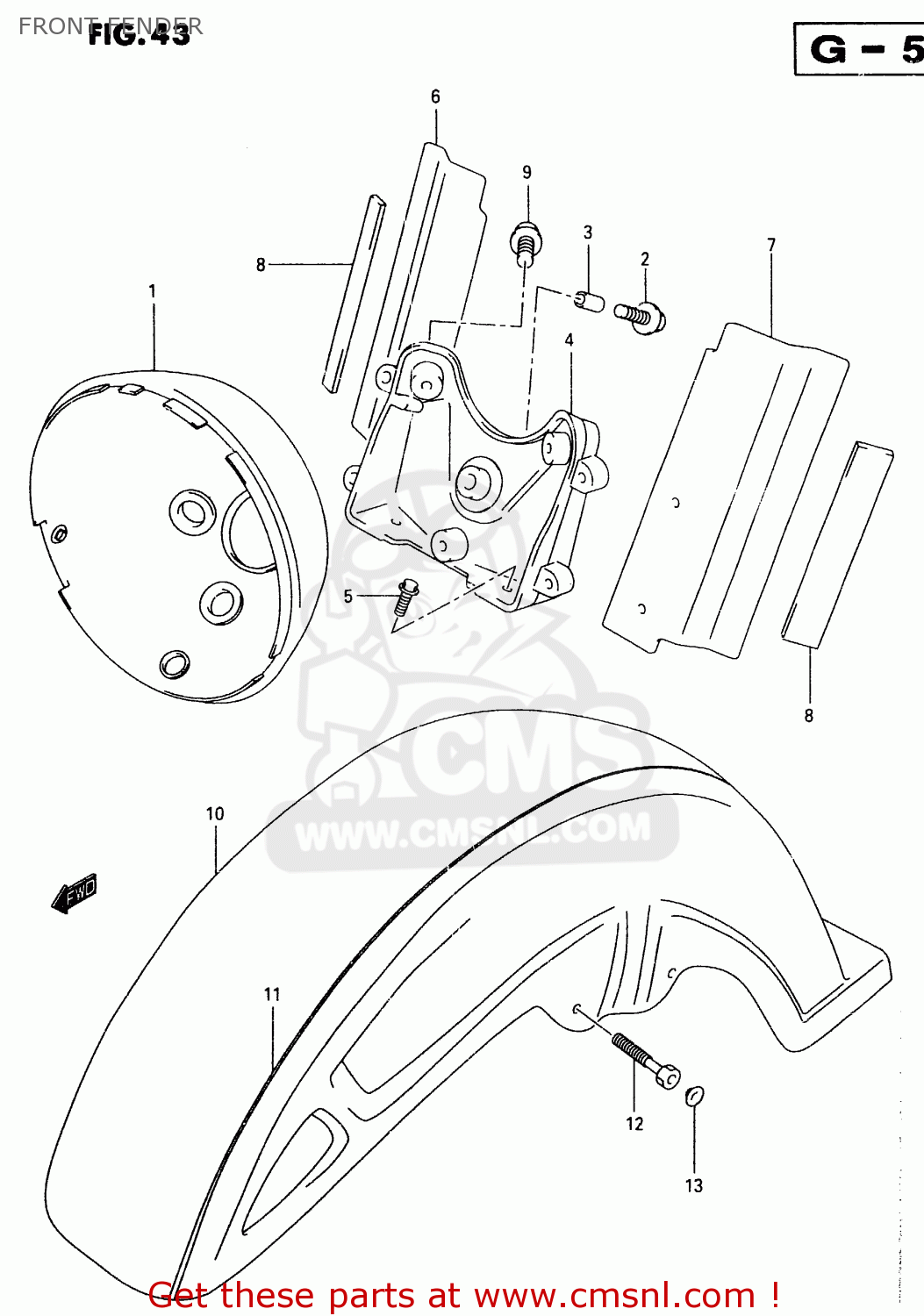

FRONT FENDER

ref

part #

description

quantity

1

5181010F00
ref: 1

HOUSING,HEADLAMP

€ 205.00

2

0911606147
ref: 2

BOLT(6X25)

€ 4.00

3

0918006076
ref: 3

SPACER(6.8X12X11)

€ 3.00

4

5185010F00
ref: 4

BRACKET,HEADLAMP HOUSING

€ 121.00

5

0155006163
ref: 5

BOLT

€ 2.50

6

5187110F00
ref: 6

PLATE,HEADLAMP BRACKET,R

€ 26.00

7

5188110F00
ref: 7

PLATE,HEADLAMP BRACKET,L

€ 27.50

8

3365137000
ref: 8

PROTECTOR(170X95X3.0)

€ 5.00

9

0913906027
ref: 9

SCREW(6X12)

€ 3.00

10-1

5311010F00E6M
ref: 10-1

FENDER,FRONT

€ 496.00

10-2

5311010F00K7D
ref: 10-2

FENDER,FRONT

€ 633.00

10-3

5311010F00K7E
ref: 10-3

FENDER,FRONT

€ 708.00

10-4

5311010F00K7F
ref: 10-4

FENDER,FRONT

€ 625.00

11-1

6815010F00K7W
ref: 11-1
FOR E6M

TAPE SET,FR FENDER

€ 83.50

11-2

6815010F00K7Y
ref: 11-2
FOR K7D

TAPE SET,FR FENDER

€ 74.00

11-3

6815010F00K8A
ref: 11-3
FOR K7E

TAPE SET,FR FENDER

€ 73.00

11-4

6815010F00K8B
ref: 11-4
FOR K7F

TAPE SET,FRONT FENDER

€ 73.50

12

0713008457
ref: 12

BOLT

€ 3.00

13

0925006011
ref: 13

CAP(OD:11)

€ 2.50
