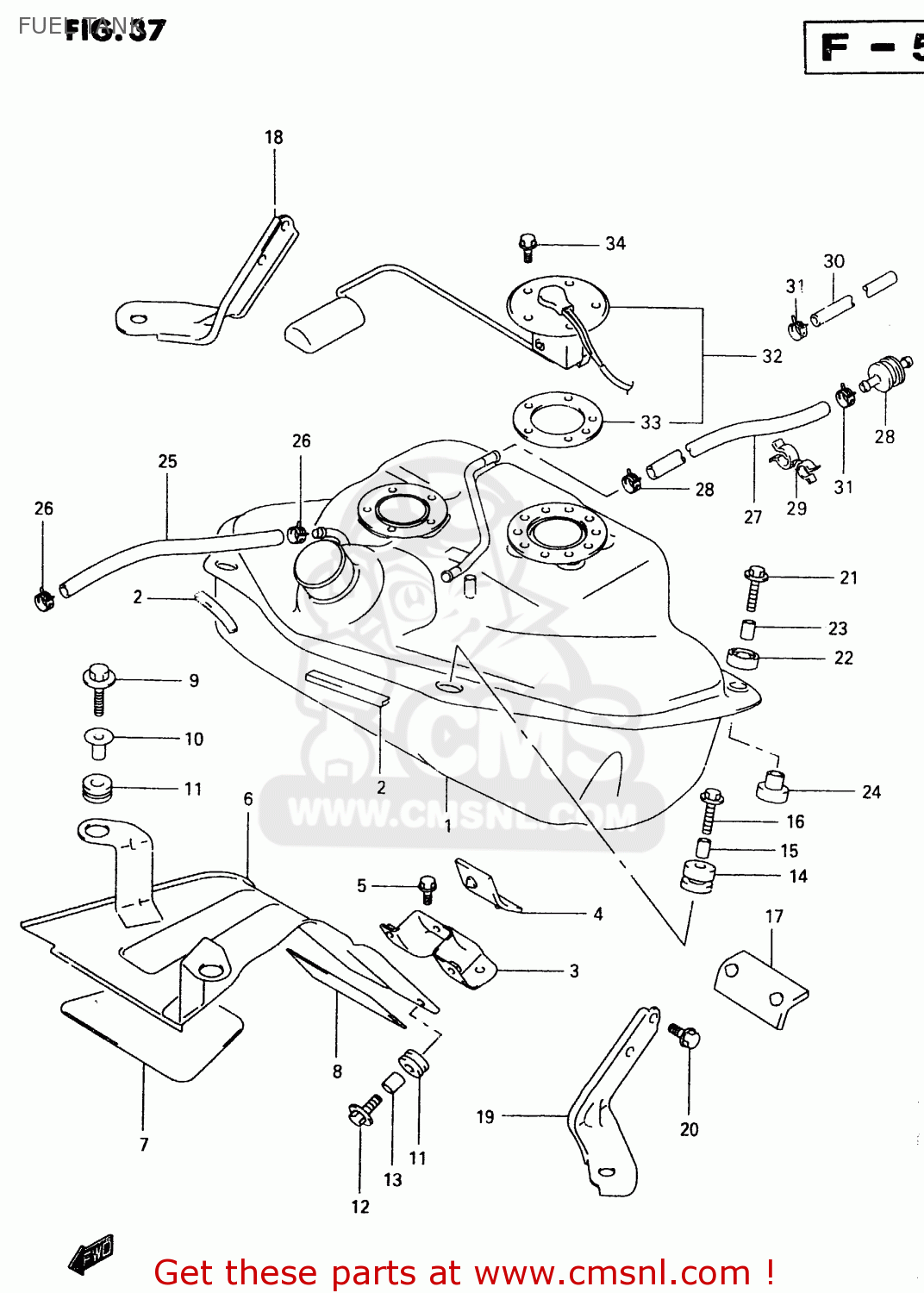

FUEL TANK

ref

part #

description

quantity

1

4411010F00
ref: 1

TANK,FUEL

€ 521.00

2

6824104X5000B
ref: 2

MOLDING

€ 23.00

3

4413010F00
ref: 3

BRACKET,FUEL TANK FR

€ 9.50

4

4451110F00
ref: 4

CUSHION,FUEL TANK FR

€ 7.00

5

0155006103
ref: 5

BOLT

€ 2.50

6

4427010F00
ref: 6

COVER COMP,FUEL TANK,FRONT

€ 48.50

7

4426710F00
ref: 7

SHIELD,FR COVER UPR

€ 8.50

8

4426810F00
ref: 8

SHIELD,FR COVER LWR

€ 7.00

9

0911606171
ref: 9

BOLT(6X30)

€ 2.50

10

0916906070
ref: 10

WASHER

€ 3.50

11

0932008001
ref: 11

CUSHION

€ 3.50

12

0911606159
ref: 12

BOLT

€ 2.00

13

0918006248
ref: 13

SPACER(6.1X8X9.5)

€ 2.50

14

4451204F00
ref: 14

CUSHION,FUEL TANK SIDE

€ 3.00

15

0918006267
ref: 15

SPACER(6.5X9X12.5)

€ 3.00

16

0911606147
ref: 16

BOLT(6X25)

€ 4.00

17

4454110F00
ref: 17

CUSHION,FUEL TANK RR CTR

€ 7.50

18

4415010F00
ref: 18

BRACKET,FUEL TANK RR,R

€ 17.50

19

4416010F00
ref: 19

BRACKET,FUEL TANK RR,L

€ 19.50

20

0155006103
ref: 20

BOLT

€ 2.50

21

0911606172
ref: 21

BOLT(6X30)

€ 2.50

22

0932014022
ref: 22

CUSHION

€ 4.00

23

0918006271
ref: 23

SPACER(6.5X9X18)

€ 2.00

24

0932010020
ref: 24

CUSHION

€ 4.00

25

0935511165600
ref: 25

HOSE(11X16X600)

€ 9.00

26

0940115404
ref: 26

CLIP

€ 2.50

27

0935554116600
ref: 27

HOSE(5.4X11.4X600)

€ 12.00

28

8545175100
ref: 28

VALVE,2WAY CHECK

€ 27.00

29

0940800140
ref: 29

CLAMP

€ 6.00

30

0935554116600
ref: 30

HOSE(5.4X11.4X600)

€ 12.00

31

0940110409
ref: 31

CLIP

€ 2.50

32

3481010F00
ref: 32

GAUGE ASSY,FUEL LEVEL

€ 98.00

33

3482545100
ref: 33

GASKET,FUEL LEVEL GAUGE (NAS)

€ 7.00

34

0911705003
ref: 34

BOLT 5X10

€ 2.00
