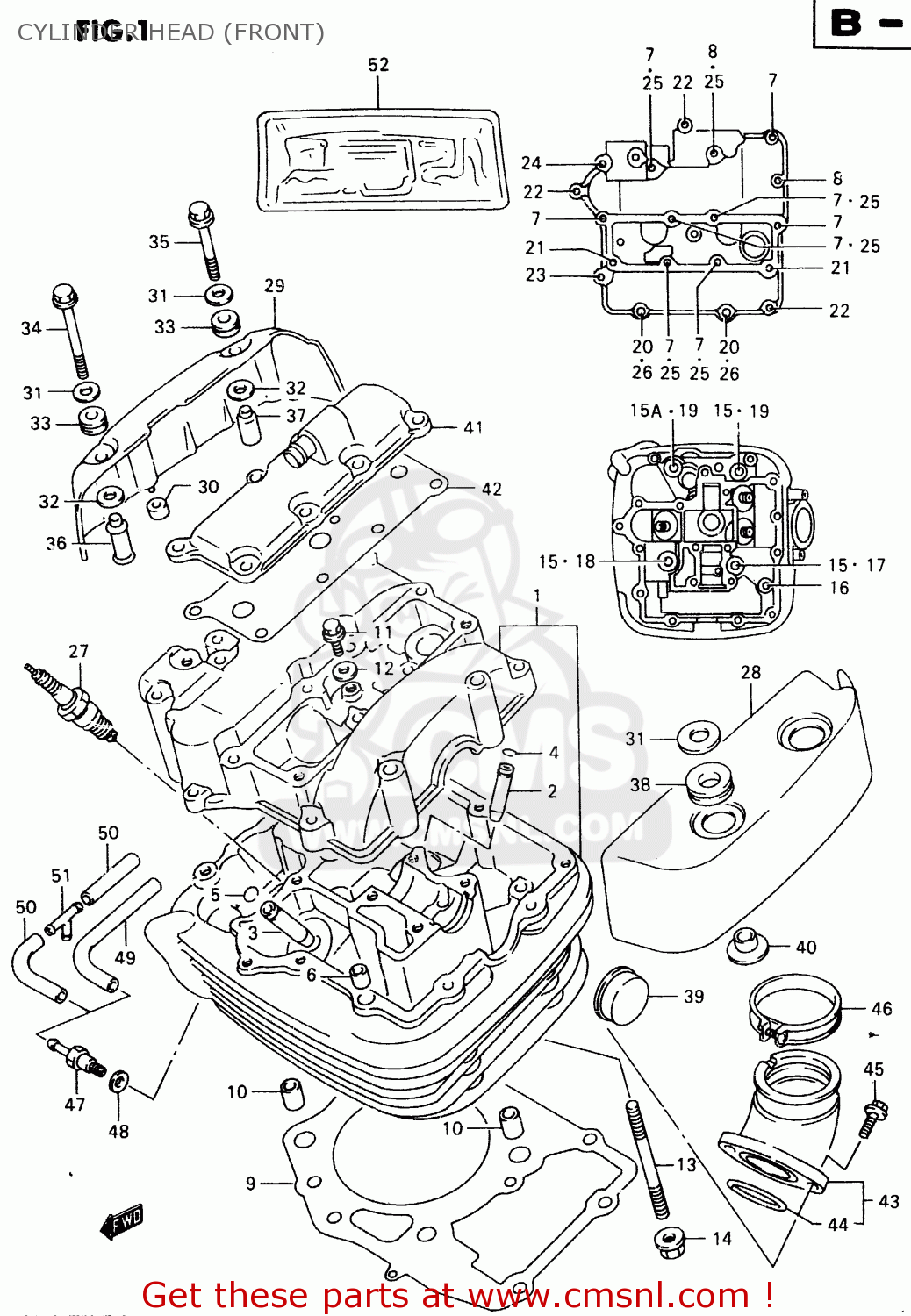

CYLINDER HEAD (FRONT)

ref

part #

description

quantity

1-1

1110110F00
ref: 1-1

HEAD ASSY,CYLINDER FR

€ 1,198.00

1-2

1110110F10
ref: 1-2
E18

HEAD ASSY,CYLINDER FR

€ 1,170.50

2

1111538B70
ref: 2

GUIDE,INTAKE VALVE

€ 18.50

3

1111545740
ref: 3

GUIDE,INTAKE VALVE

€ 25.50

4

0938110004
ref: 4

RING,SNAP

€ 1.50

5

0938110003
ref: 5

RING,SNAP

€ 2.50

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7

0910306064
ref: 7

BOLT(6X60)

€ 2.50

8

0910306102
ref: 8

BOLT(6X55)

€ 2.50

9

1114110F00
ref: 9

GASKET,CYLINDER HEAD FR (NAS)

€ 52.00

10

0421113189
ref: 10

PIN

€ 2.50

11

0712006123
ref: 11

BOLT

€ 3.50

12

0916806018
ref: 12

GASKET(6.2X13X1.2) (NAS)

€ 2.00

13

0910808142
ref: 13

BOLT,STUD

€ 3.00

14

0831610087
ref: 14

NUT

€ 2.50

15

0916010060
ref: 15

WASHER (10.5X22X2.3)

€ 2.50

15A

0916810017
ref: 15A

GASKET(10.5X22X2) (NAS)

€ 3.50

16

0910308099
ref: 16

BOLT(8X70)

€ 6.00

17

0910310178
ref: 17

BOLT(10X180)

€ 12.50

18

0910310179
ref: 18

BOLT(10X190)

€ 12.50

19

0910310180
ref: 19

BOLT(10X200)

€ 10.50

20

0910308213
ref: 20

BOLT(8X268)

€ 22.50

21

0155006203
ref: 21

BOLT

€ 2.50

22

0155006303
ref: 22

BOLT

€ 2.50

23

0155006353
ref: 23

BOLT

€ 2.50

24

0155006703
ref: 24

BOLT

€ 2.50

25

0916806023
ref: 25

GASKET(5.8X13X1.2) (NAS)

€ 2.00

26

0916008130
ref: 26

WASHER(8.5X24X1.6)

€ 2.00

27-1

0948200354
ref: 27-1

PLUG,SPARK(DPR7EA-9)

€ 4.00

27-2

0948200355111
ref: 27-2

SPARK PLUG X22EPR-U9

€ 4.00

27-3

0948200334
ref: 27-3
OPT E2, E4, E17, E18

PLUG,SPARK(DPR8EA-9)

€ 4.00

27-4

0948200335111
ref: 27-4
OPT E2, E4, E17, E18

SPARK PLUG X24EPR-U9

€ 4.00

27-5

0948200330
ref: 27-5
OPT E2, E4, E17, E18

PLUG,SPARK(DPR9EA-9)

€ 4.00

27-6

0948200331111
ref: 27-6
OPT E2, E4, E17, E18

SPARK PLUG X27EPR-U9

€ 4.00

28

1117110F00
ref: 28

CAP,CYLINDER HEAD COVER FR,L

€ 116.50

29

1117210F00
ref: 29

CAP,CYLINDER HEAD COVER FR,R

€ 169.50

30

1127324B00
ref: 30

CUSHION,R CAP

€ 4.00

31

0916006084
ref: 31

WASHER(6.5X18X1.6)

€ 2.00

32

0916009016
ref: 32

WASHER(9.5X20X1)

€ 2.00

33

0932009016
ref: 33

CUSHION

€ 2.50

34

0154706707
ref: 34

BOLT

€ 2.50

35

0154706507
ref: 35

BOLT

€ 2.50

36

1117910F00
ref: 36

SPACER,CYL HEAD COVER CAP NO.1

€ 14.50

37

1117910F10
ref: 37

SPACER,CYL HEAD COVER CAP NO.2

€ 8.00

38

0932013015
ref: 38

CUSHION

€ 3.00

39

0924130008
ref: 39

PLUG(OD:30)

€ 7.00

40

0930108007
ref: 40

BUSH

€ 4.00

41

1118038B10
ref: 41

COVER,BREATHER

€ 32.00

42

1117738B01H17
ref: 42

GASKET,BREATHER COVER (NAS)

€ 19.00

43

1310110F00
ref: 43

PIPE ASSY,INTAKE FR

€ 96.00

44

0928041007
ref: 44

O RING(D:1.9,ID:40.7)

€ 10.50

45

0911906092
ref: 45

BOLT(6X16)

€ 2.00

46

0940252208
ref: 46

CLAMP

€ 5.50

47

0936206002
ref: 47

BOLT UNION

€ 11.00

48

0916806018
ref: 48

GASKET(6.2X13X1.2) (NAS)

€ 2.00

49

0935535755600
ref: 49
EXCEPT E18 L:600->15

HOSE(3.5X7.5X600)

€ 10.00

50

0935535755600
ref: 50
E18 L:600->70

HOSE(3.5X7.5X600)

€ 10.00

51

0936704007
ref: 51
E18

3 WAY

€ 3.50

52

1140010850
ref: 52

GASKET SET (NAS)

€ 214.00

all assemblies
