HEADLAMP (E2, E17, E18, E22, E25, E34)

VL1500 1999 (X)

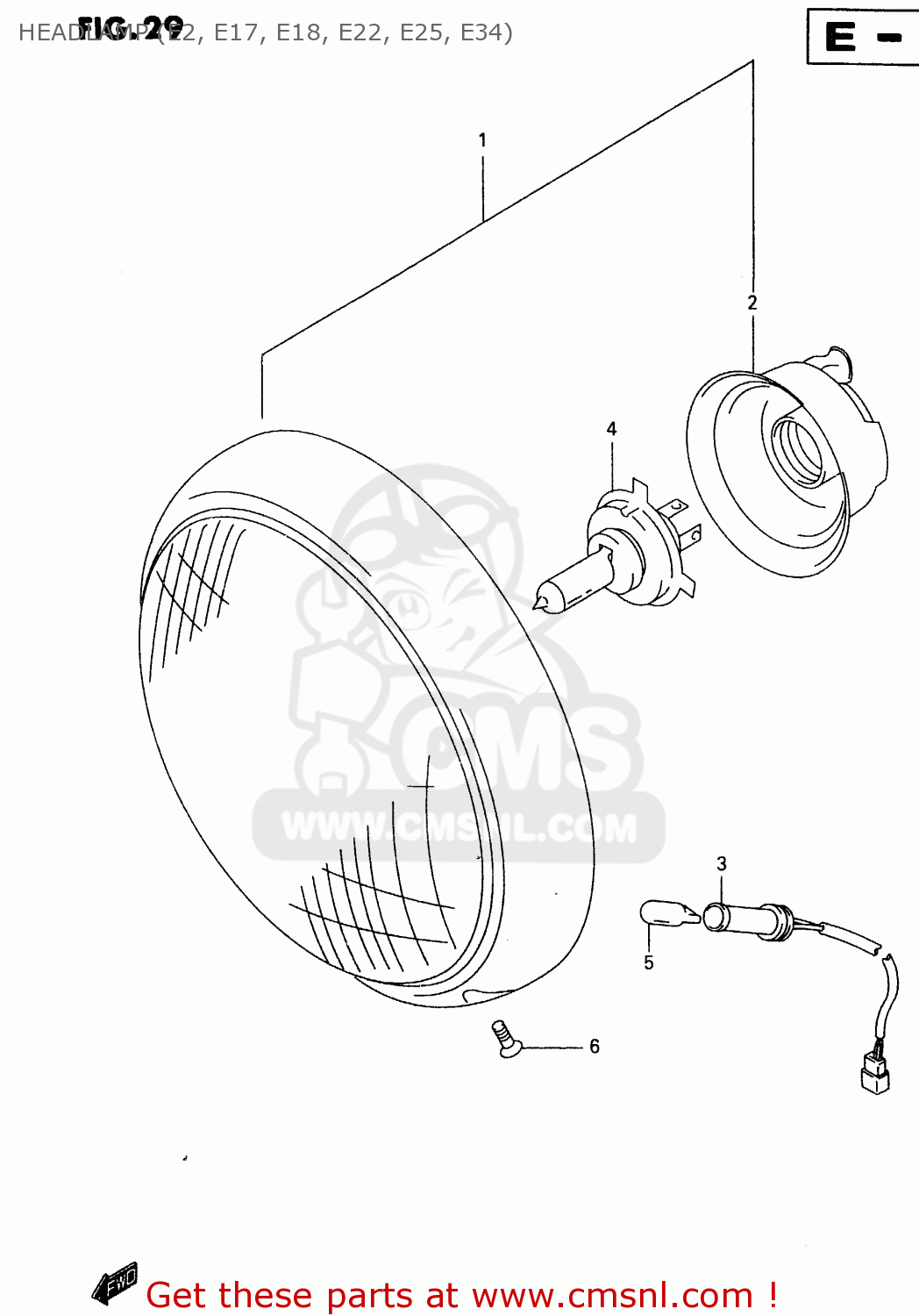

Headlamp (e2, e17, e18, e22, e25, e34) diagram VL1500 1999 (X)

HEADLAMP (E2, E17, E18, E22, E25, E34) VL1500 1999 (X)

HEADLAMP (E2, E17, E18, E22, E25, E34) VL1500 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

3510010F50999
ref: 1

HEADLAMP ASSY

€ 357.50

2

3517321A01
ref: 2

COVER,SOCKET

€ 14.50

3

3611810F50
ref: 3

CORD ASSY

€ 19.00

4

0947112060
ref: 4

BULB(12V60/55W,H4)

€ 8.00

5

0947112063
ref: 5

BULB(12V4W)

€ 6.00

6

0912605003
ref: 6

SCREW(5X12)

€ 2.50
