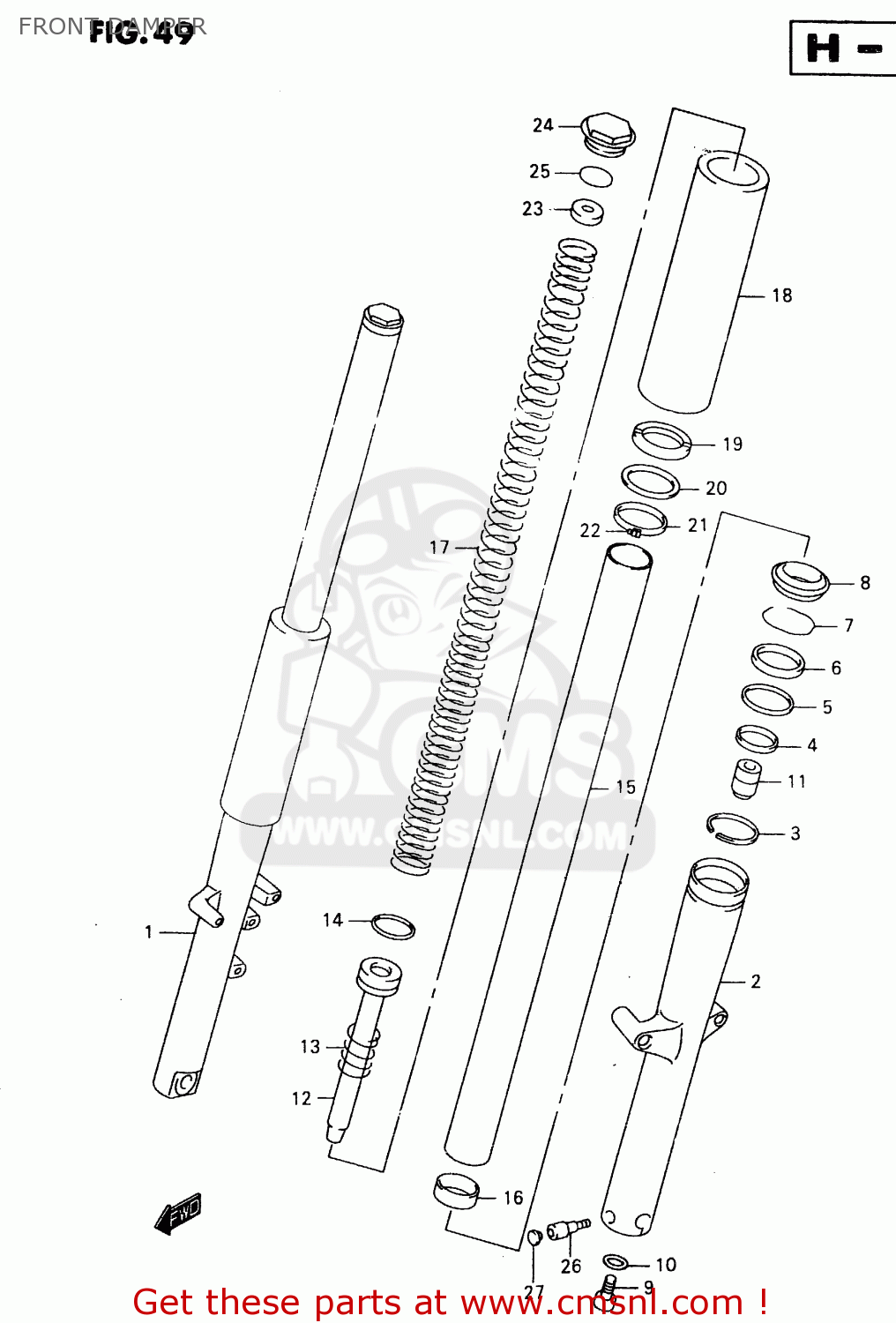

FRONT DAMPER

ref

part #

description

quantity

0

5110310F00
ref: 0

DAMPER ASSEMBLY,FRONT FORK

€ 599.50

0

5110410F00
ref: 0

DAMPER ASSEMBLY,FRONT FORK

€ 771.50

1

5113110F00
ref: 1

TUBE,OUTER,R

€ 444.50

2

5114110F00
ref: 2

TUBE,OUTER,L

€ 444.50

3

5146910F00
ref: 3

GUIDE,CASE

€ 16.00

4

5115211D60
ref: 4

BUSH,GUIDE

€ 12.00

5

5116838B00
ref: 5

SPACER,SEAL

€ 5.00

6

5115308D00
ref: 6

SEAL,OIL

€ 15.50

7

5155638B00
ref: 7

CIRCLIP,FORK OIL SEAL

€ 4.50

8

5157147D50
ref: 8

SEAL,DUST

€ 18.00

9

5114742AA0
ref: 9

BOLT,CENTER (8X18)

€ 3.00

10

5114836011
ref: 10

GASKET (NAS)

€ 4.00

11

5119510F00
ref: 11

PIECE,OIL LOCK

€ 18.50

12

5114610F00
ref: 12

SEAT,PIPE

€ 71.50

13

5117710F00
ref: 13

SPRING,REBOUND

€ 7.00

14

5119647D00
ref: 14

RING,PISTON

€ 6.00

15

5111010F00
ref: 15

TUBE,INNER

€ 465.50

16

5112110F00
ref: 16

BUSHING,SLIDE

€ 15.50

17

5117110F00
ref: 17

SPRING,FR

€ 117.00

18

5146410F00
ref: 18

CASE,UNDER

€ 110.00

19

5146810F00
ref: 19

SEAT,RUBBER

€ 13.50

20

5146710F00
ref: 20

WASHER

€ 8.00

21

5146510F00
ref: 21

SPACER

€ 33.50

22

5146610F00
ref: 22

BOLT

€ 4.50

23

5135310F00
ref: 23

BOLT,FORK INNER

€ 17.50

24

5135138B00
ref: 24

BOLT

€ 81.00

25

5111738B00
ref: 25

O RING

€ 4.00

26

5116610F00
ref: 26

BOLT

€ 8.00

27

0925006009
ref: 27

CAP(OD:14.5)

€ 3.50
