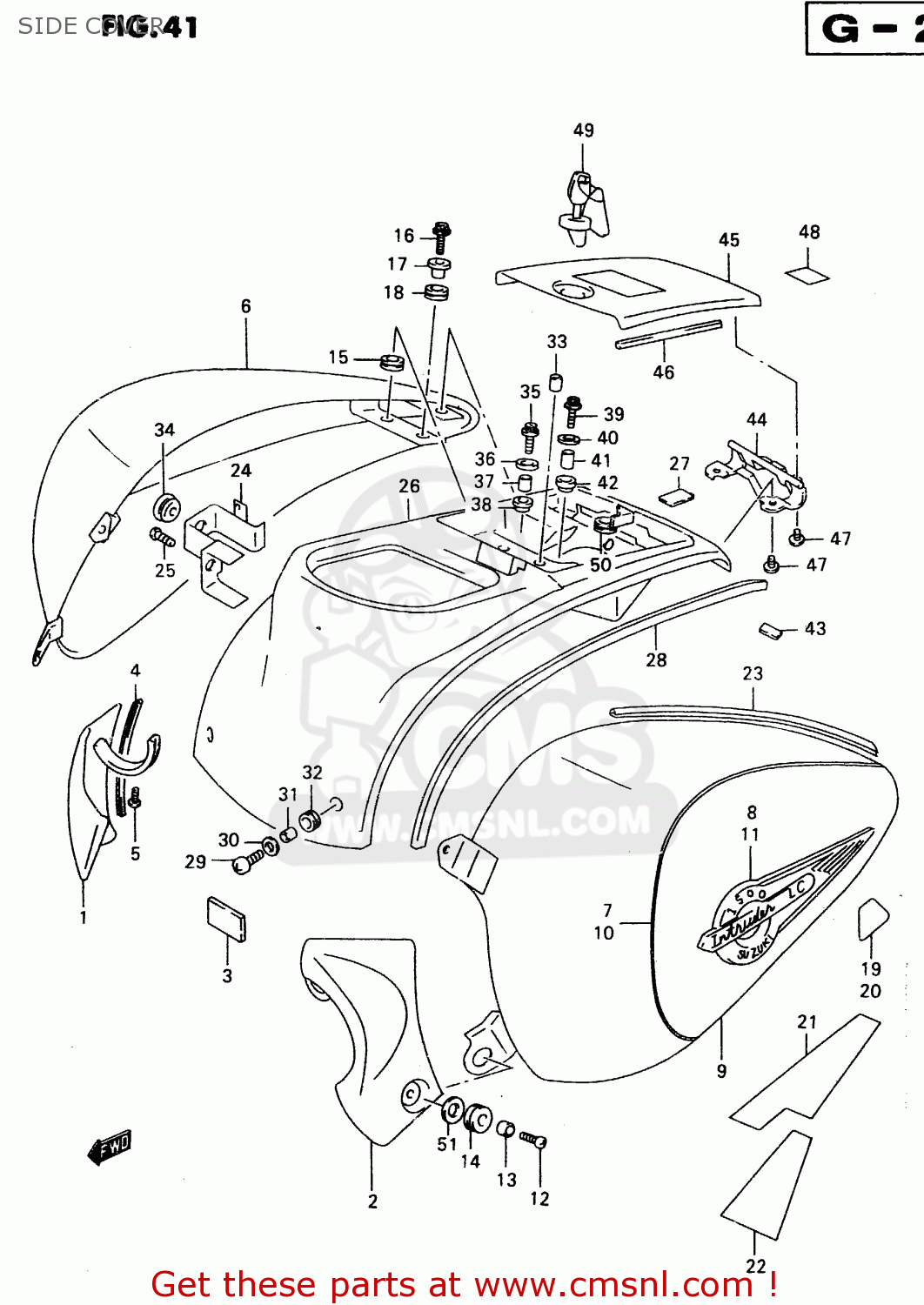

SIDE COVER

ref

part #

description

quantity

1

4751010F00
ref: 1

COVER COMP,FRAME HEAD

€ 120.00

2

4752010F00
ref: 2

COVER COMP,FRAME HEAD

€ 120.00

3

4782910F00
ref: 3

CUSHION,METER COVER RE

€ 3.00

4

4751410F00
ref: 4

MOLDING,FRAME HEAD COVER

€ 5.50

5

0913906028
ref: 5

SCREW(6X20)

€ 3.50

6-1

4780010F00E6M
ref: 6-1

COVER ASSY,SIDE UPR,R

€ 473.50

6-2

4780010F00K7D
ref: 6-2

COVER ASSY,SIDE UPR,R

€ 489.50

6-3

4780010F00K7E
ref: 6-3

COVER ASSY,SIDE UPR,R

€ 486.50

6-4

4780010F00K7F
ref: 6-4

COVER ASSY,SIDE UPR,R

€ 461.50

7-1

6813510F00K7W
ref: 7-1
FOR E6M

TAPE,SIDE COVER UPR,R

€ 62.00

7-2

6813510F00K7Y
ref: 7-2
FOR K7D

TAPE,SIDE COVER,UPPER

€ 61.50

7-3

6813510F00K8A
ref: 7-3
FOR K7E

TAPE,SIDE COVER UPR,R

€ 65.00

7-4

6813510F00K8B
ref: 7-4
FOR K7F

TAPE,SIDE COVER UPR,R

€ 65.50

8

6811110F00
ref: 8

EMBLEM,TANK COVER,R

€ 61.00

9-1

4790010F00E6M
ref: 9-1

COVER ASSY,SIDE UPR,L

€ 486.50

9-2

4790010F00K7D
ref: 9-2

COVER ASSEMBLY,SIDE UPPER

€ 534.00

9-3

4790010F00K7E
ref: 9-3

COVER ASSY,SIDE UPR,L

€ 486.50

9-4

4790010F00K7F
ref: 9-4

COVER ASSEMBLY,SIDE UPPER

€ 460.00

10-1

6814510F00K7W
ref: 10-1
FOR E6M

TAPE,SIDE COVER,UPPER

€ 57.50

10-2

6814510F00K7Y
ref: 10-2
FOR K7D

TAPE,SIDE COVER,UPPER

€ 65.50

10-3

6814510F00K8A
ref: 10-3
FOR K7E

TAPE,SIDE COVER UPR,L

€ 65.00

10-4

6814510F00K8B
ref: 10-4
FOR K7F

TAPE,SIDE COVER,UPPER

€ 87.00

11

6812110F00
ref: 11

EMBLEM,TANK COVER,L

€ 61.00

12

0913906030
ref: 12

SCREW(6X16)

€ 3.50

13

0918006260
ref: 13

SPACER(6.5X9X7.2)

€ 3.50

14

0932008021
ref: 14

CUSHION

€ 4.00

15

4782210F00
ref: 15

CUSHION,SIDE UP METER & FRAME

€ 7.50

16

0712006203
ref: 16

BOLT

€ 3.50

17

4782710F00
ref: 17

WASHER,SIDE UPR COVER

€ 5.00

18

4782610F00
ref: 18

CUSHION,SIDE UPR COVER

€ 7.50

19

4783810F00
ref: 19

TAPE,SIDE COVER UPR,R

€ 7.50

20

4784810F00
ref: 20

TAPE,SIDE COVER UPR,L

€ 7.50

21

4783510F00
ref: 21

CUSHION,SIDE UPR COVER,R

€ 45.00

22

4783610F00
ref: 22

CUSHION,SIDE UPR COVER,R

€ 18.50

23

4783710F00
ref: 23

MOLDING,SIDE UPPER COVER

€ 9.50

24

4785010F00
ref: 24

BRACKET,SIDE UPPER COVER

€ 9.00

25

0214206163
ref: 25

SCREW

€ 2.50

26

4782110F00
ref: 26

COVER,METER & FUEL INLET

€ 693.00

27

6889710F00
ref: 27

TAPE,METER COVER

€ 47.50

28

4782410F00
ref: 28

MOLDING,METER COVER

€ 9.00

29

0913906030
ref: 29

SCREW(6X16)

€ 3.50

30

0916006036
ref: 30

WASHER(6.5X18X1.5)

€ 1.50

31

0918006256
ref: 31

SPACER(6.5X9X5.7)

€ 2.00

32

0932008051
ref: 32

CUSHION

€ 7.50

33

0932106013
ref: 33

CUSHION

€ 2.50

34

0932110007
ref: 34

CUSHION

€ 4.50

35

0712006253
ref: 35

BOLT,OIL PAN

€ 2.50

36

0916006084
ref: 36

WASHER(6.5X18X1.6)

€ 2.00

37

0918006265
ref: 37

SPACER(6.5X9X11)

€ 4.50

38

4782510F00
ref: 38

CUSHION,METER COVER

€ 7.50

39

0712006163
ref: 39

BOLT MAGNETO S

€ 2.50

40

0916006084
ref: 40

WASHER(6.5X18X1.6)

€ 2.00

41

0918006256
ref: 41

SPACER(6.5X9X5.7)

€ 2.00

42

0932008051
ref: 42

CUSHION

€ 7.50

43

4782910F00
ref: 43

CUSHION,METER COVER RE

€ 3.00

44

4738010F00
ref: 44

HINGE COMP,FUEL LID

€ 16.00

45

4781110F00
ref: 45

LID,FUEL INLET

€ 174.00

46

4781210F00
ref: 46

CUSHION,FUEL LID

€ 4.50

47

0214206123
ref: 47

SCREW 6X12

€ 2.00

48

6889810F00
ref: 48

TAPE,FUEL LID

€ 24.50

49

9570007860
ref: 49

LOCK SET,COVER

€ 76.00

50

4782810F00
ref: 50

CUSHION,RR,L

€ 15.00

51

0832201063
ref: 51

WASHER

€ 2.00

all assemblies
