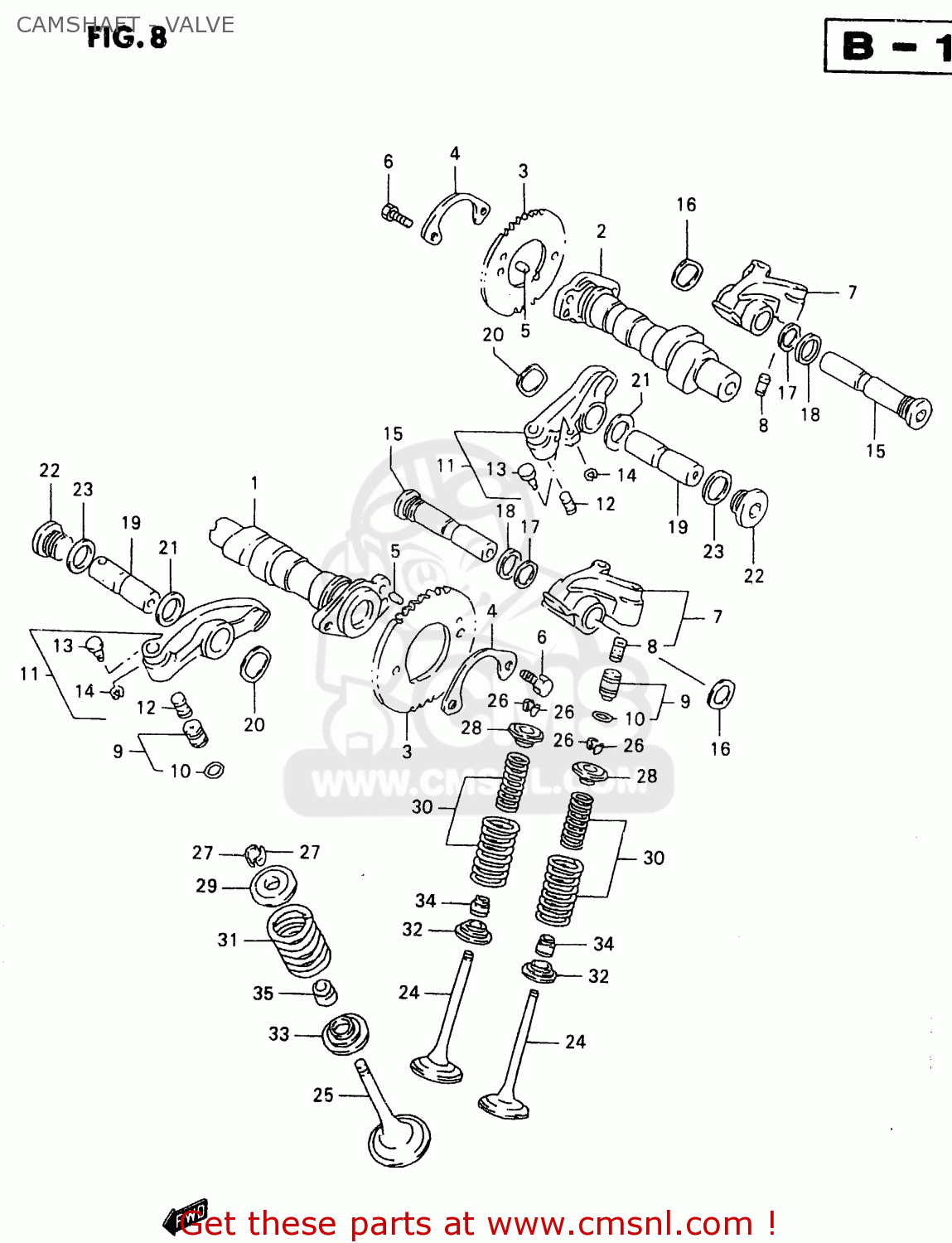

CAMSHAFT - VALVE - VL1500 1999 (X)

ref

part #

description

quantity

1

1271138B00
ref: 1

CAMSHAFT,FR

€ 412.00

2

1271310F00
ref: 2

CAMSHAFT,RR

€ 161.00

3

1274138B00
ref: 3

SPROCKET,CAMSHAFT

€ 53.00

4

1274744000
ref: 4

WASHER,CAM CHAIN SPROCKET

€ 2.00

5

0422105109
ref: 5

PIN

€ 1.50

6

0911106027
ref: 6

BOLT(6X12.5)

€ 1.50

7

1284038B01
ref: 7

ARM,VALVE ROCKER INTAKE

€ 112.50

8

1286338B00
ref: 8

CHAMBER,VALVE LASH ADJUSTER

€ 8.50

9

1286038B00
ref: 9

ADJUSTER,HYDRAULIC VALVE

€ 82.50

10

1286438B00
ref: 10

O-RING,ADJUSTER

€ 7.50

11

1285038B02
ref: 11

ARM,VALVE ROCKER FR EXHAUST

€ 100.50

12

1286338B00
ref: 12

CHAMBER,VALVE LASH ADJUSTER

€ 8.50

13

1284438B00
ref: 13

PIN,DECOMP

€ 16.00

14

0833211033
ref: 14

E RING

€ 1.50

15

1286138B00
ref: 15

SHAFT,INTAKE VALVE ROCKER ARM

€ 50.50

16

0916414012
ref: 16

WASHER

€ 1.50

17

0918114139
ref: 17

SHIM(14X20X1)

€ 2.50

18

0916816003
ref: 18

GASKET(16X22X2) (NAS)

€ 2.00

19

1287138B00
ref: 19

SHAFT,EXHAUST VALVE ROCKER ARM

€ 28.50

20

0916416003
ref: 20

WASHER

€ 2.50

21

0916016033
ref: 21

WASHER(16X26X1)

€ 3.50

22

0924818004
ref: 22

PLUG,18X11

€ 10.50

23

0916818003
ref: 23

GASKET(18X24.2X2) (NAS)

€ 2.00

24

1291138B00
ref: 24

VALVE,INTAKE

€ 81.50

25

1291238B00
ref: 25

VALVE,EXHAUST

€ 55.50

26

1293224400
ref: 26

COTTER,VALVE

€ 2.00

27

1293282000
ref: 27

COTTER,VALVE

€ 2.00

28

1293133200
ref: 28

RETAINER,VALVE SPRING

€ 5.50

29

1293145000
ref: 29

RETAINER,VALVE SPRING

€ 6.00

30

1292006B00
ref: 30

SPRING SET,VALVE

€ 14.00

31

1292244110
ref: 31

SPRING,VALVE OUTER

€ 11.00

32

1293333201
ref: 32

SEAT,VALVE SPRING

€ 4.50

33

1293345001
ref: 33

SEAT,VALVE SPRING

€ 5.50

34

0928905015
ref: 34

SEAL,OIL(5.5X11X8.2)

€ 6.50

35

0928907002
ref: 35

SEAL,OIL(7X14.4X9)

€ 3.00

CAMSHAFT - VALVE
