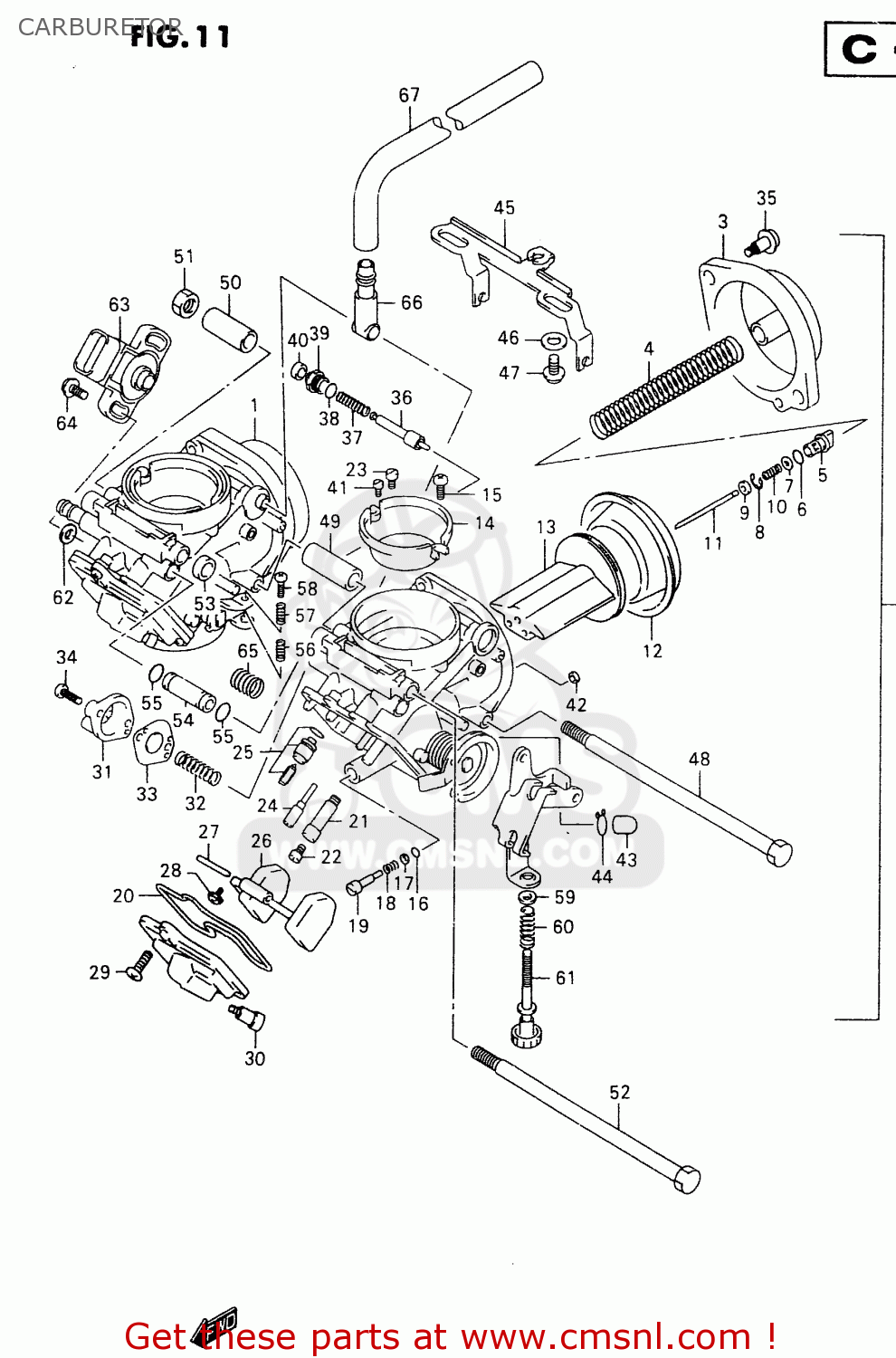

CARBURETOR

ref

part #

description

quantity

1-1

1320110F00
ref: 1-1

CARBURETOR,FR.

€ 770.00

1-2

1320110F20
ref: 1-2
E17, E22, E24

CARBURETOR ASSY, RH

€ 651.50

1-3

1320110F30
ref: 1-3
E18

CARBURETOR ASSY, RH

€ 0.00

2-1

1320210F00
ref: 2-1

CARBURETOR,REA

€ 729.00

2-2

1320210F20
ref: 2-2
E17, E22, E24

CARBURETOR ASSY, LH

€ 620.50

2-3

1320210F30
ref: 2-3
E18

CARBURETOR ASSY, LH

€ 0.00

3

1350234E00
ref: 3

COVER ASSY,DIAPHRAGM

€ 43.50

4

1357310F00
ref: 4

SPRING

€ 10.50

5

1341833E00
ref: 5

HOLDER

€ 4.50

6

0928005004
ref: 6

O RING(D:1.9,ID:4.8)

€ 2.00

7

1338244030
ref: 7

WASHER

€ 3.50

8

1339417E60
ref: 8

E RING,MULTIPLE JET NOZZLE

€ 1.50

9

1338733E00
ref: 9

RING

€ 5.00

10

1348133E00
ref: 10

SPRING

€ 3.00

11-1

1338310F00
ref: 11-1
RH

NEEDLE,JET

€ 19.50

11-2

1338310F10
ref: 11-2
LH

NEEDLE,JET

€ 19.50

12

1350717C01
ref: 12

DIAPHRAGM

€ 24.50

13

1350134E00
ref: 13

VALVE,PISTON

€ 87.50

14

1366734E00
ref: 14

FUNNEL

€ 34.50

15

0211204107
ref: 15

SCREW

€ 2.00

16

1329529900
ref: 16

O RING,PILOT AIR SCREW

€ 4.00

17

1329129900
ref: 17

WASHER

€ 2.00

18

1326848700
ref: 18

SPRING,THROTTLE SCREW

€ 3.50

19

1327933E00
ref: 19

ADJUSTER

€ 9.50

20

1325833E00
ref: 20

O RING

€ 9.50

21

1338533E00
ref: 21

HOLDER,JET

€ 25.00

22-1

0949122014
ref: 22-1
RH

JET,MAIN(112.5)

€ 16.50

22-2

0949122013
ref: 22-2
LH

JET,MAIN(110)

€ 7.50

23

0949155004
ref: 23

JET,MAIN(55)

€ 11.50

24

0949232010
ref: 24

JET,PILOT(32.5)

€ 11.50

25

1337033E80
ref: 25

VALVE ASSY,NEEDLE(NI)

€ 61.00

26

1325033E00
ref: 26

FLOAT ASSY

€ 41.00

27

1325492910
ref: 27

PIN,FLOAT

€ 3.00

28

1360205A10
ref: 28

SCREW

€ 4.00

29

1360314A00
ref: 29

SCREW

€ 3.50

30

1324713A00
ref: 30

SCREW,DRAIN

€ 5.50

31

1350210F00
ref: 31

COVER ASSY

€ 26.00

32

1327110F00
ref: 32

SPRING

€ 4.50

33

1348010F00
ref: 33

DIAPHRAGM ASSY

€ 15.50

34

1360104148
ref: 34

SCREW

€ 2.50

35

1324733E00
ref: 35

SCREW

€ 3.00

36

1341105300
ref: 36

PLUNGER

€ 23.50

37

1341726D00
ref: 37

SPRING

€ 5.50

38

1327847090
ref: 38

O RING

€ 2.00

39

1341844080
ref: 39

GUIDE SCREW,PLUNGER

€ 8.00

40

1368231210
ref: 40

CAP,STARTER VALVE

€ 5.00

41

0949338004
ref: 41

JET,PILOT AIR(1.9)

€ 15.50

42

1329533010
ref: 42

O RING

€ 4.50

43

1327484000
ref: 43

CAP

€ 5.50

44

0940106101
ref: 44

CLIP

€ 2.50

45

1341310F00
ref: 45

LEVER

€ 23.50

46

1355733E00
ref: 46

PACKING

€ 3.00

47

0214204083
ref: 47

SCREW

€ 1.50

48

1361210F10
ref: 48

BOLT

€ 8.50

49

1368510F20
ref: 49

PIPE

€ 8.50

50

1368510F30
ref: 50

PIPE

€ 7.50

51

1332403010
ref: 51

NUT

€ 3.00

52

1361210F00
ref: 52

BOLT

€ 8.50

53

1368510F00
ref: 53

PIPE

€ 5.00

54

1368510F10
ref: 54

PIPE

€ 10.00

55

1324687400
ref: 55

O RING

€ 5.50

56

1326896110
ref: 56

SPRING,THROTTLE SCREW

€ 4.50

57

1327144B00
ref: 57

SPRING

€ 4.00

58

1326744B00
ref: 58

SCREW

€ 3.50

59

1339278B00
ref: 59

WASHER

€ 1.50

60

1327133C00
ref: 60

SPRING

€ 4.50

61

1326710F00
ref: 61

SCREW,ADJUST

€ 15.50

62

1366331010
ref: 62

GASKET,THRO VALVE INSPECTION (NAS)

€ 3.50

63

1358002F00
ref: 63

SENSOR ASSY,THROTTLE

€ 118.50

64

1360255A00
ref: 64

SCREW, SENSOR

€ 3.00

65

1357306C10
ref: 65

SPRING

€ 7.00

66

1368310F00
ref: 66

HOSE

€ 14.00

67

1368321E10
ref: 67

HOSE

€ 27.50
