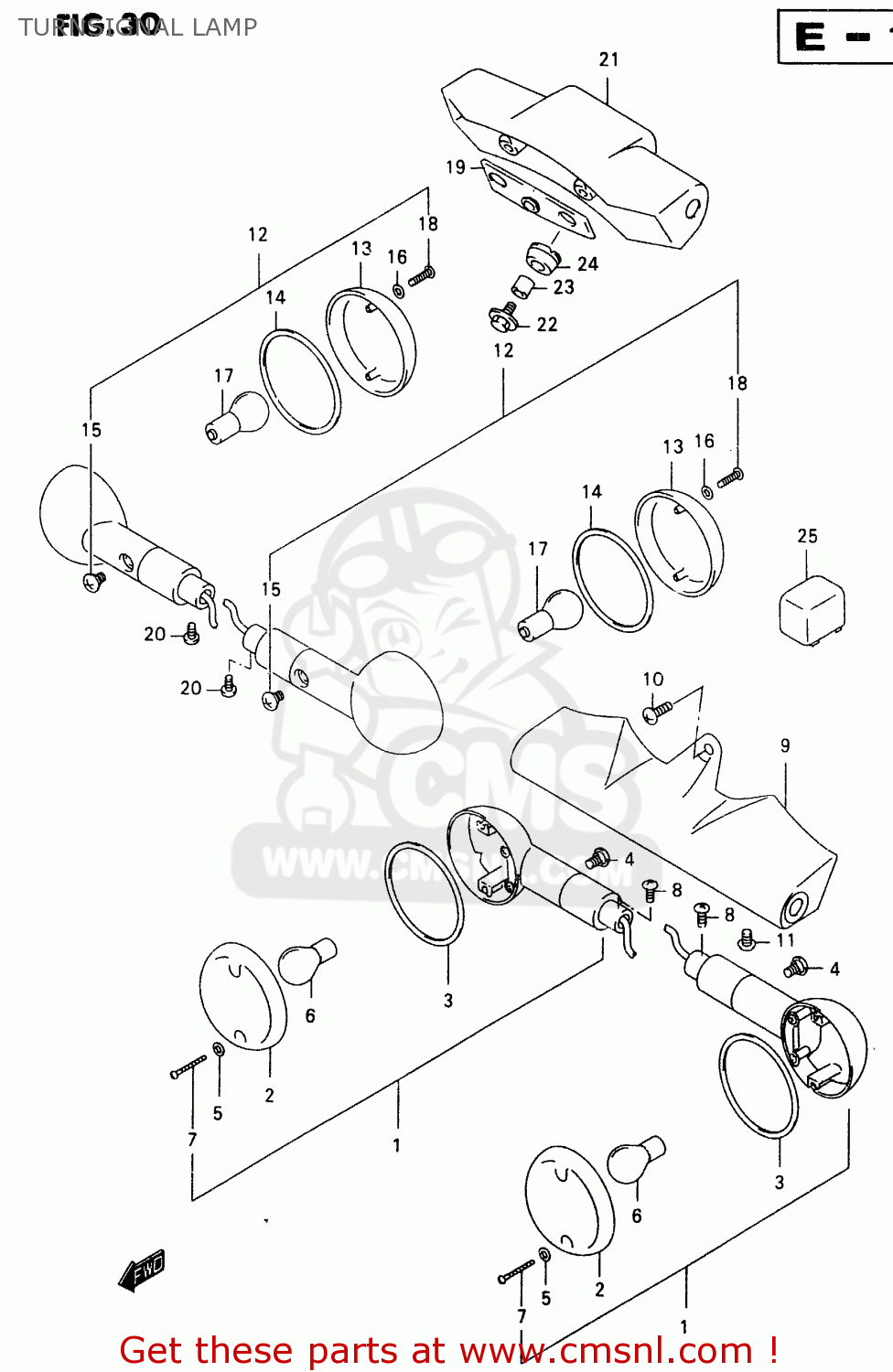

TURNSIGNAL LAMP

ref

part #

description

quantity

1-1

3560110F10
ref: 1-1

LAMP ASSY,FR TURN SIGNAL,R

€ 90.00

1-2

3560210F10
ref: 1-2

LAMP ASSY,FR TURN SIGNAL,L

€ 54.50

2

3561238A01
ref: 2

LENS

€ 10.50

3

3561338A00
ref: 3

GASKET (NAS)

€ 11.50

4

3562338A01
ref: 4

SCREW

€ 5.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112045
ref: 6

BULB(12V21W)

€ 5.00

7

0321104253
ref: 7

SCREW

€ 2.00

8

0214206107
ref: 8

SCREW

€ 2.00

9

3567110F00
ref: 9

STAY,FR TURNSIGNAL

€ 396.00

10

0913906030
ref: 10
6X16

SCREW(6X16)

€ 3.50

11

0913908007
ref: 11
8X16

SCREW(8X16)

€ 4.50

12-1

3560310F10
ref: 12-1

LAMP ASSY,RR TURNSIGNAL,R

€ 102.50

12-2

3560410F10
ref: 12-2

LAMP ASSY,RR TURNSIGNAL,L

€ 108.00

13

3565238A21
ref: 13

LENS

€ 16.50

14

3561338A00
ref: 14

GASKET (NAS)

€ 11.50

15

3562338A01
ref: 15

SCREW

€ 5.50

16

3562743010
ref: 16

GASKET (NAS)

€ 2.00

17

0947112045
ref: 17

BULB(12V21W)

€ 5.00

18

0321104253
ref: 18

SCREW

€ 2.00

19

3567410F00
ref: 19

CUSHION,RR TURN STAY

€ 10.50

20

0214206107
ref: 20

SCREW

€ 2.00

21

3562110F00
ref: 21

STAY,RR TURNSIGNAL

€ 326.50

22

0911606143
ref: 22

BOLT 6X20

€ 2.00

23

0918006310
ref: 23

SPACER(6.5X10X10)

€ 2.00

24

0932009010
ref: 24

CUSHION

€ 2.50

25

3861003F00
ref: 25

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50

all assemblies
