ELECTRICAL (VZR1800BZL4 E03)

VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

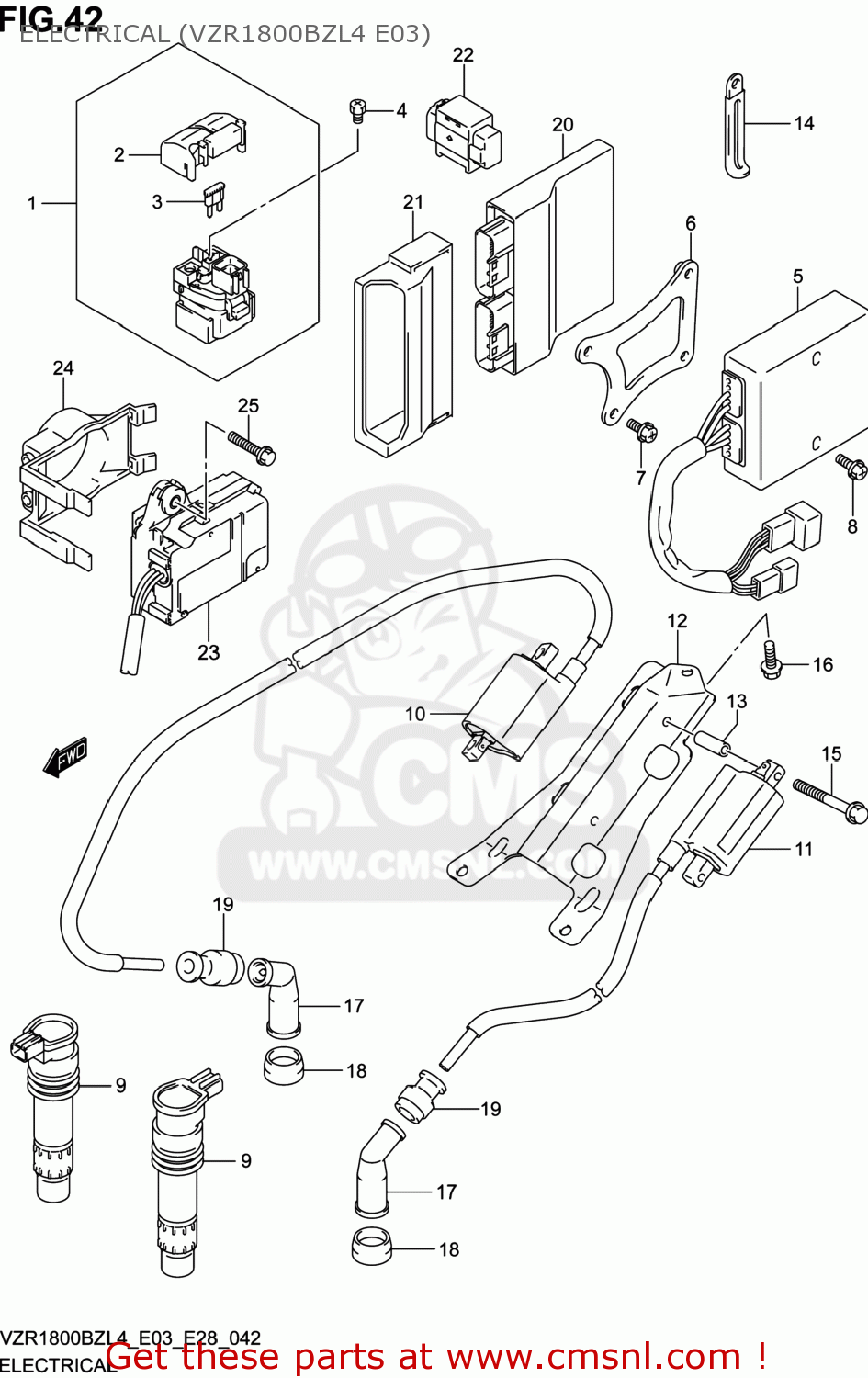

Electrical (vzr1800bzl4 e03) diagram VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

ELECTRICAL (VZR1800BZL4 E03) VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

ELECTRICAL (VZR1800BZL4 E03) VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3180038G10
ref: 1

RELAY ASSY,STARTING MOTOR

€ 77.50

2

3186138G00
ref: 2

COVER

€ 3.50

3

0948130501
ref: 3

FUSE(30A)

€ 0.50

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

3280010G30
ref: 5

RECTIFIER ASSY

€ 243.00

6

3283048G00
ref: 6

BRACKET,RECT FIG

€ 10.00

7

021620620C
ref: 7

SCREW

€ 2.00

8

021620616A
ref: 8
02162-0616B

SCREW

€ 1.50

9

3341035F10
ref: 9

COIL ASSY,IGNITION

€ 122.50

10

3341038A20
ref: 10

COIL ASSY,IGNITION RR

€ 100.50

11

3341048G00
ref: 11

COIL ASSY,IGNITION RR

€ 101.50

12

3341448G00
ref: 12

BRACKET,IGNITION COIL

€ 17.50

13

0918006195
ref: 13

SPACER(6.4X10X18)

€ 3.50

14

0940406433
ref: 14

CLAMP(L:80)

€ 3.00

15

015470535A
ref: 15

BOLT

€ 2.00

16

015500616A
ref: 16

BOLT

€ 2.50

17

3351020E00
ref: 17

CAP ASSY,SPARK PLUG

€ 22.50

18

3354147D00
ref: 18

SEAL,SPARK PLUG

€ 7.00

19

3354238B00
ref: 19

SEAL,HIGH TENSION CORD

€ 4.50

20

3292048GH0
ref: 20

CONTROL UNIT,FI

€ 1,033.00

21

3298048G00
ref: 21

HOLDER,FI CONTROL UNIT

€ 8.50

22

3396006G10
ref: 22

SENSOR ASSY,FUEL CUT

€ 75.00

23

3397048G00
ref: 23

ACTUATOR ASSY,EXHAUST CONTROL

€ 252.50

24

3397348G01
ref: 24

COVER,ACTUATOR

€ 11.50

25

015600625A
ref: 25

BOLT

€ 2.00
