Buy Suzuki VZR Parts Online


HANDLE LEVER

VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

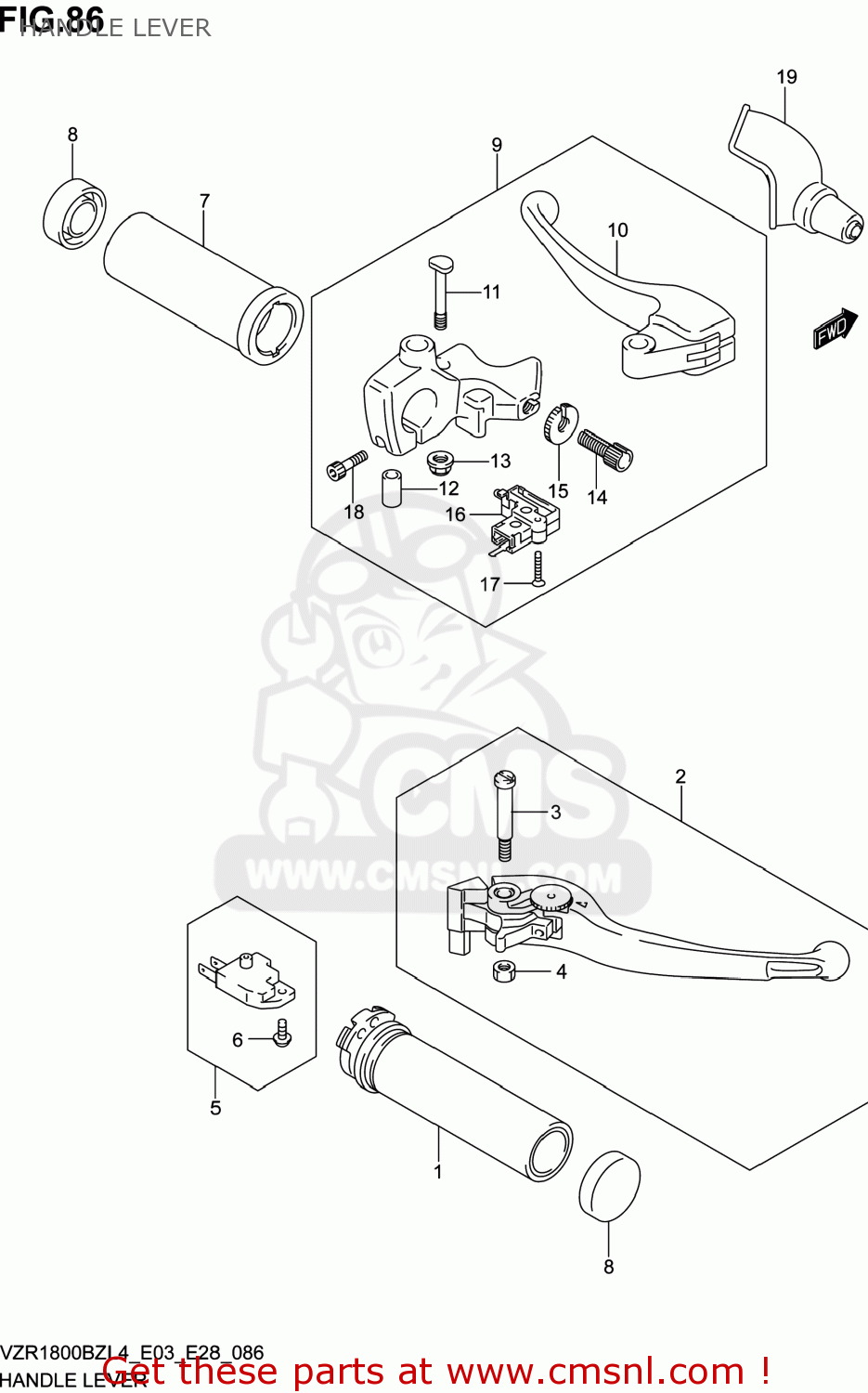

Handle lever diagram VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

HANDLE LEVER VZR1800BZ BOULEVARD 2014 (L4) USA (E03)
HANDLE LEVER VZR1800BZ BOULEVARD 2014 (L4) USA (E03)
HANDLE LEVER VZR1800BZ BOULEVARD 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5711026D20
ref: 1
GRIP,THROTTLE
5711026D20
€ 46.00
2
5730048G20
ref: 2
LEVER ASSY,BRAKE
5730048G20
€ 57.50
3
5743148G00
ref: 3
BOLT,PIVOT
5743148G00
€ 6.00
4
083192106A
ref: 4
NUT
083192106A
€ 2.00
5
5746014J01
ref: 5
SWITCH ASSY,FR BRAKE
5746014J01
€ 32.50
6
5746517C00
ref: 6
SCREW
5746517C00
€ 1.50
7
5721026D10
ref: 7
GRIP,L
€ 35.50
8
5721638A10
ref: 8
CAP,GRIP,END
5721638A10
€ 21.50
9
5750048G30
ref: 9
LEVER ASSY,CLUTCH
€ 66.50
10
5762148G20
ref: 10
LEVER,CLUTCH
€ 30.50
11
5753148G00
ref: 11
BOLT,LEVER PIVOT
€ 20.00
12
5762348G00
ref: 12
COLLAR
5762348G00
€ 17.50
13
083193106A
ref: 13
NUT
083193106A
€ 2.50
14
5744108C00
ref: 14
ADJUSTER,WIRE
€ 6.50
15
5744208C00
ref: 15
NUT,LOCK
€ 8.50
16
5756005A10
ref: 16
SWITCH ASSY,CLUTCH
5756005A10
€ 25.50
17
5756241G00
ref: 17
SCREW
€ 6.50
18
071300620A
ref: 18
BOLT
€ 3.00
19
5754148G10
ref: 19
COVER,CLUTCH LEVER
5754148G10
€ 6.00
