REAR CYLINDER HEAD

VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

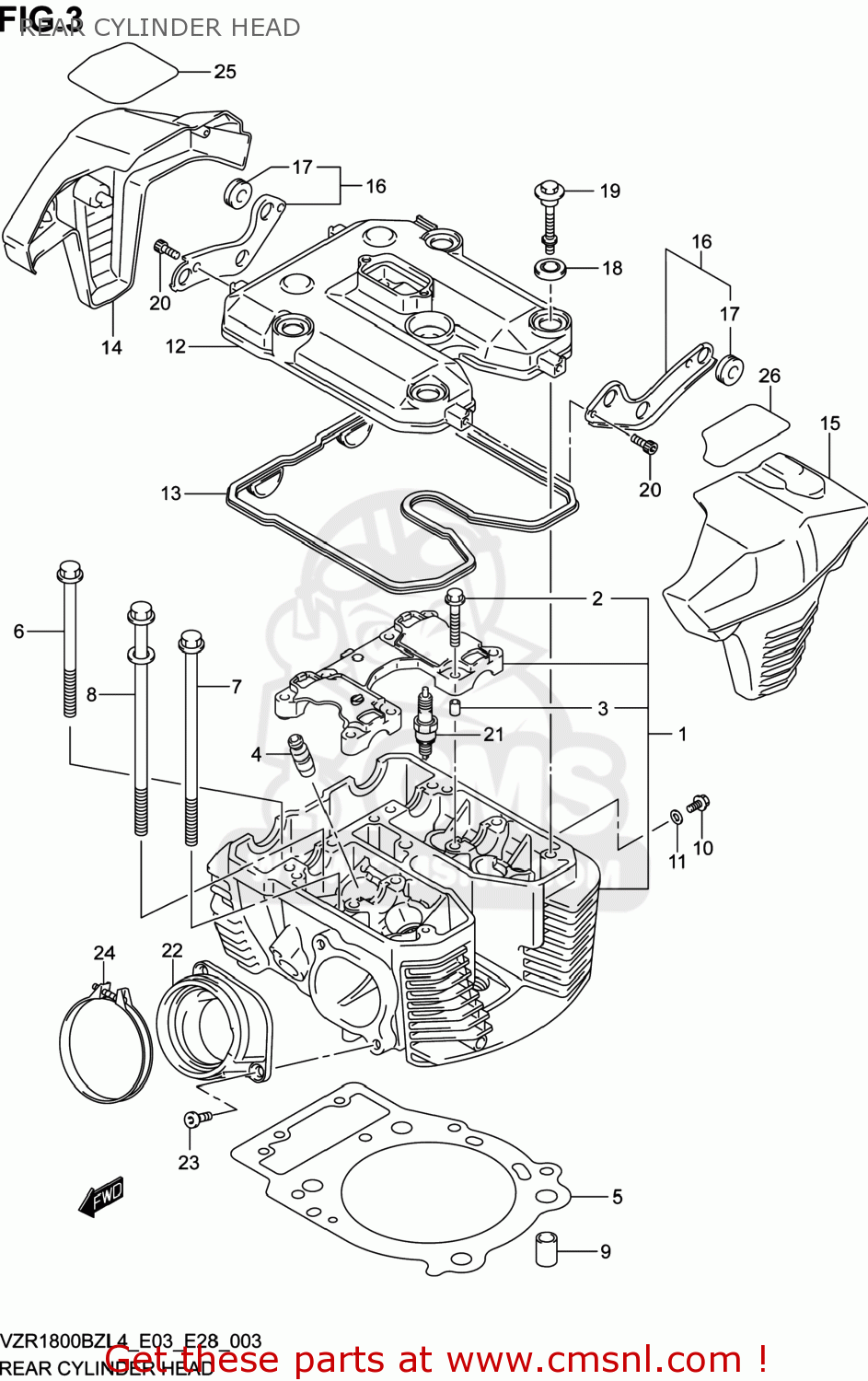

Rear cylinder head diagram VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

REAR CYLINDER HEAD VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

REAR CYLINDER HEAD VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1110348G10
ref: 1

HEAD ASSY,CYLINDER RR

€ 1,370.50

2

0910306026
ref: 2

BOLT(6X39)

€ 2.00

3

0920608001
ref: 3

PIN(6.2X8X11)

€ 2.00

4

1111565J00001
ref: 4

GUIDE,VALVE

€ 15.00

5

1114248G00
ref: 5

GASKET,CYLINDER HEAD RR (NAS)

€ 31.50

6

0910308305
ref: 6

BOLT(8X140)

€ 11.00

7

0910308415
ref: 7

BOLT(8X180)

€ 7.00

8

0910310396
ref: 8

BOLT(10X19)

€ 17.50

9

0421113189
ref: 9

PIN

€ 2.50

10

0910306222
ref: 10

BOLT(6X12)

€ 2.00

11

0916806023
ref: 11

GASKET(5.8X13X1.2) (NAS)

€ 2.00

12

1117048G00
ref: 12

COVER,CYLINDER HEAD

€ 220.00

13

1117348G00
ref: 13

GASKET,CYL HEAD COVER (NAS)

€ 22.50

14

1117448G20
ref: 14

CAP,CYL HEAD COVER NO.1

€ 64.00

15

1117548G20
ref: 15

CAP,CYL HEAD COVER NO.2

€ 58.00

16

1118048G00
ref: 16

BRACKET,HEAD COVER CAP

€ 9.00

17

0932008013
ref: 17

CUSHION

€ 4.00

18

1119213E00
ref: 18

CUSHION,HEAD COVER BOLT

€ 4.50

19

0911106091
ref: 19

BOLT(6X52)

€ 13.50

20

071300612A
ref: 20

BOLT

€ 2.50

21-1

0948200412
ref: 21-1

PLUG,SPARK(CR8EK)

€ 11.00

21-2

0948200413
ref: 21-2

PLUG,SPARK(U24ETR)

€ 11.00

21-3

0948200410
ref: 21-3

PLUG,SPARK(CR9EK)

€ 10.50

21-4

0948200411
ref: 21-4
09482-00459

PLUG,SPARK(U27ETR)

€ 8.50

21-5

0948200414
ref: 21-5

PLUG,SPARK(CR7EK)

€ 12.50

21-6

0948200415
ref: 21-6

PLUG,SPARK(U22ETR)

€ 13.50

22

1310148G00
ref: 22

PIPE ASSY,INTAKE

€ 74.00

23

0912006008
ref: 23

BOLT(6X20.5)

€ 2.50

24

1317022H00
ref: 24

CLAMP,INTAKE PIPE

€ 5.50

25

1117848G00
ref: 25

PROTECTOR,HEAD COVER CAP NO.1

€ 7.00

26

1117848G10
ref: 26

PROTECTOR,HEAD COVER CAP NO.2

€ 6.00
