Buy Suzuki VZR Parts Online


FUEL TANK (VZR1800BZL4 E03)

VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

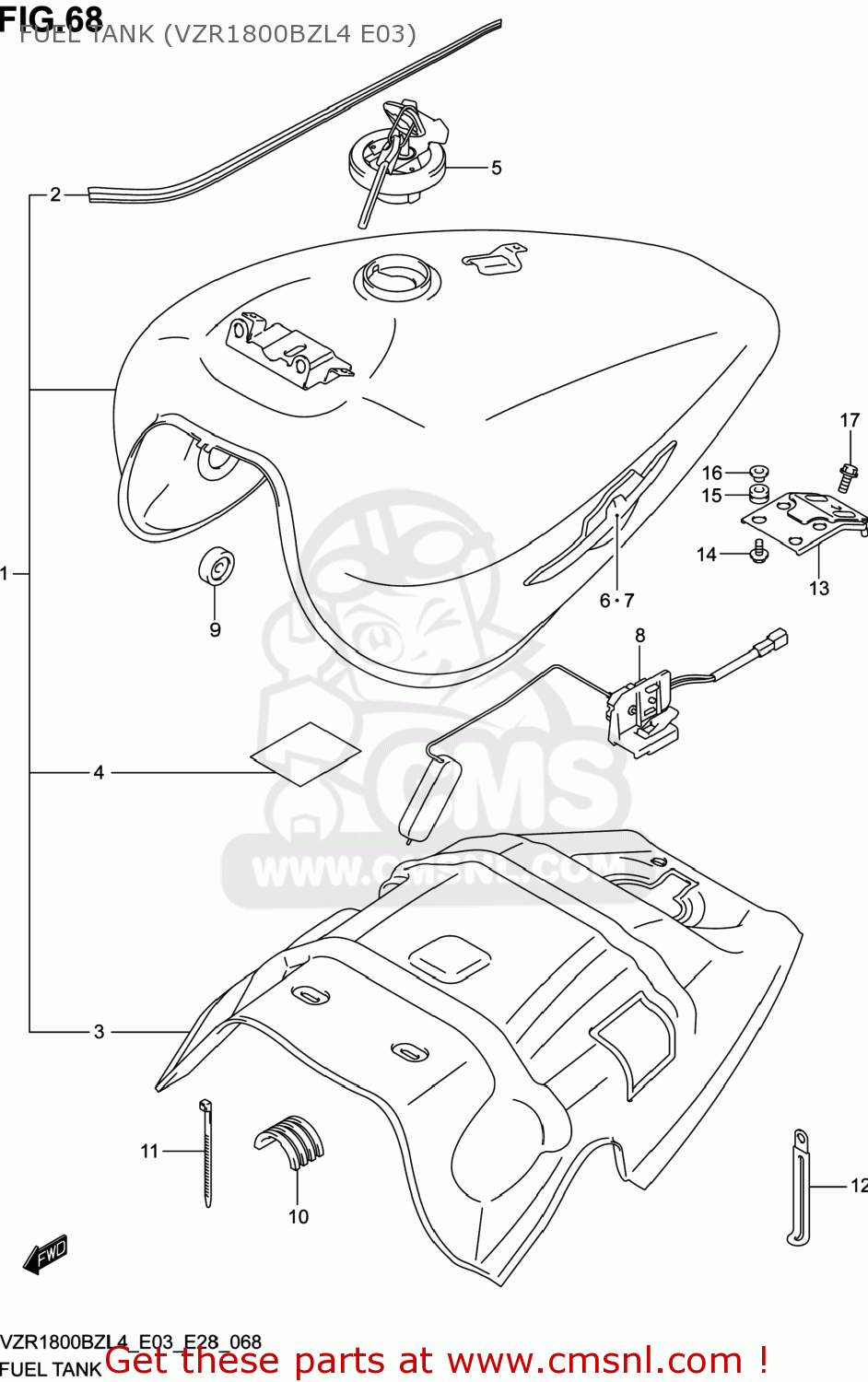

Fuel tank (vzr1800bzl4 e03) diagram VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

FUEL TANK (VZR1800BZL4 E03) VZR1800BZ BOULEVARD 2014 (L4) USA (E03)
FUEL TANK (VZR1800BZL4 E03) VZR1800BZ BOULEVARD 2014 (L4) USA (E03)
FUEL TANK (VZR1800BZL4 E03) VZR1800BZ BOULEVARD 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4410048GN0KGK
ref: 1
TANK ASSY,FUEL
€ 1,049.00
1
4410048GN0KGK
ref: 1
TANK ASSY,FUEL
€ 1,049.00
2
6811048GB0ANW
ref: 2
TAPE SET,FUEL TANK
€ 190.50
3
4419148G10
ref: 3
SHIELD,FUEL TANK HEAT
4419148G10
€ 225.00
4
4419248G00
ref: 4
TAPE,HEAT SHIELD
€ 9.50
5
4420039860
ref: 5
CAP SET,FUEL TANK
€ 192.00
6
6811148G01
ref: 6
EMBLEM,FUEL TANK,R
6811148G01
€ 57.00
7
6812148G01
ref: 7
EMBLEM,FUEL TANK,L
6812148G01
€ 57.00
8
3481048G00
ref: 8
GAUGE ASSY,FUEL LEVEL SENDER
3481048G00
€ 88.50
9
0932910007
ref: 9
CUSHION
0932910007
€ 3.00
10
4454113E10
ref: 10
CUSHION,FUEL TANK
4454113E10
€ 13.00
11
0940730402
ref: 11
CLAMP(L:300)
0940730402
€ 3.50
12
0940406434
ref: 12
CLAMP(L:80 T:1.0)
0940406434
€ 3.00
13
4453048G10
ref: 13
BRACKET,FUEL TANK RR
€ 28.50
14
0911606192
ref: 14
BOLT(6X20)
0911606192
€ 2.00
15
0932008001
ref: 15
CUSHION
0932008001
€ 3.50
16
0916906062
ref: 16
WASHER
0916906062
€ 3.00
17
015500816A
ref: 17
BOLT
015500816A
€ 2.50
