WIRING HARNESS (VZR1800BZL4 E28)

VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

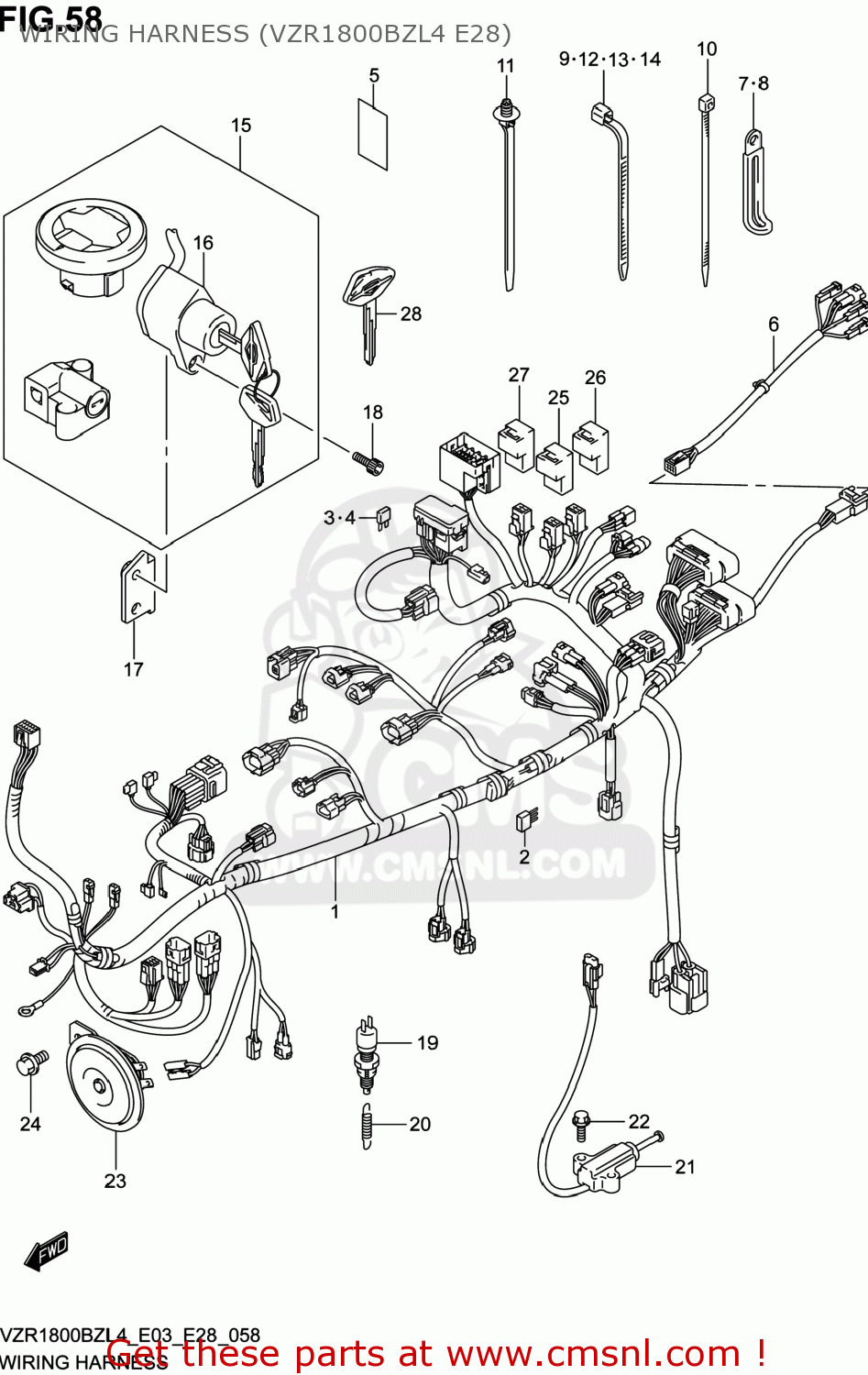

Wiring harness (vzr1800bzl4 e28) diagram VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

WIRING HARNESS (VZR1800BZL4 E28) VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

WIRING HARNESS (VZR1800BZL4 E28) VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3661048GE0
ref: 1

HARNESS,WIRING

€ 610.00

2

3661138A00
ref: 2

DIODE(STANLEY DE8804)

€ 13.00

3

0948110501
ref: 3

FUSE(10A)

€ 3.00

4

0948115501
ref: 4

FUSE(15A)

€ 1.00

5

3661116G00
ref: 5

TAPE,WIRING HARNESS(28X50X0.13

€ 2.00

6

3685848G00
ref: 6

WIRE,RR COMB

€ 41.50

7

0940406429
ref: 7

CLAMP(L:45)

€ 2.50

8

0940406429
ref: 8

CLAMP(L:45)

€ 2.50

9

0940714403
ref: 9

CLAMP(L:125)

€ 2.50

10

0940714407
ref: 10

CLAMP(L:145)

€ 4.00

11

0940717403
ref: 11

CLAMP(L:154)

€ 5.50

12

0940718402
ref: 12

CLAMP(L:165)

€ 2.50

13

0940719401
ref: 13

CLAMP(L:190)

€ 2.00

14

0940725401
ref: 14

CLAMP(L:235)

€ 4.00

15

3700049890
ref: 15

LOCK SET

€ 295.00

16

3711048G50
ref: 16

SWITCH ASSY,IGNITION

€ 107.00

17

3711948G00
ref: 17

BRACKET,IGNITION SWITCH

€ 4.00

18

071300616A
ref: 18
07130-0616B

BOLT

€ 3.00

19

3774024A00
ref: 19

SWITCH ASSY,STOP LAMP

€ 20.50

20

0944306077
ref: 20

SPRING

€ 4.50

21

3784025D00
ref: 21

SWITCH ASSY,SIDE STAND

€ 63.50

22

015500625A
ref: 22

BOLT

€ 2.50

23

3850048G01
ref: 23

HORN ASSY

€ 55.50

24

015500812A
ref: 24

BOLT

€ 2.50

25

3874024X50
ref: 25

RELAY ASSY

€ 37.50

26

3874024X50
ref: 26

RELAY ASSY

€ 37.50

27

3874024A00
ref: 27

RELAY ASSY

€ 39.00

28

3714610F00
ref: 28

KEY,BLANK(BOULEVARD)

€ 65.00
