HANDLE SWITCH

VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

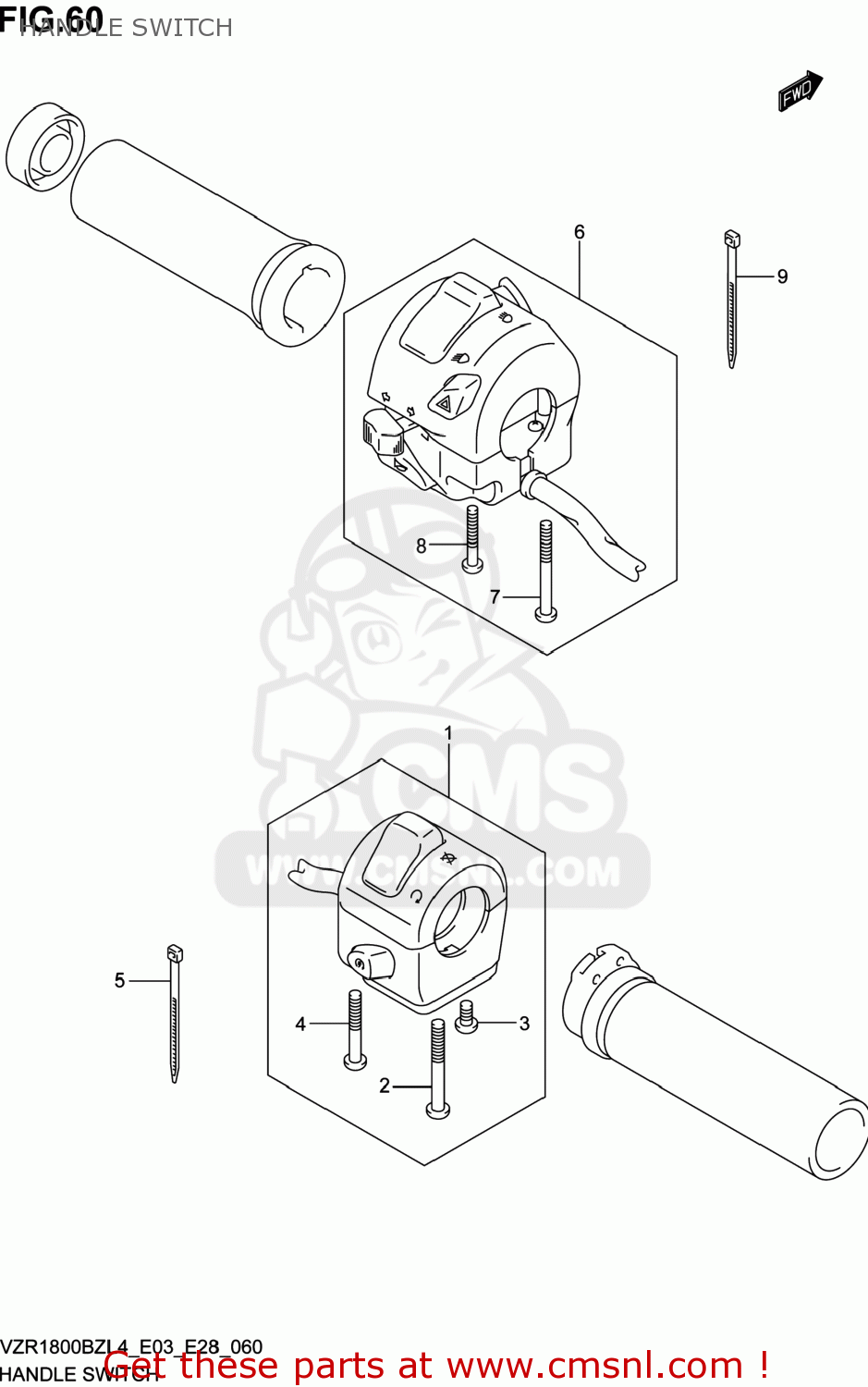

Handle switch diagram VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

HANDLE SWITCH VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

HANDLE SWITCH VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3720006J00
ref: 1

SWITCH ASSY,HANDLE,R

€ 176.50

2

021120545B
ref: 2

SCREW

€ 4.00

3

021120510B
ref: 3

SCREW

€ 2.00

4

021120535B
ref: 4

SCREW

€ 1.50

5

0940714407
ref: 5

CLAMP(L:145)

€ 4.00

6

3740048GB0
ref: 6

SWITCH ASSY,HANDLE,L

€ 217.50

7

021120545B
ref: 7

SCREW

€ 4.00

8

021120530B
ref: 8

SCREW

€ 1.50

9

0940714407
ref: 9

CLAMP(L:145)

€ 4.00
