REAR WHEEL
VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

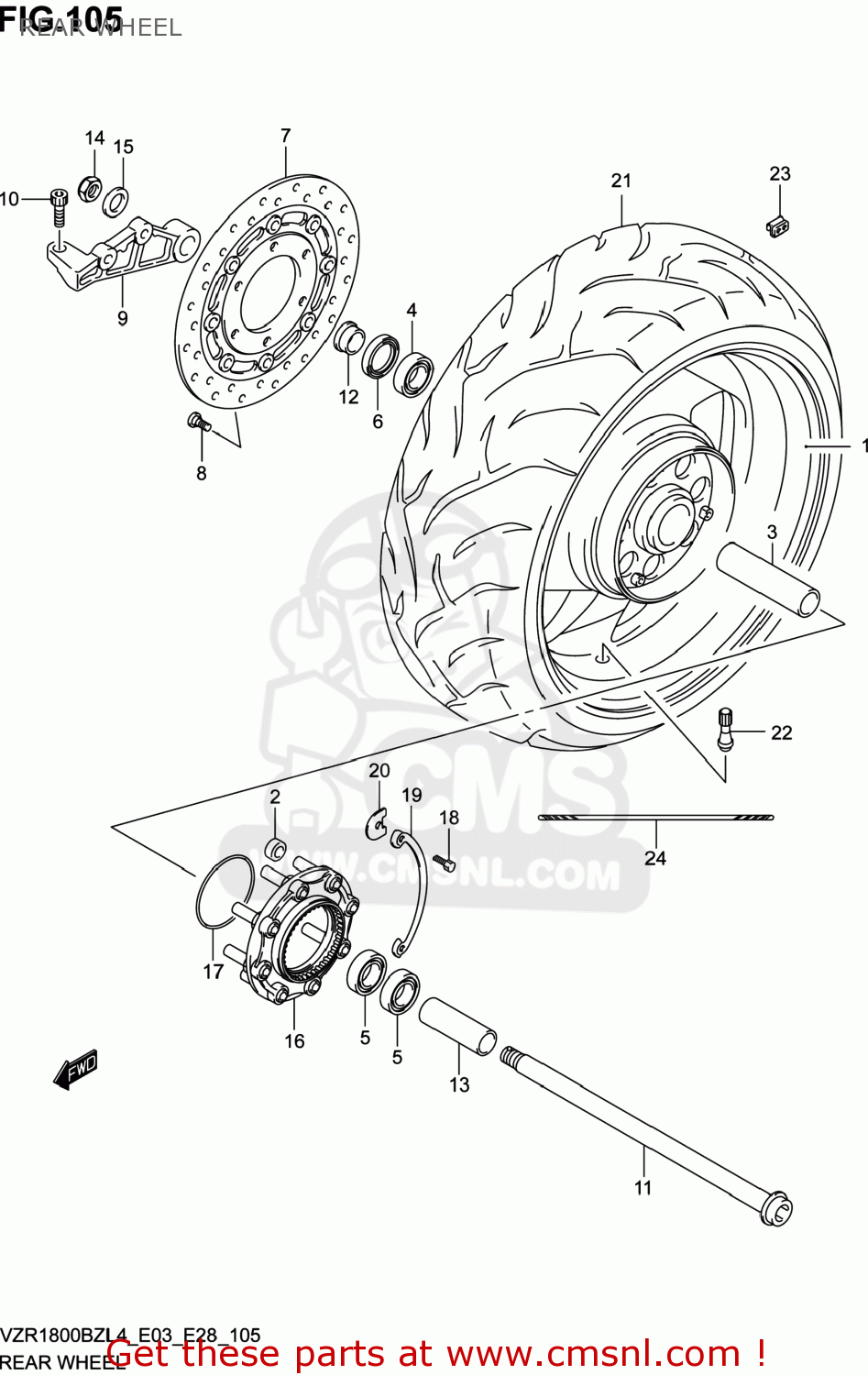

Rear wheel diagram VZR1800BZ BOULEVARD 2014 (L4) USA (E03)
REAR WHEEL VZR1800BZ BOULEVARD 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6410048820019
ref: 1
WHEEL,RR(18M/CXMT8.50)
€ 2,307.00
1
6410048820019
ref: 1
WHEEL,RR(18M/CXMT8.50)
€ 2,307.00
2
0931912019
ref: 2
BUSH
€ 10.50
3
6473148G00
ref: 3
SPACER,RR WHEEL BEARING
€ 45.50
4
0926225072
ref: 4
BEARING(25X52X15)
€ 14.00
5
0814362057
ref: 5
BEARING
€ 24.50
6
0928532004
ref: 6
SEAL,OIL(32X52X7)
€ 8.00
7
6921010F60
ref: 7
DISC,RR BRAKE
€ 248.50
8
0910608160
ref: 8
BOLT(8X21)
€ 3.50
9
6972148G10
ref: 9
BRACKET,RR CALIPER
€ 160.50
10
0910312109
ref: 10
BOLT(12X40)
€ 3.50
11
6471148G00
ref: 11
AXLE,RR
€ 114.00
12
6474148G00
ref: 12
SPACER,RR AXLE,R
€ 10.50
13
6477248G00
ref: 13
SPACER,RR AXLE,L
€ 25.50
14
0915922007
ref: 14
NUT
€ 20.00
15
0916022081
ref: 15
WASHER(22X35X2)
€ 2.00
16
6468048G00
ref: 16
JOINT ASSY,RR HUB DRIVEN
€ 283.50
17
0928080001
ref: 17
O RING(D:2.4,ID:79.8)
€ 3.50
18
0911906049
ref: 18
BOLT(6X16)
€ 1.50
19
6467948G00
ref: 19
WASHER,RR HUB DRIVEN JOINT
€ 4.00
20
6467748G10
ref: 20
WASHER,THRUST
€ 4.50
21
6511048G01
ref: 21
TIRE,RR
€ 350.50
21
6511048G01
ref: 21
TIRE,RR
€ 350.50
22
4313024A00
ref: 22
VALVE ASSY,WHEEL RIM(TR412)
€ 7.00
23-1
5541122H00
ref: 23-1
BALANCER,WHEEL(10G)
€ 4.50
23-2
5541222H00
ref: 23-2
BALANCER,WHEEL(20G)
€ 5.50
23-3
5541322H00
ref: 23-3
BALANCER,WHEEL(30G)
€ 6.00
24
6825148G00ETB
ref: 24
TAPE,WHEEL
€ 40.00
