FRONT MASTER CYLINDER

VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

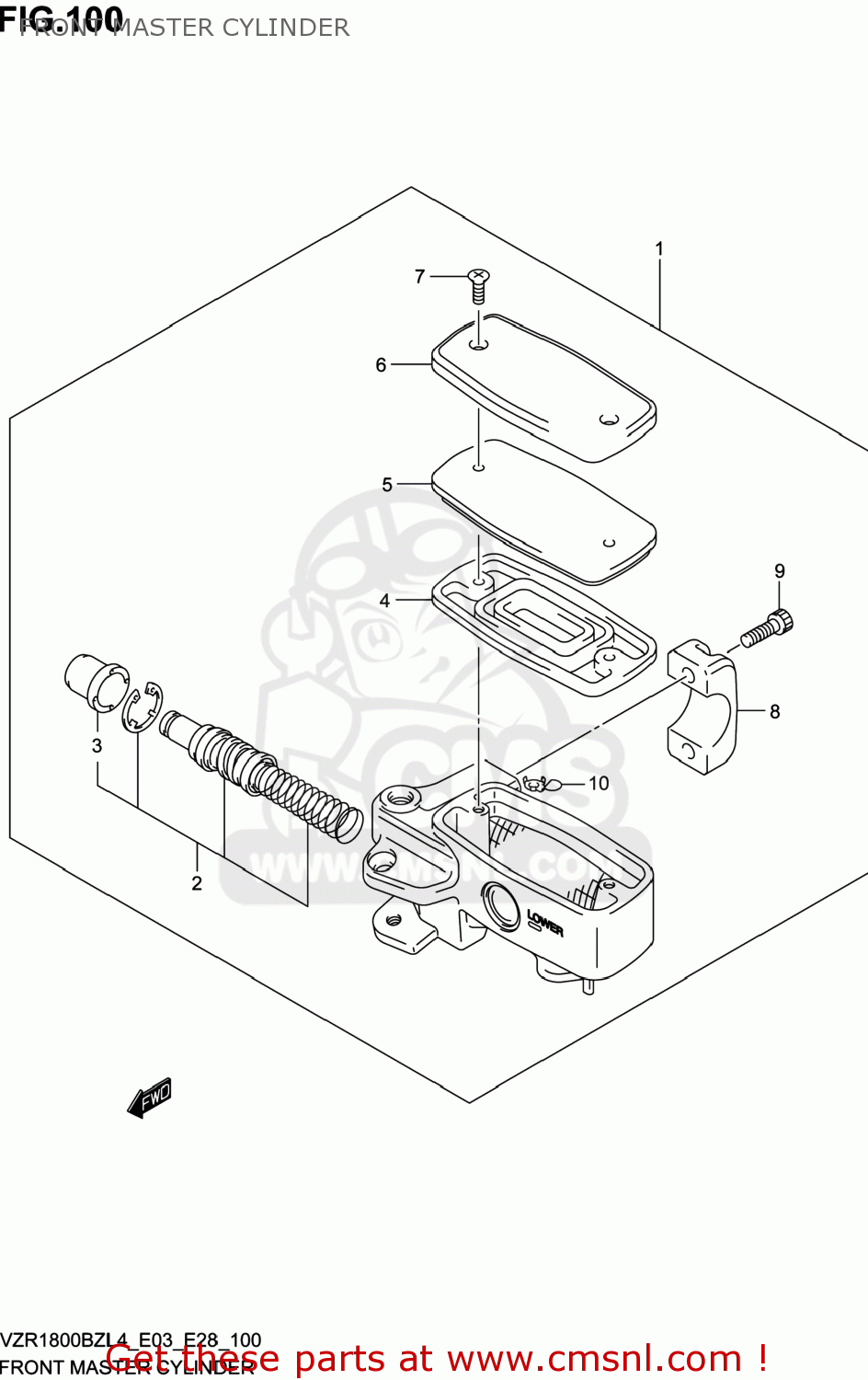

Front master cylinder diagram VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

FRONT MASTER CYLINDER VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

FRONT MASTER CYLINDER VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5960010FD0
ref: 1

CYLINDER ASSY,FRONT MASTER

€ 307.50

2

5960145810
ref: 2

PISTON/CUP SET

€ 34.00

3

5966644300
ref: 3

BOOT

€ 6.00

4

5966710F00
ref: 4

DIAPHRAGM

€ 7.00

5

5743710F00
ref: 5

PLATE,DIAPHRAGM

€ 13.00

6

5966910F40
ref: 6

CAP

€ 41.00

7

6968949300
ref: 7

SCREW

€ 1.50

8

5967110F20
ref: 8

HOLDER

€ 27.50

9

0713006207
ref: 9

BOLT

€ 3.50

10

5966432F00
ref: 10

PROTECTOR

€ 7.50
