FRAME BODY COVER

VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

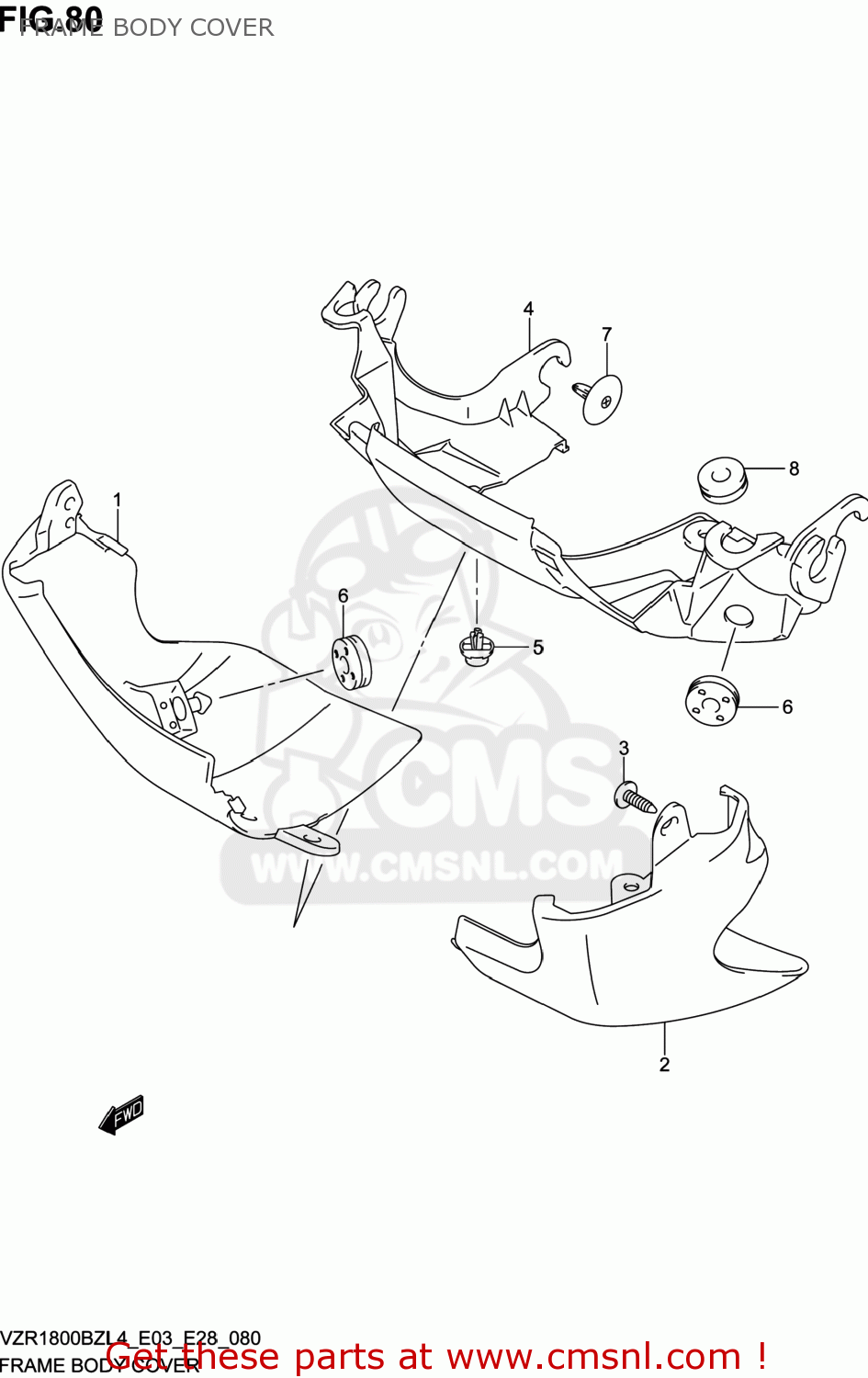

Frame body cover diagram VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

FRAME BODY COVER VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

FRAME BODY COVER VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4751148G50
ref: 1

COVER,FRAME BODY,R

€ 49.50

2

4752148G50
ref: 2

COVER,FRAME BODY,L

€ 49.50

3

035410516A
ref: 3

SCREW

€ 1.50

4

4753148G00
ref: 4

COVER,FRAME BODY LWR

€ 25.50

5

9447935F00
ref: 5

CLIP

€ 3.50

6

0932008028
ref: 6

CUSHION

€ 2.50

7

0925010015
ref: 7

PLUG(OD:33)

€ 2.00

8

0932008047
ref: 8

CUSHION

€ 4.00
