GEAR SHIFTING

VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

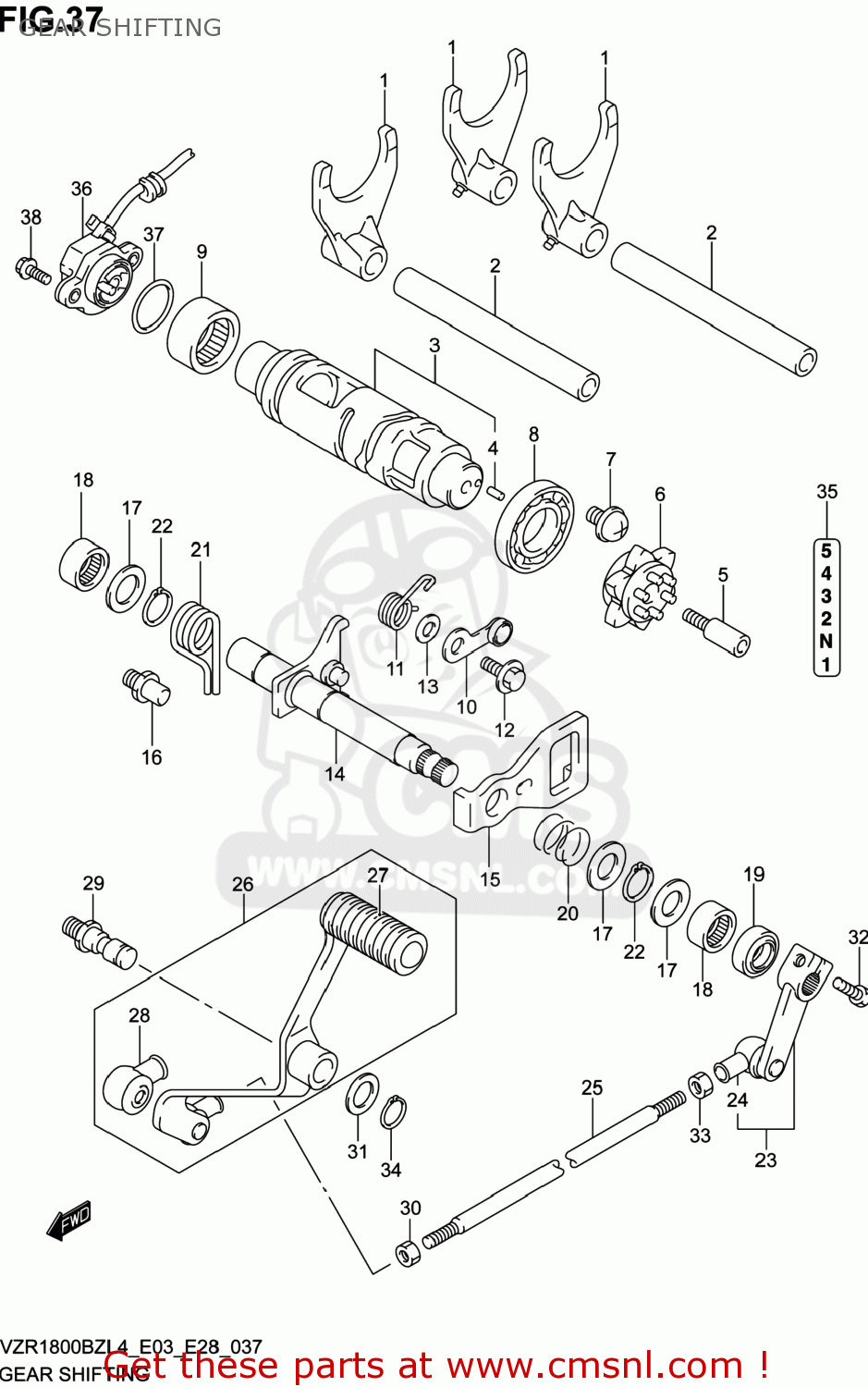

Gear shifting diagram VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

GEAR SHIFTING VZR1800BZ BOULEVARD 2014 (L4) USA (E03)
GEAR SHIFTING VZR1800BZ BOULEVARD 2014 (L4) USA (E03)
GEAR SHIFTING VZR1800BZ BOULEVARD 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
2521135F11
ref: 1
FORK,GEAR SHIFT NO.1
2521135F11
€ 72.50
2
2541148G00
ref: 2
SHAFT,GEAR SHIFT FORK
€ 19.00
3
2531048G00
ref: 3
CAM,GEAR SHIFT
€ 138.50
4
0422104089
ref: 4
PIN
0422104089
€ 1.50
5
2531242F01
ref: 5
BOLT,GEAR SHIFT CAM PLATE
2531242F01
€ 5.50
6
2538113E00
ref: 6
PLATE,GEAR SHIFT CAM
2538113E00
€ 30.00
7
0913606147
ref: 7
SCREW(6X12)
0913606147
€ 2.00
8
0926225006
ref: 8
BEARING(25X47X8)
0926225006
€ 24.00
9
0926325018
ref: 9
BEARING(25X32X12)
0926325018
€ 17.50
10
2535006G00
ref: 10
STOPPER,SHIFT CAM
2535006G00
€ 19.00
11
2535538F00
ref: 11
SPRING,GEAR SHIFT CAM STOPPER
2535538F00
€ 3.00
12
0911106041
ref: 12
BOLT(6X14.3)
0911106041
€ 3.00
13
0821106141
ref: 13
WASHER
0821106141
€ 2.50
14
2551048G00
ref: 14
SHAFT,GEAR SHIFT
€ 71.00
15
2551213E20
ref: 15
PLATE,GEAR SHIFT CAM DRIVE
2551213E20
€ 20.00
16
2567101011
ref: 16
STOPPER,GEAR SHIFT ARM
2567101011
€ 3.00
17
0918114167
ref: 17
SHIM(14X22X1)
0918114167
€ 3.50
18
0926314027
ref: 18
BEARING(14X20X12)
0926314027
€ 11.00
19
0928314005
ref: 19
SEAL,OIL(14X22X7.3)
€ 6.50
20
0944017009
ref: 20
SPRING
0944017009
€ 1.50
21
0944420001
ref: 21
SPRING
0944420001
€ 5.00
22
083313114A
ref: 22
CIRCLIP
083313114A
€ 2.00
23
2552048G00
ref: 23
ARM,GEAR SHIFT LINK
€ 39.00
24
2552647000
ref: 24
COVER,DUST
2552647000
€ 3.50
25
2552548G00
ref: 25
ROD,GEAR SHIFT LINK
2552548G00
€ 12.00
26
2560048G10
ref: 26
LEVER ASSY,GEAR SHIFT
€ 71.00
27
2565238B00
ref: 27
RUBBER,GEAR SHIFT PEDAL
2565238B00
€ 7.50
28
2552647000
ref: 28
COVER,DUST
2552647000
€ 3.50
29
2561703F10
ref: 29
SHAFT,GEAR SHIFT LEVER
2561703F10
€ 10.50
30
0914006025
ref: 30
NUT
0914006025
€ 2.00
31
0916012011
ref: 31
WASHER(12.5X20X1)
0916012011
€ 1.50
32
015470620A
ref: 32
BOLT
015470620A
€ 2.50
33
083100006A
ref: 33
NUT
083100006A
€ 2.00
34
083313112A
ref: 34
CIRCLIP
083313112A
€ 2.00
35
6839238B00
ref: 35
LABEL,GEAR SHIFT
€ 2.50
36
3773048G02
ref: 36
SENSOR ASSY,GEAR POSITION
€ 83.50
37
0928026005
ref: 37
O RING(D:2.4,ID:26.2)
0928026005
€ 2.50
38
0910605023
ref: 38
BOLT(5X16)
0910605023
€ 2.50
