REAR SWINGINGARM

VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

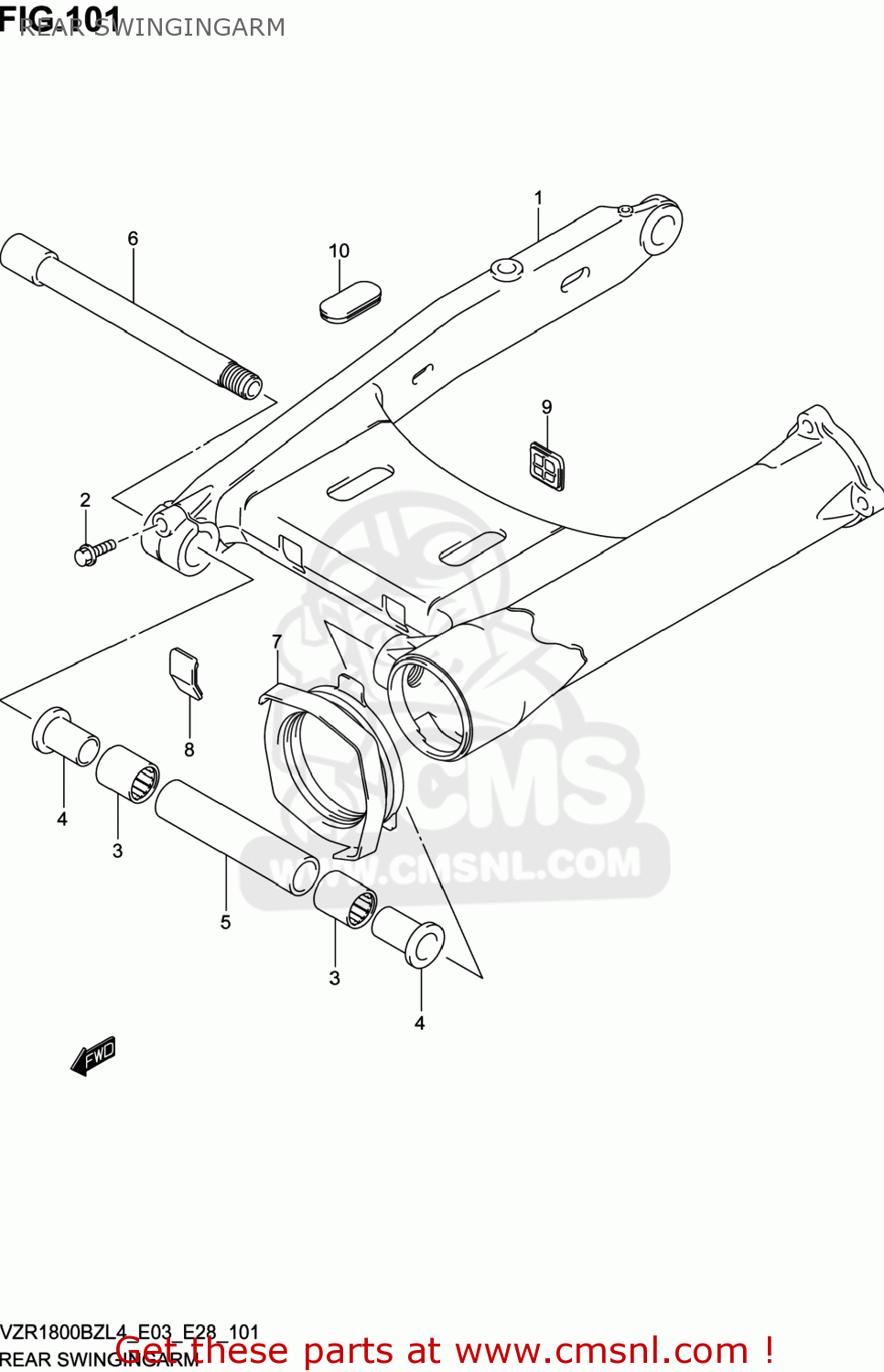

Rear swingingarm diagram VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

6111148G30019
ref: 1

SWINGINGARM,RR

€ 743.00

0910308071
ref: 2

BOLT(8X36)

€ 4.00

0926325059
ref: 3

BEARING(25X33X35)

€ 35.00

6125131E00
ref: 4

SPACER,RR SWGARM PIVOT BERRING

€ 16.00

6128048G01
ref: 5

SPACER,RR SWGARM PIVOT CTR

€ 20.50

6121148G00
ref: 6

SHAFT,RR SWINGINGARM PIVOT

€ 59.50

6137248G10
ref: 7

BOOT,PROPELLER SHAFT

€ 14.00

6116748G00
ref: 8

CAP,RR SWINGING ARM JOINT FR

€ 3.50

6116848G00
ref: 9

CAP,RR SWINGING ARM JOINT RR

€ 13.50

6116948G00
ref: 10

CAP,RR SWINGING ARM JOINT UPR

€ 3.50
