REAR FENDER EXTENSION

VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

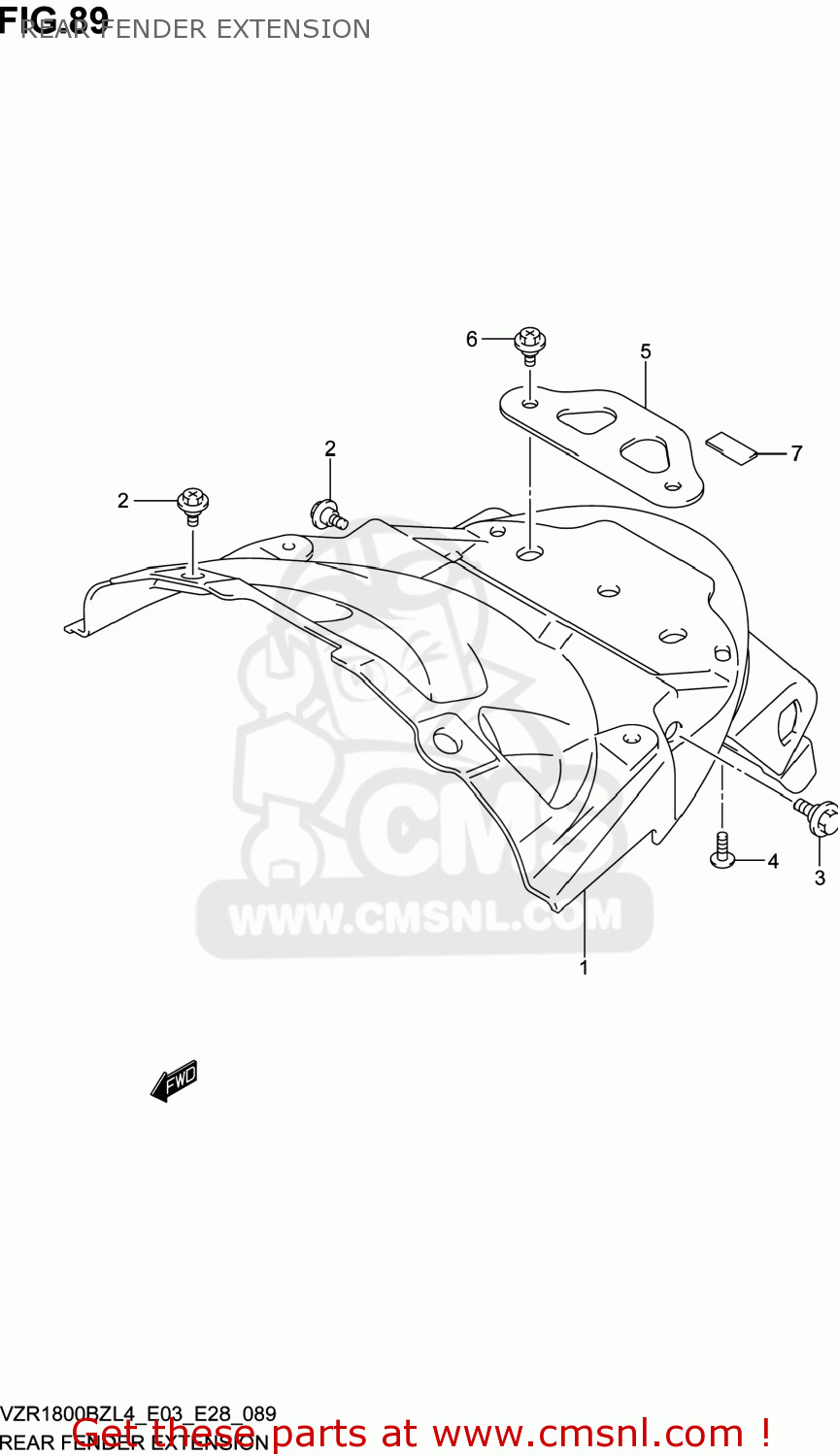

Rear fender extension diagram VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

REAR FENDER EXTENSION VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

REAR FENDER EXTENSION VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6331148G01
ref: 1

EXTENSION,RR FENDER

€ 99.00

2

6316143E10
ref: 2

BOLT

€ 2.50

3

0911106242
ref: 3

BOLT(6X16.5)

€ 2.50

4

021420516A
ref: 4

SCREW

€ 2.00

5

6312148G00
ref: 5

PLATE,RR FENDER EXTENSION

€ 6.50

6

0910306307
ref: 6

BOLT(6X10)

€ 2.50

7

6311348G00
ref: 7

CUSHION,RR FENDER EXT PLATE

€ 7.50
