TRANSMISSION (VZR1800BZL4 E28)

VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

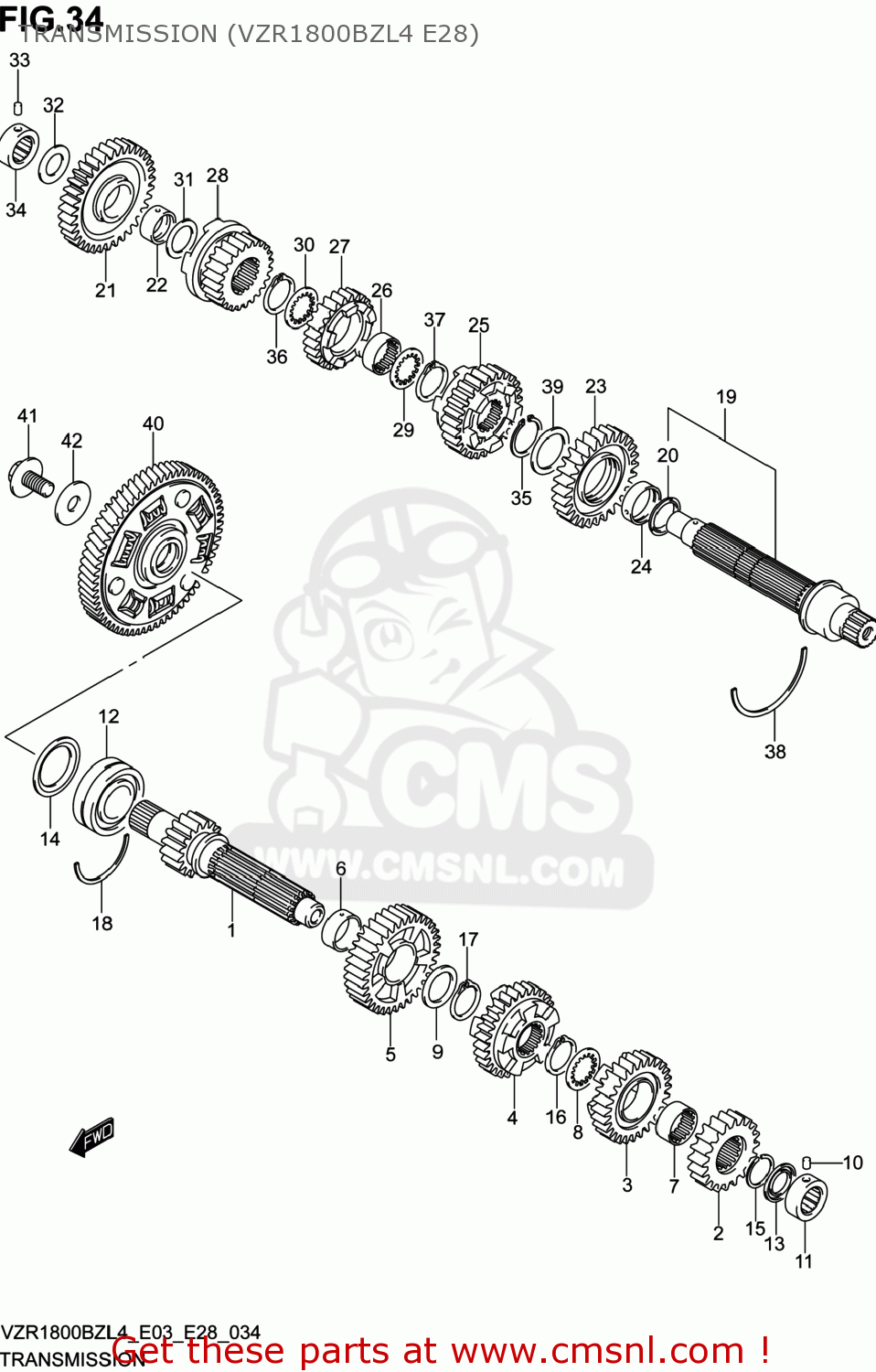

Transmission (vzr1800bzl4 e28) diagram VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

TRANSMISSION (VZR1800BZL4 E28) VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

TRANSMISSION (VZR1800BZL4 E28) VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

2412148G10
ref: 1

SHAFT,COUNTER

€ 212.50

2

2422148G00
ref: 2

GEAR,2ND DRIVE

€ 94.50

3

2423148G10
ref: 3

GEAR,3RD DRIVE

€ 108.00

4

2424148G10
ref: 4

GEAR,4TH DRIVE

€ 130.50

5

2425148G00
ref: 5

GEAR,5TH DRIVE

€ 126.50

6

2425224F10
ref: 6

BUSH,5TH DRIVE GEAR

€ 19.00

7

2426224F10
ref: 7

BUSH,6TH DRIVE GEAR

€ 19.00

8

0916727003
ref: 8

WASHER,LOCK

€ 5.00

9

0918127014
ref: 9

SHIM(27X36X2.5)

€ 6.00

10

0926106003
ref: 10

PIN(6X10)

€ 1.50

11

0926320087
ref: 11

BEARING(20X34X13.5)

€ 31.50

12

0926725012
ref: 12

BEARING(25X62X25.4)

€ 92.00

13

0928520006
ref: 13

SEAL,OIL(20X31.2X2.7)

€ 7.00

14

0928534011
ref: 14

SEAL,OIL(34X55.5X4)

€ 15.00

15

0938027004
ref: 15

CIRCLIP

€ 3.50

16

0938027006
ref: 16

CIRCLIP

€ 2.50

17

0938027006
ref: 17

CIRCLIP

€ 2.50

18

0939062012
ref: 18

C RING

€ 5.00

19

2413048G01
ref: 19

SHAFT,DRIVE

€ 220.50

20

2413648G01
ref: 20

RING,DRIVE SHAFT FRICTION

€ 26.00

21

2431148G00
ref: 21

GEAR,1ST DRIVEN

€ 129.50

22

2431224F10
ref: 22

BUSH,1ST DRIVEN GEAR

€ 19.00

23

2432148G10
ref: 23

GEAR,2ND DRIVEN

€ 130.50

24

2432248G00
ref: 24

BUSH,2ND DRIVEN GEAR

€ 18.00

25

2433148G10
ref: 25

GEAR,3RD DRIVEN

€ 139.00

26

2433224F10
ref: 26

BUSH,DRIVEN GEAR

€ 19.00

27

2434148G00
ref: 27

GEAR,4TH DRIVEN

€ 116.50

28

2435148G00
ref: 28

GEAR,5TH DRIVEN

€ 123.00

29

0916730008
ref: 29

WASHER,LOCK

€ 5.50

30

0916730008
ref: 30

WASHER,LOCK

€ 5.50

31

0918120251
ref: 31

SHIM(20X34X1)

€ 3.00

32

0918124005
ref: 32

SHIM(24X34X1)

€ 3.50

33

0926106003
ref: 33

PIN(6X10)

€ 1.50

34

0926320087
ref: 34

BEARING(20X34X13.5)

€ 31.50

35

0938030009
ref: 35

CIRCLIP

€ 3.50

36

0938030009
ref: 36

CIRCLIP

€ 3.50

37

0938030009
ref: 37

CIRCLIP

€ 3.50

38

0939080004
ref: 38

C RING

€ 7.00

39

0821130403
ref: 39

WASHER

€ 2.50

40

2120022830
ref: 40

GEAR ASSY,PRI DRIVEN

€ 365.50

41

0910312084
ref: 41

BOLT(12X24)

€ 5.50

42

0916012045
ref: 42

WASHER(12X35X2)

€ 3.50
