Buy Suzuki VZR Parts Online


REAR CUSHION LEVER (VZR1800BZL4 E28)

VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

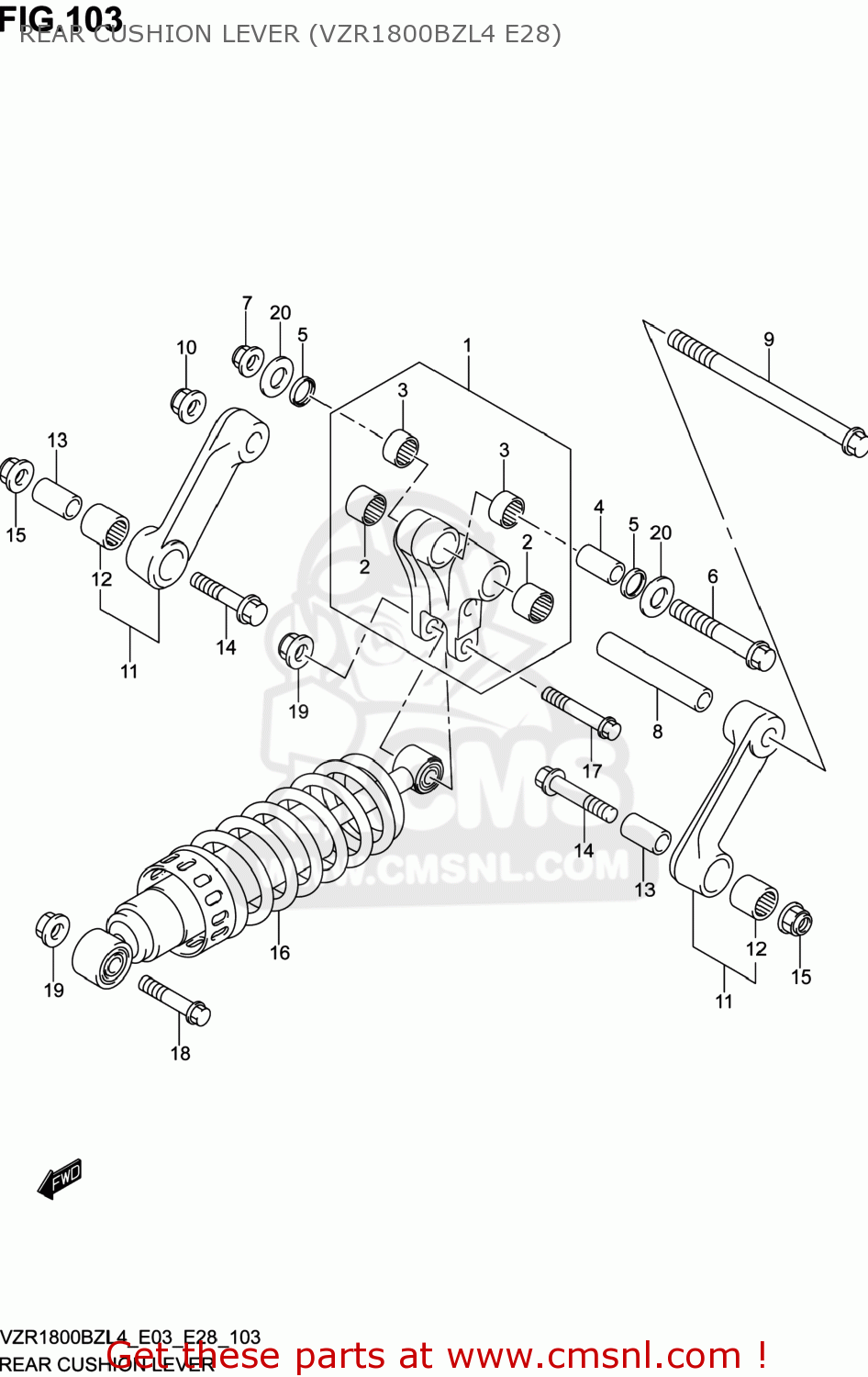

Rear cushion lever (vzr1800bzl4 e28) diagram VZR1800BZ BOULEVARD 2014 (L4) USA (E03)

REAR CUSHION LEVER (VZR1800BZL4 E28) VZR1800BZ BOULEVARD 2014 (L4) USA (E03)
REAR CUSHION LEVER (VZR1800BZL4 E28) VZR1800BZ BOULEVARD 2014 (L4) USA (E03)
REAR CUSHION LEVER (VZR1800BZL4 E28) VZR1800BZ BOULEVARD 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6260048870
ref: 1
LEVER SET,RR CUSHION
€ 245.00
2
0926320074
ref: 2
BEARING(20X27X32)
0926320074
€ 25.00
3
0926320090
ref: 3
BEARING(20X26X14)
0926320090
€ 14.50
4
6268448G00
ref: 4
SPACER,RR CUSHION LEVER UPPER
€ 13.50
5
0928420003
ref: 5
SEAL,OIL(20X26X4)
0928420003
€ 4.00
6
6265833D00
ref: 6
BOLT,RR CUSHION LEVER FR
€ 11.50
7
083193114A
ref: 7
NUT
083193114A
€ 9.00
8
0918014018
ref: 8
SPACER(14X20X102)
€ 20.00
9
6262148G00
ref: 9
BOLT,RR CUSHION LEVER LWR
€ 11.00
10
083193114A
ref: 10
NUT
083193114A
€ 9.00
11
6260048880
ref: 11
ROD SET,RR CUSHION
€ 89.00
12
0926320074
ref: 12
BEARING(20X27X32)
0926320074
€ 25.00
13
0918014014
ref: 13
SPACER(14X20X34)
0918014014
€ 11.50
14
0910314016
ref: 14
BOLT(14X66)
0910314016
€ 6.50
15
083193114A
ref: 15
NUT
083193114A
€ 9.00
16
6210048G40
ref: 16
ABSORBER ASSY,RR SHOCK
€ 540.00
17
6265801C60
ref: 17
BOLT,RR CUSHION LEVER FR
6265801C60
€ 6.00
18
0910312042
ref: 18
BOLT(12X57)
0910312042
€ 6.00
19
0915912056
ref: 19
NUT
0915912056
€ 7.00
20
0821114341
ref: 20
WASHER
0821114341
€ 3.00
