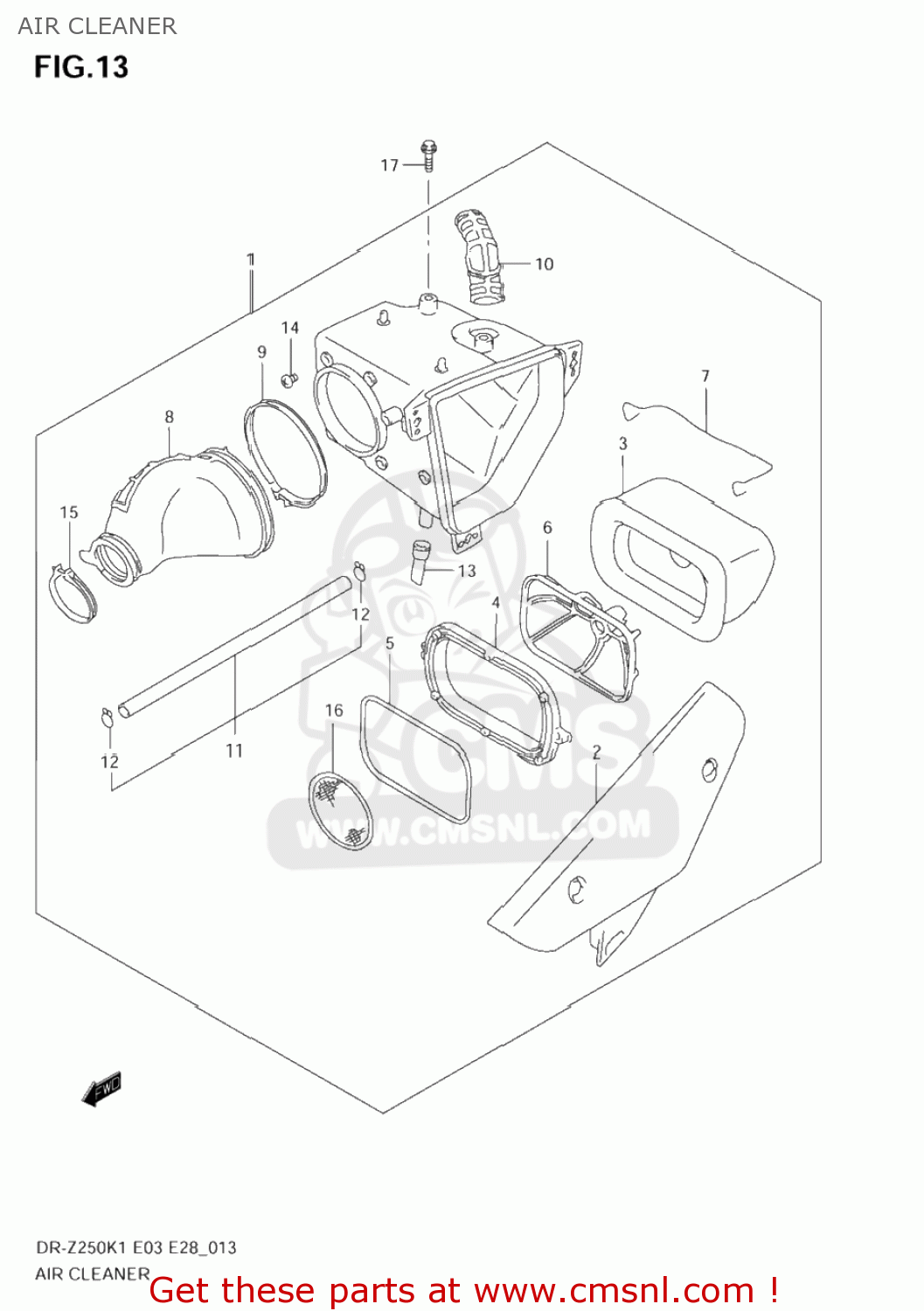

AIR CLEANER

ref

part #

description

quantity

1-1

1370013E30
ref: 1-1

CLEANER ASSY,AIR

€ 0.00

1-2

1370013E40
ref: 1-2

CLEANER ASSY,AIR

€ 0.00

1-3

1370013E3030H
ref: 1-3
13700-13E30

CLEANER ASSY, AIR

€ 0.00

1-4

1370013E4030H
ref: 1-4

CLEANER ASSY,AIR

€ 0.00

2-1

1374013E01YR1
ref: 2-1
13740-13E01-YU1

CAP, CLEANER

€ 89.50

2-2

1374013E00
ref: 2-2

CAP,CLEANER

€ 101.50

3

1378013E00
ref: 3

FILTER,CLEANER

€ 36.00

4

1379913E00
ref: 4

BASE,FILTER

€ 0.00

5

1379513E00
ref: 5

GASKET

€ 0.00

6

1379113E01
ref: 6

HOLDER,FILTER

€ 9.50

7

1382013E00
ref: 7

SPRING

€ 7.00

8-1

1388113E00
ref: 8-1

TUBE,OUTLET

€ 0.00

8-2

1388113E20
ref: 8-2

TUBE,OUTLET

€ 0.00

9

1382643B00
ref: 9

CLAMP

€ 7.50

10

1389113E30
ref: 10

TUBE,INLET

€ 0.00

11

1385013E30
ref: 11

TUBE,BREATHER

€ 0.00

12

0940114301
ref: 12

CLIP

€ 2.00

13

1368119B00
ref: 13

CAP,DRAIN

€ 3.00

14

0324205103
ref: 14
03241-0510A

SCREW

€ 2.50

15

0940256208
ref: 15
09402-56901

CLAMP

€ 3.50

16

1381014D02
ref: 16

TRAP,FRAME

€ 6.50

17

0158006123
ref: 17
01580-0612A

BOLT

€ 2.00

all assemblies
