REAR CALIPER

DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

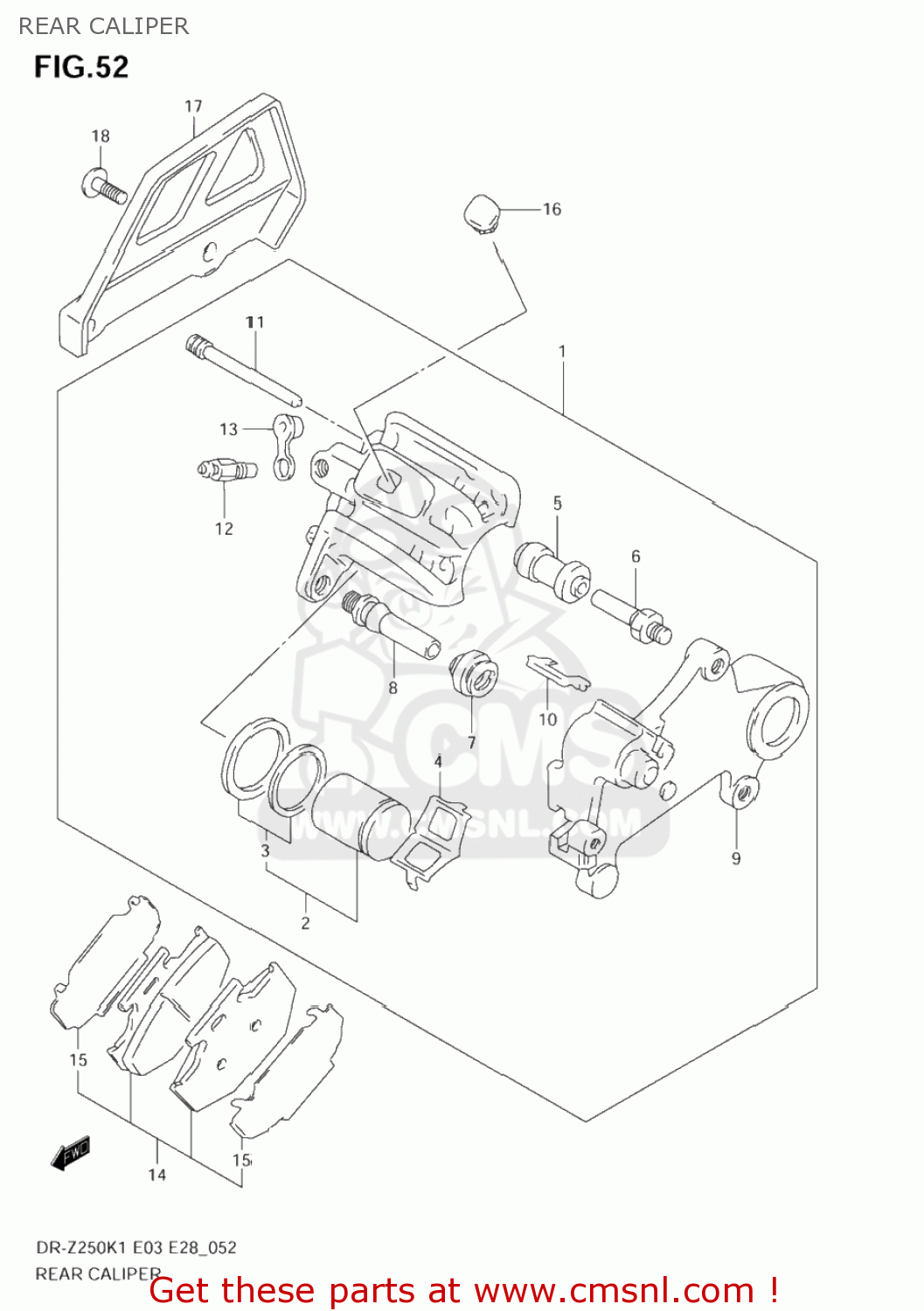

Rear caliper diagram DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

6910013E00999
ref: 1

CALIPER ASSY,RR

€ 134.50

6910003810
ref: 2

PISTON SET

€ 56.50

6910013810
ref: 3

SEAL SET,PISTON

€ 12.00

5931527C10
ref: 4

SPRING,PAD

€ 6.00

5938613A00
ref: 5

BOOT

€ 6.50

5938227C30
ref: 6

BOLT

€ 7.50

5930314500
ref: 7

BOOT

€ 5.50

5930527C00
ref: 8

PIN

€ 13.50

6935143D01
ref: 9

BRACKET

€ 113.50

6911343D00
ref: 10

RETAINER,BRACKET

€ 6.50

6934543D00
ref: 11

PIN,HANGER

€ 7.50

5912101A00
ref: 12

BLEEDER

€ 8.50

5912201A00
ref: 13

CAP,BLEEDER

€ 4.50

6910143810
ref: 14

PAD & SHIM SET (NAS)

€ 0.00

6913228C00
ref: 15

SHIM

€ 6.50

6917114D00
ref: 16

COVER,RR CALIPER BODY

€ 3.50

6970029810
ref: 17
69700-29811

GUARD SET,REAR CALIPER

€ 26.50

0214206123
ref: 18
02142-0612A

SCREW 6X12

€ 2.00
