CRANKSHAFT

DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

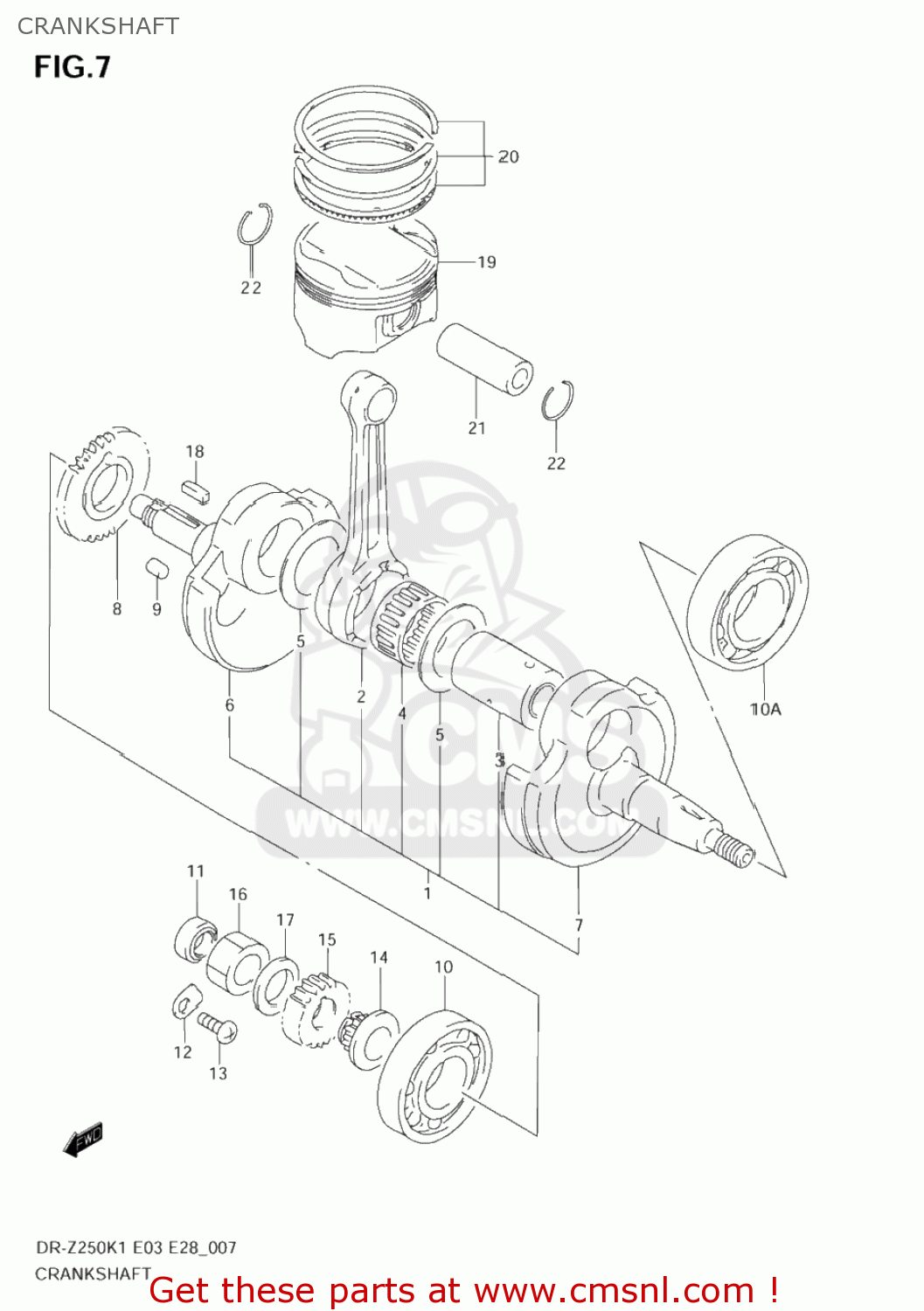

Crankshaft diagram DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250

CRANKSHAFT DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250
CRANKSHAFT DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250
CRANKSHAFT DR-Z250 2004 (K4) USA (E03) DRZ250 DR Z250
prices are in EUR
ref
part #
description
quantity
1
1220013E01
ref: 1
CRANKSHAFT ASSY
€ 0.00
2
1216113E00
ref: 2
CONNECTING ROD
€ 129.50
3
1221014D03
ref: 3
PIN,CRANK
1221014D03
€ 56.00
4
0926334007
ref: 4
BEARING(34X43X20)
€ 75.50
5
0916034003
ref: 5
WASHER(34X52X1)
0916034003
€ 6.50
6
1222113E00
ref: 6
CRANKSHAFT,R
€ 0.00
7-1
1226113E000B0
ref: 7-1
CRANKSHAFT, LH
€ 201.00
7-2
1226113E000A0
ref: 7-2
CRANKSHAFT,L
€ 201.00
8
1266113E00
ref: 8
GEAR,CRANK BALANCER DRIVE
€ 0.00
8
1266113E00
ref: 8
GEAR,CRANK BALANCER DRIVE
€ 0.00
9
0926108006
ref: 9
PIN(8X22.5)
€ 2.50
10
0926228014
ref: 10
BEARING(28X68X18)
0926228014
€ 40.00
10A
09262280310B0
ref: 10A
BEARING(28X68X18)
09262280310B0
€ 54.50
11
0928214003
ref: 11
SEAL,OIL(14X24X6)
0928214003
€ 8.00
12
2474218A00
ref: 12
RETAINER,BEARING
2474218A00
€ 2.00
13
0211206123
ref: 13
02112-0612A
SCREW
0211206123
€ 1.50
14
1273113E00
ref: 14
SPROCKET,CAM CHAIN DRIVE
€ 49.50
15
2111113E01
ref: 15
GEAR,PRIMARY DRIVE
€ 0.00
16
0914018004
ref: 16
NUT
0914018004
€ 3.00
17
0916418007
ref: 17
09164-18001
WASHER
0916418007
€ 3.00
18
0942105009
ref: 18
KEY
0942105009
€ 8.00
19
1211113E000F0
ref: 19
PISTON
1211113E000F0
€ 75.00
20
1214013E00
ref: 20
RING SET,PISTON
1214013E00
€ 79.00
21
1215117C00
ref: 21
PIN,PISTON
1215117C00
€ 15.50
22
0938119001
ref: 22
RING,SNAP
0938119001
€ 2.50
